DMG DMF 360

Photo Gallery

DMG - DMF 360IT-MIL-DMG-2011-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG DMF 360 For Sale | gindumac.com

Show in original language

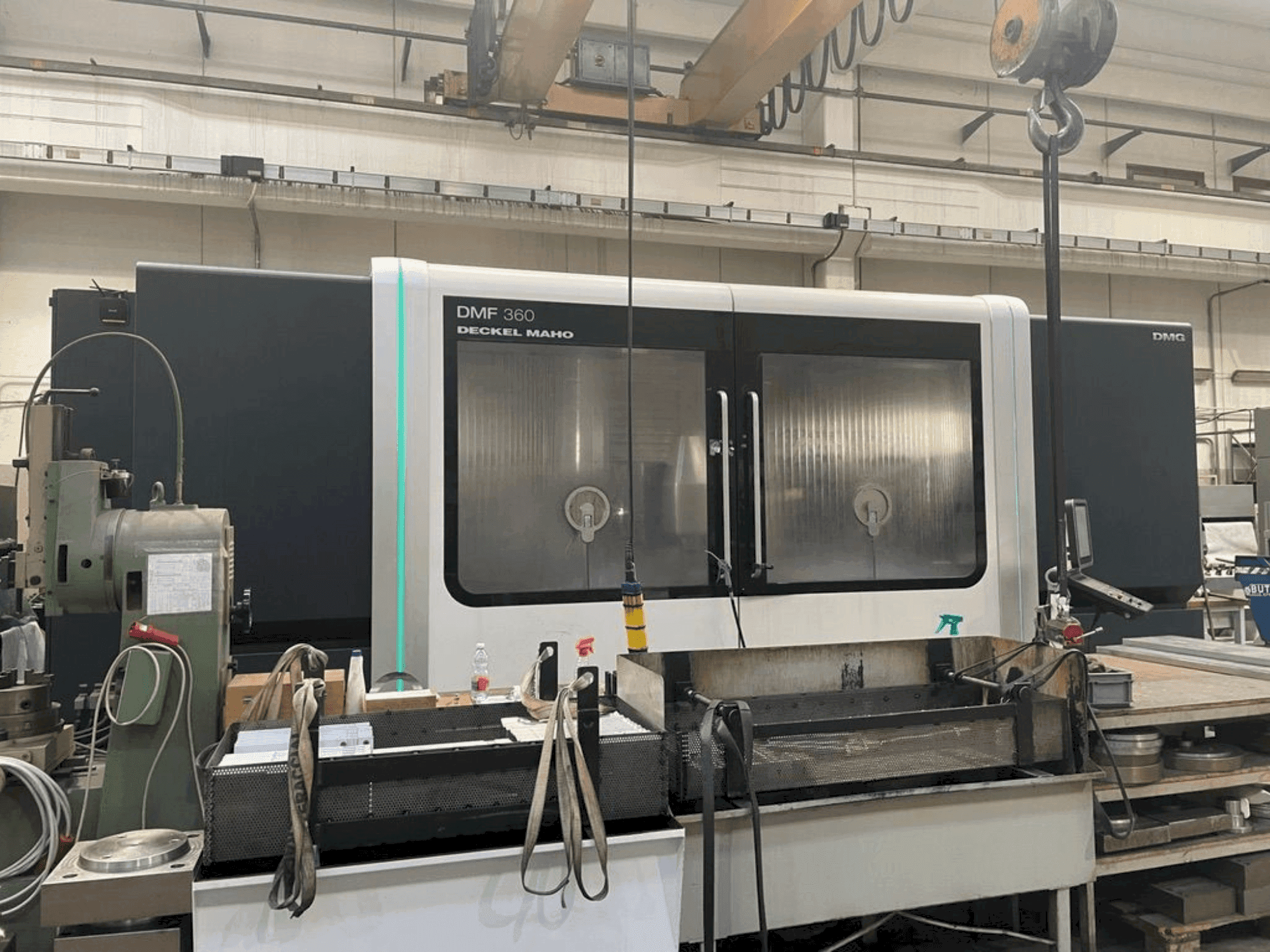

This 5-axis DMG DMF 360 was manufactured in 2011. It features a large table (4200 x 1100 mm), extensive travel (X: 3600 mm, Y: 1100 mm, Z: 900 mm), and a high-speed spindle at 15000 rpm. Equipped with a 60-position tool changer and a built-in rotary table (dia. 1050 mm), it's ideal for complex, multi-sided machining. If you are looking to get high-quality milling capabilities, consider the DMG DMF 360 machine we have for sale. Contact us for more information.

Overview

brand: DMG
year: 2011
MODEL: DMF 360
application type: Milling
Location: Italy
machine type: Universal Machining Centre

Technical Information - DMG DMF 360

Main drive

Spindle speed range: 15000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 3600 mm
Y-AXIS Movement: 1100 mm
Z-AXIS Movement: 900 mm

Additional Information

Additional equipment

Conveyor
Dividing wall for pendular job

Machine Benefits

Technical Machine Benefits

Dimensions: 4200 mm x 1100 mm
Built-in left side rotary table diameter: 1050 mm
Tool changer with 60 positions
High pressure: 80 bar
Through spindle coolant

Extra Information

Head movement: +/- 120 degrees in continuous Table: 4200 x 1100 mm HEIDENHAIN TNC 530 CONTINUOUS CONTROL FIXED TABLE WITH INTEGRATED ROTARY TABLE WORK AREA BULKHEAD B-AXIS MILLING HEAD 8,000 RPM SK 40 200 NM TS 649 PROBE 3D QUICKSET HIGH PRESSURE 40 BAR with 800 L TANK ELECTRONIC HANDWHEEL

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
