- ➤ Used DMG DECKEL MAHO DMU 70 EVO Linear | Machining

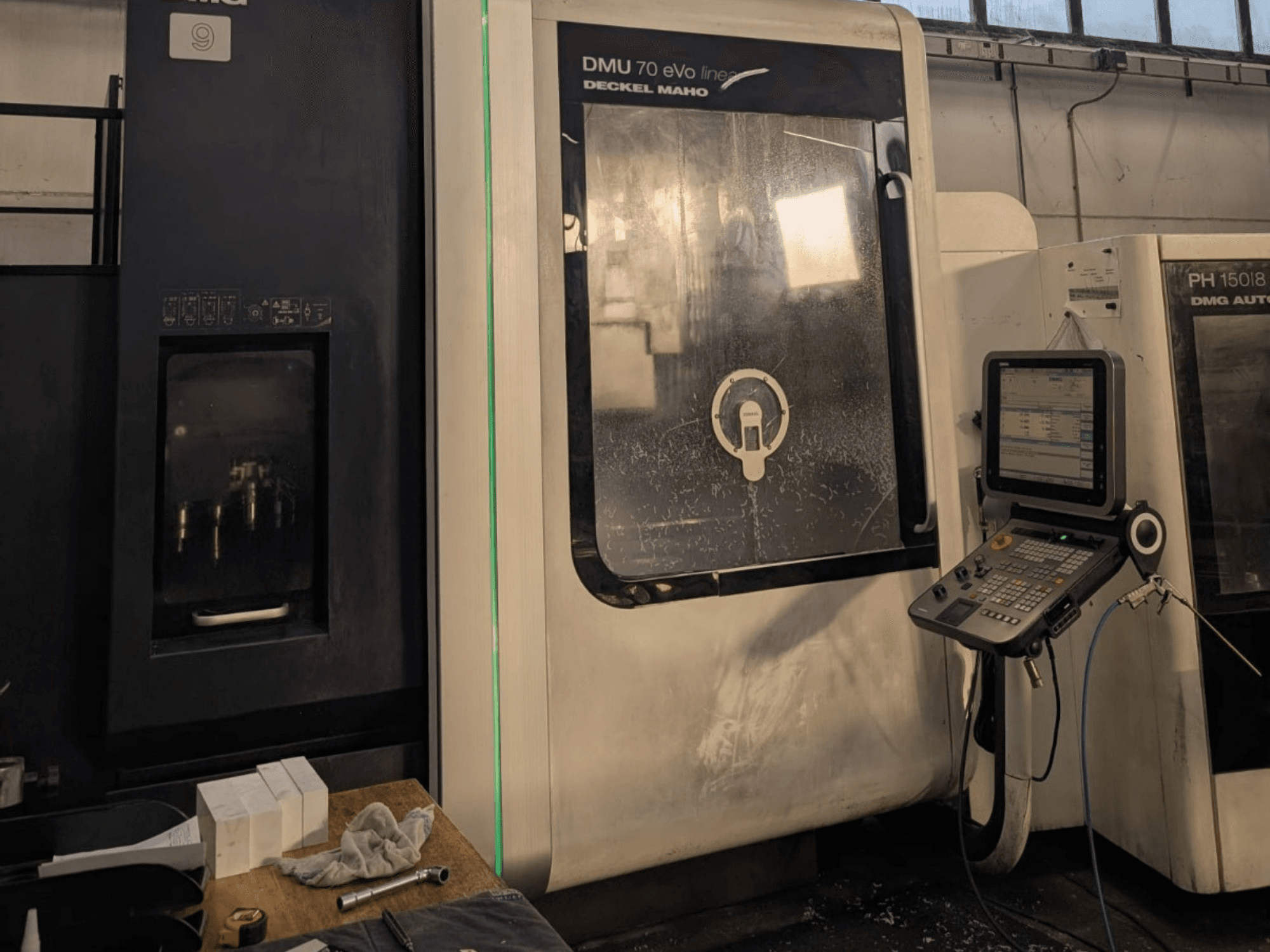

This 5-axis DMG DECKEL MAHO DMU 70 EVO Linear was manufactured in 2009. It features a working area with X-axis travel of 750 mm, Y-axis travel of 600 mm, and Z-axis travel of 520 mm. The machine is equipped with a high-speed spindle capable of reaching 24,000 rpm and a tool magazine with a capacity of 120 positions. It includes a DMG PH 150 L8 automation. If you are looking to get high-quality machining capabilities, consider the DMG DECKEL MAHO DMU 70 EVO Linear machine we have for sale. Contact us for further details.
Overview
- brand: DMG DECKEL MAHO
- year: 2009
- MODEL: DMU 70 EVO Linear
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - DMG DECKEL MAHO DMU 70 EVO Linear
Control Unit
- Control Brand: SIEMENS
Movement
- Number of Axes: 5
- X-axis Travel: 750 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 520 mm
Technical Specification
- Spindle Power: 35 kW
- Spindle Speed: 24000 RPM
- Taper Size: HSK 63
Additional Information
Feed rates: linear 20,000 mm/min; rapid traverse 50,000 mm/min
Table: clamping surface 700 × 500 mm
Tool magazine: 120 positions
Through-spindle coolant: high-pressure 40 bar
Documentation: instruction manuals and CE declaration
Additional equipment
Coolant tank with paper filter, 600 L
Measuring probe
Chip conveyor
Electronic handwheel (remote)
Pallet changer system DMG PH 150 L8, 8 stations (pallets not included)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
