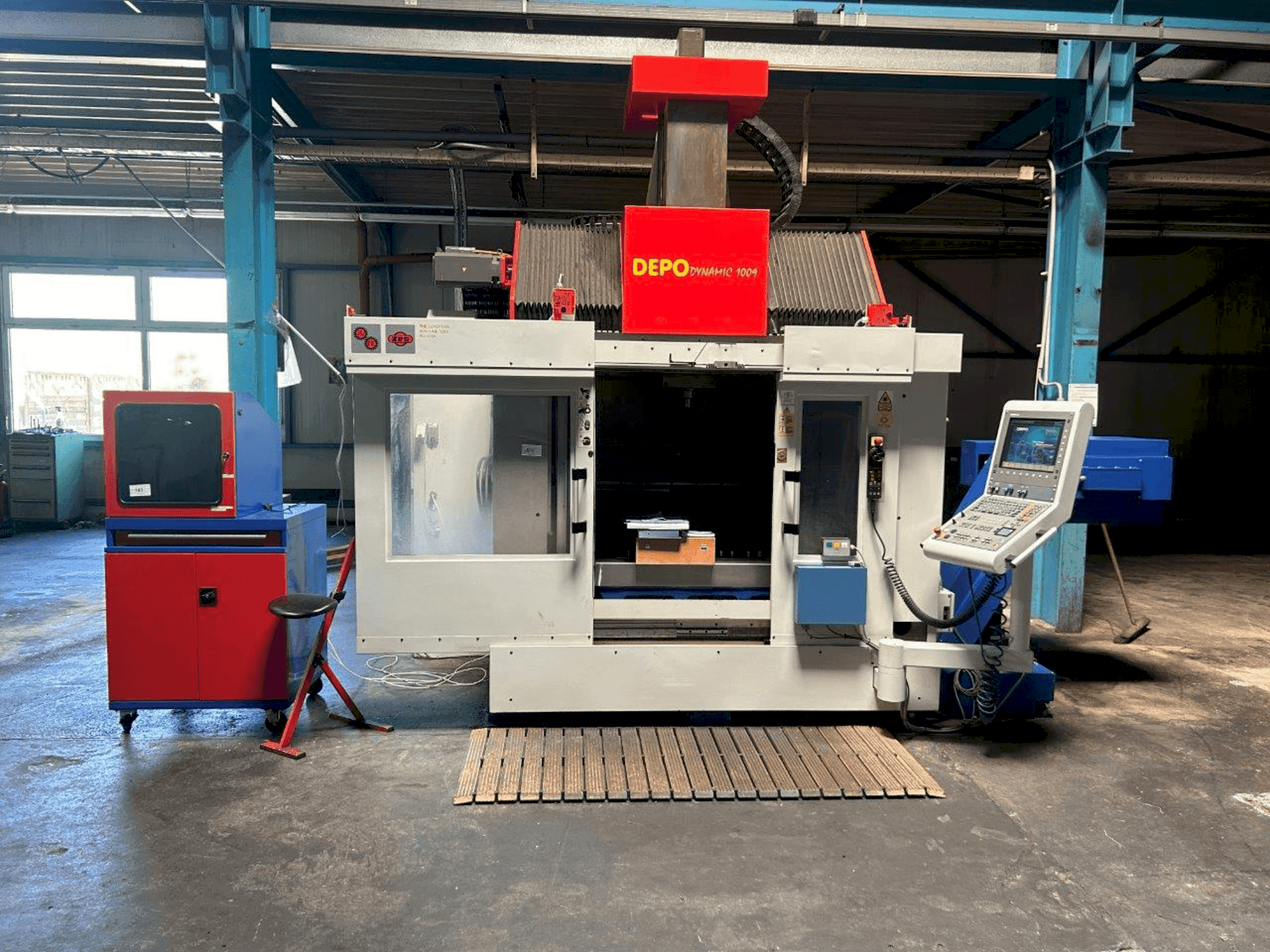

Front view of DEPO Dynamic 1009  machine

DEPO - Dynamic 1009DE-MIL-DEP-2011-00001

Rs. 9,094,250
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis DEPO Dynamic 1009 milling machine was manufactured in 2011. It features a Heidenhain TNC 530 control, with x-travel of 1000 mm, y-travel of 800 mm, and z-travel of 900 mm. Spindle hours total 17,491, and power on hours are 45,449. A robust choice for precision milling, buy this DEPO Dynamic 1009 milling machine. For more information about this milling machine, please reach out to us.

Overview

  • brand: DEPO
  • year: 2011
  • MODEL: Dynamic 1009
  • production hours: 17491
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: Heidenhain

Technical Information - DEPO Dynamic 1009

General Data

  • Measurements width: 2200mm
  • Measurements depth: 3000mm
  • Measurements height: 3000mm
  • Machine weight: 11500kg

Control Unit

  • Brand: Heidenhain
  • Model: TNC 530

Main drive

  • Number of axis: 3

Movement

  • X-AXIS Movement: 1000 MM
  • Y-AXIS Movement: 800 MM
  • Z-AXIS Movement: 600 MM

Media

  • Chip conveyor: Yes

    Additional equipment

    • - Programmlauf: 17.491 Std.

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - X-travel of 1000 mm cross support / y-travel of 800 mm cross beam / z-travel of 600 mm vertical slide spindle face from table: 150 - 750 mm work table from floor: 750 mm
        • - Work feeds: 20 m/min / rapid traverse: 40 m/min / work table: 1,200 x 1,000 mm / max. Load: 3,000 kg
        • - Electrospindle type white 176 024_800 / mounting cone: hsk-a 63
        • - Number of tools in a magazine: 30 tool change time (tool - tool): 4. 5 s max. Tool length: 250 mm max. Tool weight incl. Holder: 6. 5 kg max. Weight of all tools incl. Holder: 195 kg transport dimensions of the machine:
        • - Lxwxh 3,000 x 2,200 x 3,000 mm (with z-axis console removed) weight of the machine incl. Tool magazine: 11,500 kg
        • - Control on: 46. 337 hours / machine on: 45. 449 hours. / programme run: 17,491 hours

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
