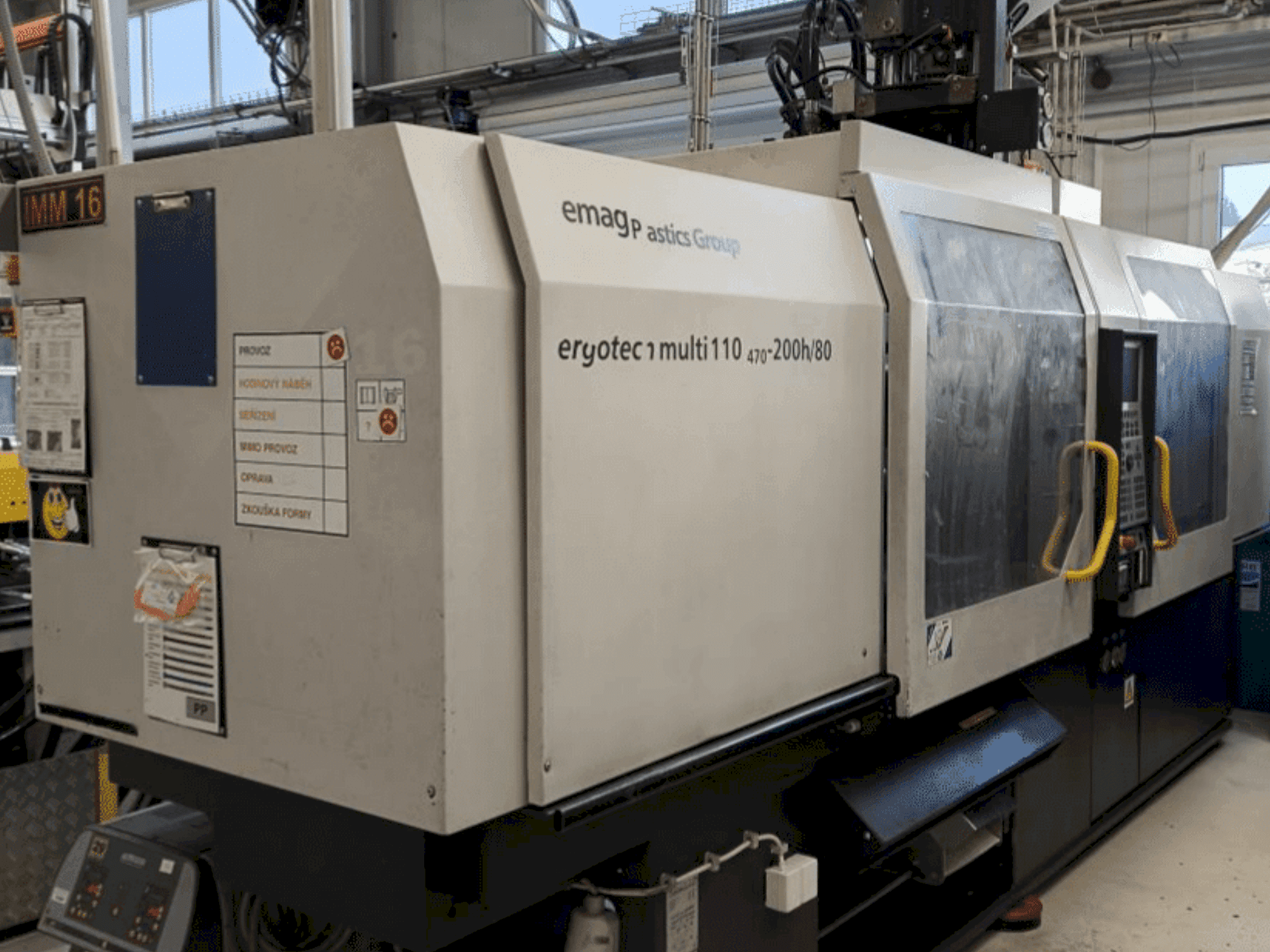

Front view of DEMAG ERGOtech multi 110-470 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DEMAG ERGOtech multi 110-470

Photo Gallery

DEMAG - ERGOtech multi 110-470CH-INJ-DEM-2004-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used DEMAG ERGOtech multi 110-470 | Injection Moulding

Show in original language

This DEMAG ERGOtech multi 110-470 hydraulic injection moulding machine was manufactured in 2004. It is a robust and reliable choice for your production needs. Consider the opportunity to buy this DEMAG ERGOtech multi 110-470 hydraulic injection moulding machine. Contact us for more information.

Overview

brand: DEMAG
year: 2004
MODEL: ERGOtech multi 110-470
application type: Injection Moulding
Location: Switzerland
machine type: Hydraulic Injection Moulding Machine

Technical Information - DEMAG ERGOtech multi 110-470

Clamping unit

Clamping force: 1100 KN
Opening stroke: 600 mm
Mould height max: 1500 kg
Size of mold platens: 670x670 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Standard: min. 250 mm, max. 850 mm
Enlarged: min. 350 mm, max. 950 mm
Mould weight on the moving mould mounting platen: 1000 kg
Clear column spacing: 470x470 mm

Extra Information

Injection Unit Horizontal Injection Unit: Plasticising Cylinder A: Screw diameter: 25 mm L/D ratio: 20 Specific injection pressure: 2740 bar Stroke volume: 61.3 mm Injection moulding quantity (PS): 54 g Max. dosage stroke: 125 mm Plasticising Cylinder B: Screw diameter: 30 mm L/D ratio: 20 Specific injection pressure: 1900 bar Stroke volume: 106.0 mm Injection quantity (PS): 94 g Max. dosing stroke: 150 mm Plasticising Cylinder C: Screw diameter: 35 mm L/D ratio: 20 Specific injection pressure: 1400 bar Stroke volume: 144.2 mm Injection moulding quantity (PS): 128 g Max. dosing stroke: 150 mm Vertical Injection Unit: Plasticising Cylinder A: Screw diameter: 18 mm L/D ratio: 20 Specific injection pressure: 2400 bar Stroke volume: 22.8 mm Injection moulding quantity (PS): 20 g Max. dosing stroke: 90 mm Plasticising Cylinder B: Screw diameter: 22 mm L/D ratio: 20 Specific injection pressure: 2060 bar Stroke volume: 41.8 mm Injection moulding quantity (PS): 37 g Max. metering stroke: 110 mm Previous material use: POM / PA6 / PP / TPE

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
