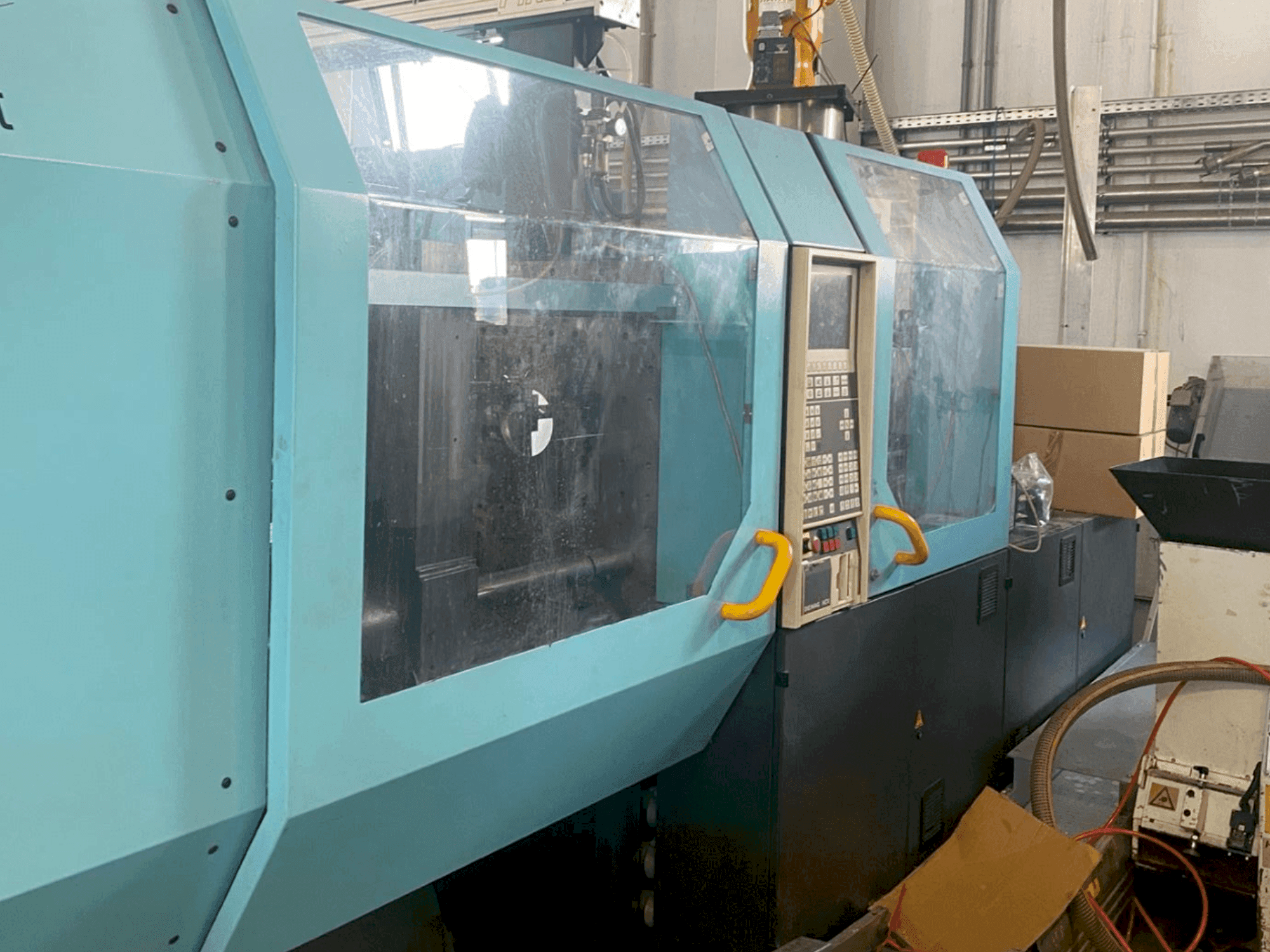

Front view of DEMAG Ergotech Compact 1500-610 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DEMAG Ergotech Compact 1500-610

Photo Gallery

DEMAG - Ergotech Compact 1500-610CH-INJ-DEM-1999-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used DEMAG Ergotech Compact 1500-610 For Sale

Show in original language

This DEMAG Ergotech Compact 1500-610 was manufactured in 1999. It features a clamping force of 1500 kN, a screw diameter of 45 mm, and a shot weight of 290 g. The machine dimensions are 5200 mm in length, 1600 mm in width, and 2100 mm in height, weighing approximately 7.4 tons. A solid choice for precision in injection moulding. For more information about this hydraulic injection moulding machine, please reach out to us.

Overview

brand: DEMAG
year: 1999
MODEL: Ergotech Compact 1500-610
application type: Injection Moulding
Location: Switzerland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - DEMAG Ergotech Compact 1500-610

General Data

Measurements width: 1600 mm
Measurements depth: 5200 mm
Measurements height: 2100 mm
Machine weight: 7400 kg

Injection Unit

Screw diameter: 45 mm
Shot weight: 290 g
Stroke volume: 323 cm³
Injection pressure: 1973 bar
Heating capacity: 13.0 kW
Nozzle pressure: 80 kN

Clamping unit

Clamping force: 1500 kN
Opening stroke: 500 mm
Max open daylight: 1060 mm
Distance between bars: 500 x 500 mm
Mould height min: 250 mm
Mould height max: 560 mm
Size of mold platens: 750 x 750 mm
Ejector stroke: 160 mm
Ejector force for / back: 58 kN

Additional equipment

- Holding force: 1650 kN
- Maximum mold weight: 1700 kg
- Maximum mold weight on moving platen: 1150 kg
- Maximum retraction force: 26 kN
- Core pull: 0 units
- Screw L/D ratio: 20
- Maximum nozzle stroke: 350 mm
- Nozzle immersion depth (SVO): 40 mm
- Material hopper capacity: 70 liters

Additional Information

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
