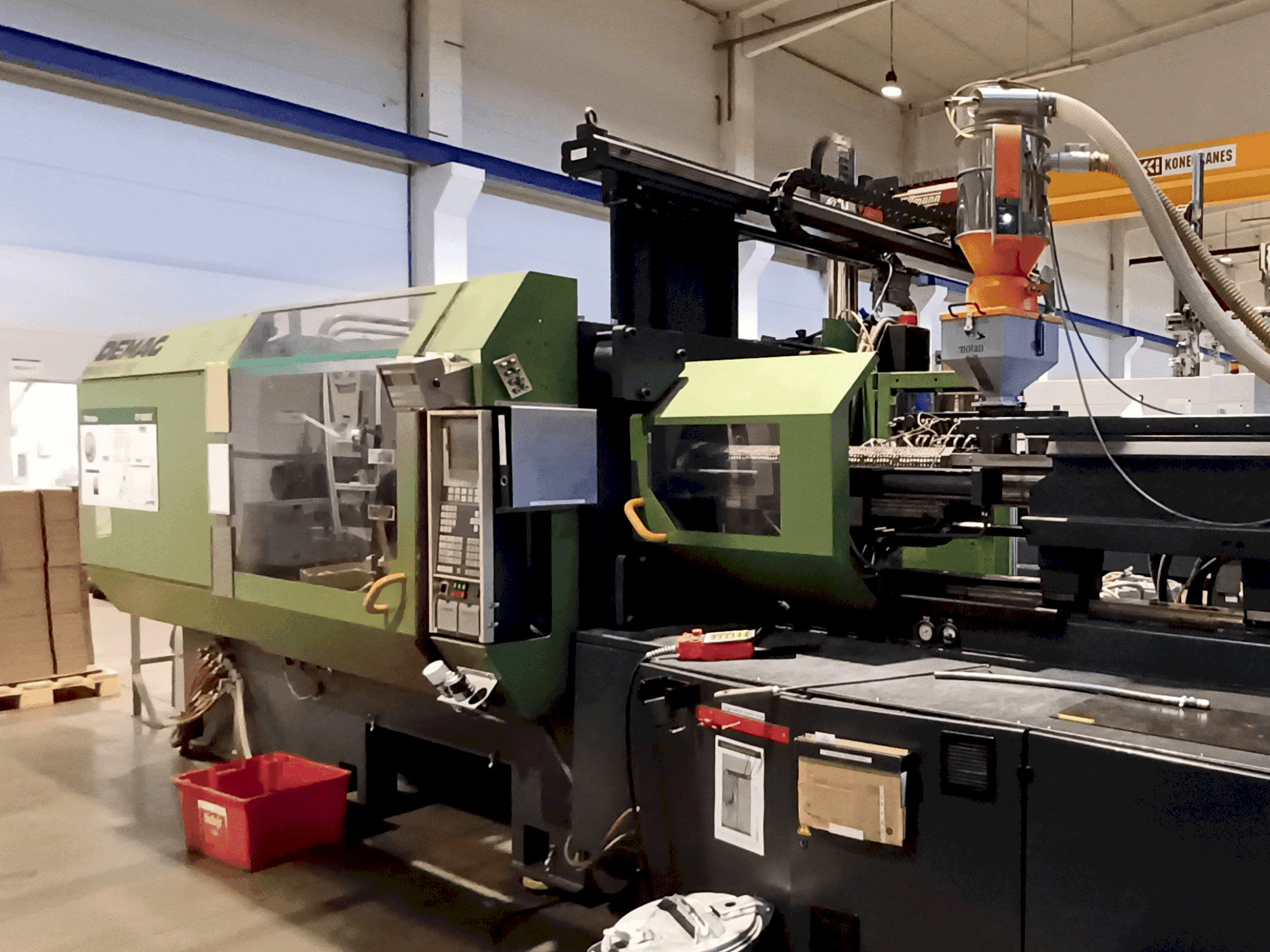

Front view of DEMAG ERGOTECH 4200-2300  machine

DEMAG ERGOTECH 4200-2300

DEMAG - ERGOTECH 4200-2300

1995

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DEMAG ERGOTECH 4200-2300 Injection Moulding Machine was built in the year 1995 and has 25000 production hours. It is equipped with a Wittmann handling. The machine has a clamping force of 4200 kN and a screw diameter of 70 mm. It comes with 2 core pullers.

Overview

  • brand: DEMAG
  • year: 1995
  • MODEL: ERGOTECH 4200-2300
  • production hours: 25000
  • application type: Injection Moulding
  • Location: Hungary
  • machine type: Injection Moulding Machine
  • availability: Sold
  • GINDUMAC ID: HU-INJ-DEM-1995-00001

Technical Information

General Data

  • Machine weight: 5100 kg

Injection Unit

  • Screw diameter: 70 mm
  • Shot weight: 1090 g (PS)
  • Stroke volume: 1212 ccm CM³
  • Injection pressure: 1877 bar
  • Plasticizing rate max.: 59 g/s
  • Screw speed: 182 rpm
  • Heating capacity: 45 kW (Pump), 27 kW (installed heating)

Clamping unit

  • Clamping force: 4200 kN
  • Opening stroke: 710 mm
  • Max open daylight: 800 mm
  • Distance between bars: 1530 mm
  • Mould height min: 380 mm
  • Mould height max: 820 mm
  • Size of mold platens: 1200 x 1100 mm

    Additional equipment

    • - Wittmann Handling W322-310 CNC (X = 800 mm / Y = 1600 mm / Z = 2500 mm)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Closing nozzle (hydr. /pneum. ): 2/1
        • - Core pull control, 2 core pulls (as)
        • - Tool weight: ds (kg) 1700 // as (kg) 3400
        • - L/d ratio: 20
        • - Nozzle radius (mm): 15
        • - Nozzle bore (mm): 4
        • - Injection flow ps (g): 330
        • - Dosing max. (mm): 620
        • - Centring ring ds160, as200

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
