DEMAG - Ergotech 350/710-2300DE-INJ-DEM-2001-00007
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used DEMAG Ergotech 350/710-2300 For Sale | gindumac.com

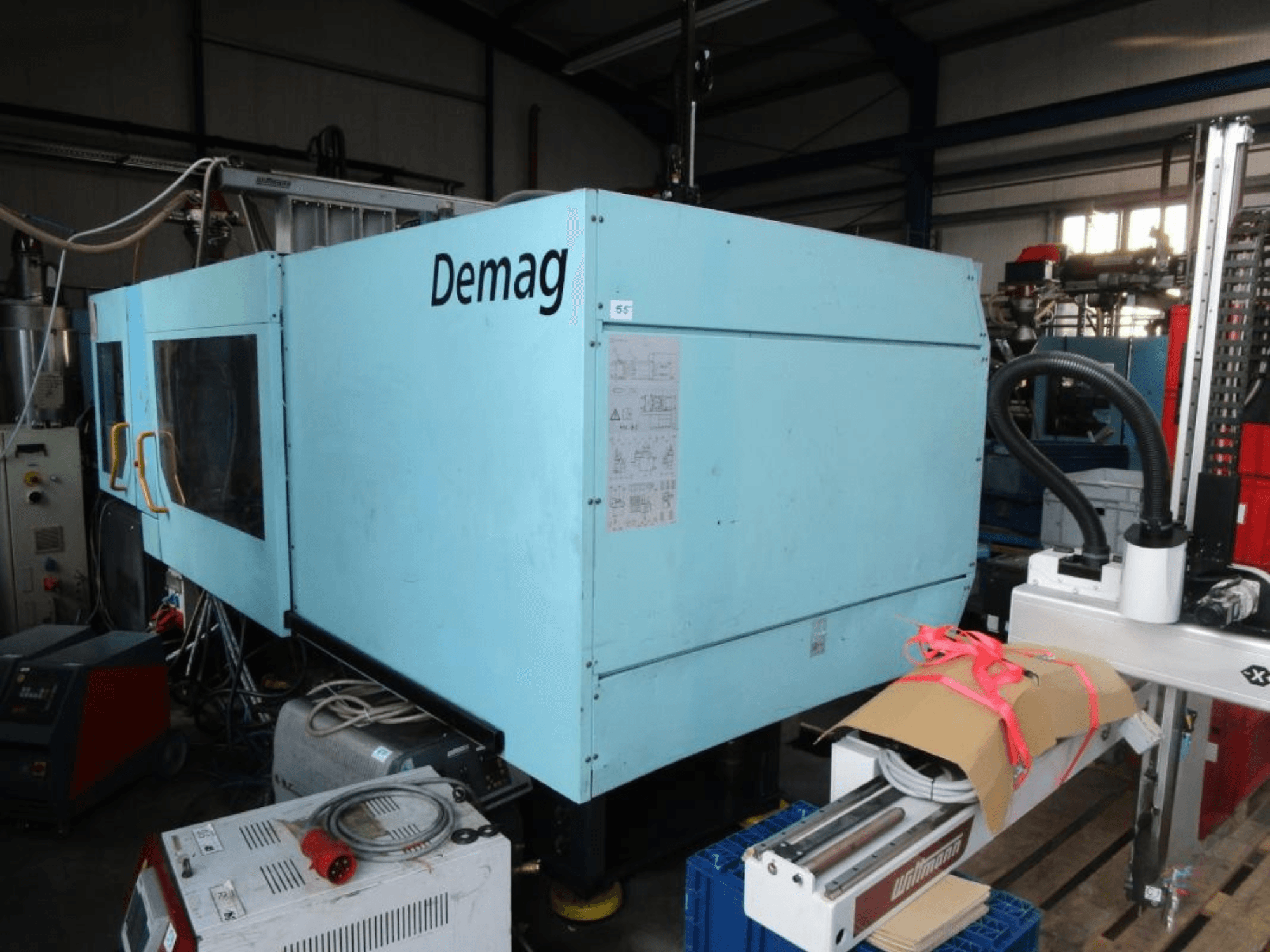

This 3-axis DEMAG Ergotech 350/710-2300 was manufactured in 2001. It features a screw diameter of 70 mm and a maximum daylight of 1,080 mm. The machine includes a handling system with a Wittmann Linear Robot and a granule feeder. If you are looking to get high-quality injection moulding capabilities, consider the DEMAG Ergotech 350/710-2300 hydraulic injection moulding machine we have for sale. Contact us for further details.
Overview
- brand: DEMAG
- year: 2001
- MODEL: Ergotech 350/710-2300
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - DEMAG Ergotech 350/710-2300
Technical Specification
- Clamping Force: 3500 kN
- Max. Shot Weight: 800 g
- Screw Diameter: 70 mm
Additional Information
Distance between tie bars: 710 mm
Min. mould installation height: 330 mm
Max. daylight (distance between platens): 1,080 mm
Centering ring: 160 mm
Core pull: 2-circuit core pull control (+1 extra core pull mentioned)
Control system: Demag NC4
Additional equipment
Handling unit: Wittmann linear robot
Granule feeder: Wittmann VITMAX A308 DPV-40 (24 V, 1 A, 11.5 kW), year 2008
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
