SUMITOMO SHI DEMAG - Ergotech 200-840 CompactIE-INJ-DEM-1997-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- DEMAG Ergotech 200-840 Compact Injection Moulding Machine

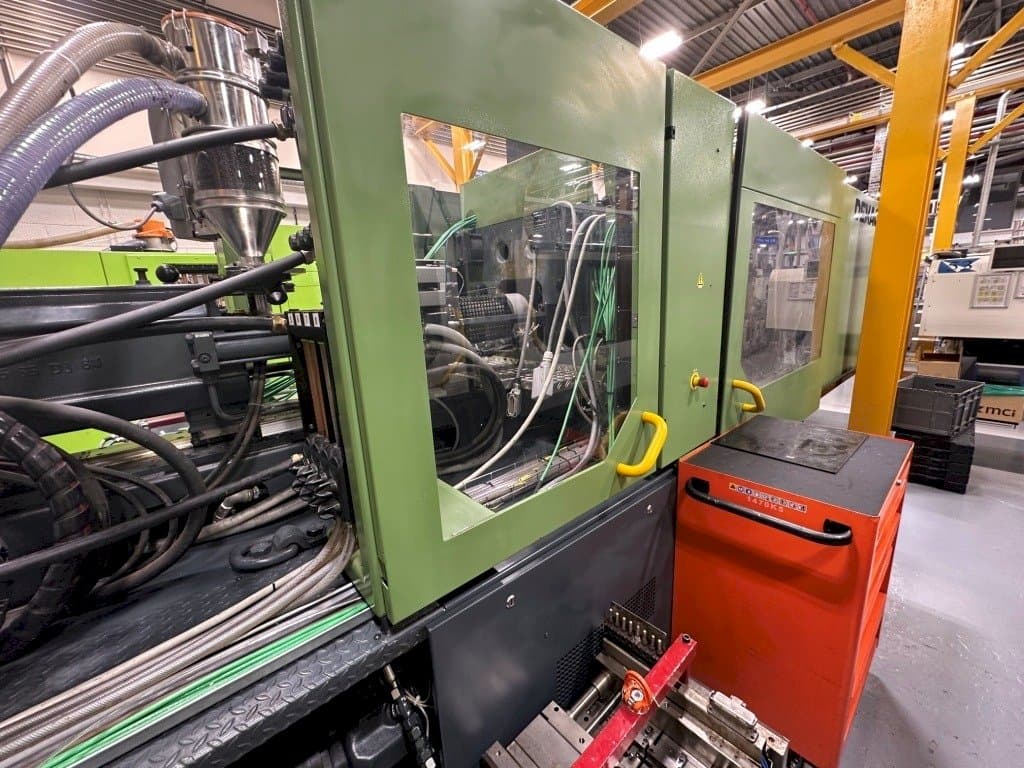

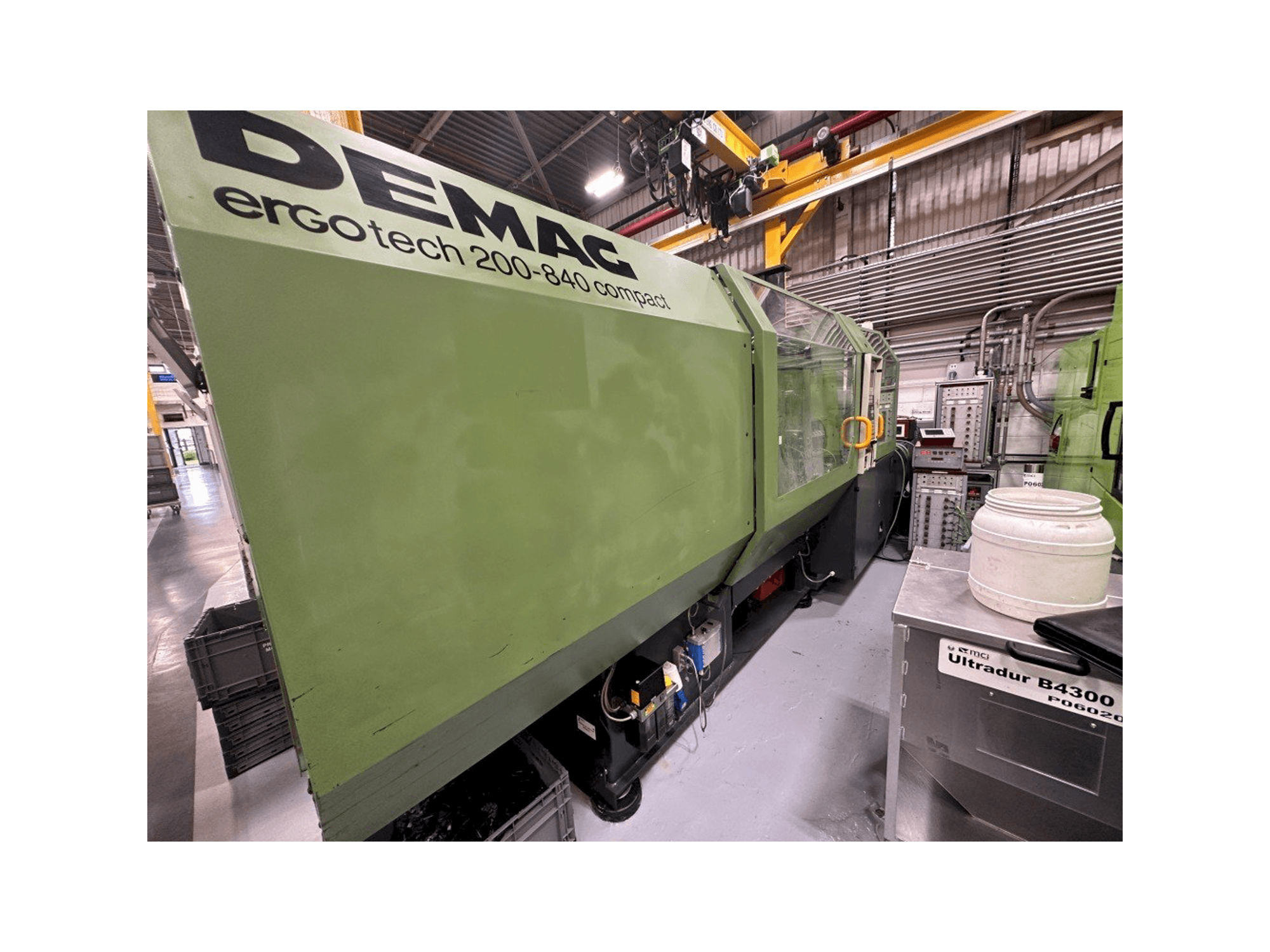

This DEMAG Ergotech 200-840 Compact Injection Moulding Machine was made in 1997 in Germany and has 123000 hours. It is equipped with a Demag NC4 control unit. The machine has a clamping force of 2000 kN, a screw diameter of 45 mm and it is in very good condition.
Overview
- brand: SUMITOMO SHI DEMAG
- year: 1997
- MODEL: Ergotech 200-840 Compact
- production hours: 123000
- application type: Injection Moulding
- Location: Ireland
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - SUMITOMO SHI DEMAG Ergotech 200-840 Compact
General Data
- Measurements width: 5700 mm
- Measurements depth: 1700 mm
- Measurements height: 2100 mm
- Machine weight: 10000 kg
Control Unit
- Model: NC4
- CNC main language: English
- CNC language customizable: Yes
Injection Unit
- Screw diameter: 45 mm
- Shot weight: 326 g/ps
- Stroke volume: 358 CM³
- Injection pressure: 2400 bar
Clamping unit
- Clamping force: 2000 kn
- Opening stroke: 575 mm
- Max open daylight: 1235 mm
- Distance between bars: 560 mm
- Mould height min: 310 mm
- Size of mold platens: 830 mm
- Ejector stroke: 180 mm
- Ejector force for / back: 69 kn
Media
- Main electronic connection: 400 V
Additional equipment
- - Conveyor
Additional Information
- Material type: Plastic
- End product: Automotive parts
- Industries: Automotive industry
- Technical Machine Benefits:
- - 200t machine
- Qualitative Machine Benefits:
- - Very good condition
- - Well maintained
- - Hopper and Kistler Unit in photos not included in sale
Machine history
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
