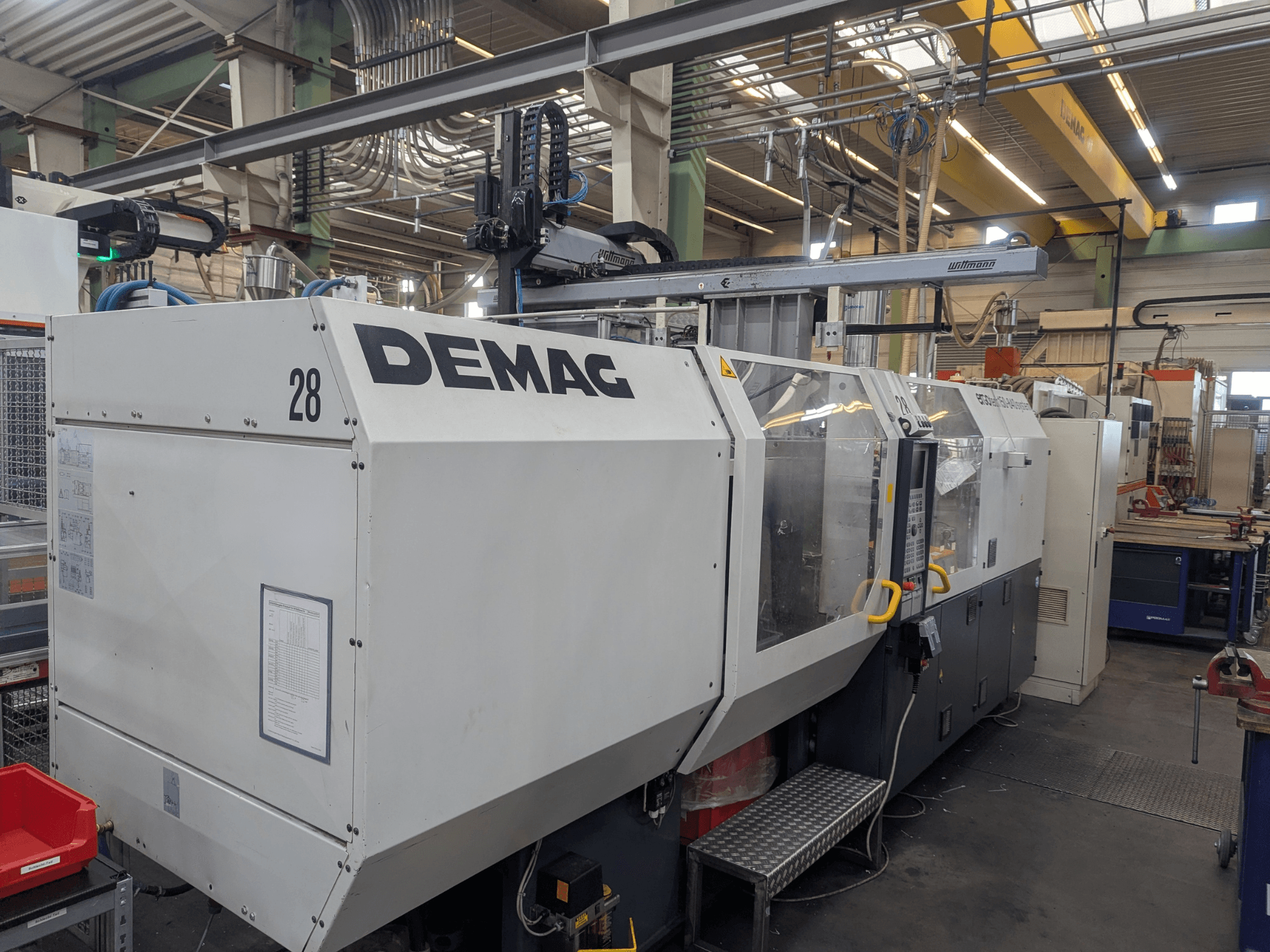

Front view of a DEMAG ERGOTECH 1500-840 hydraulic injection moulding machine, showcasing operational controls and safety features.
Front view of a DEMAG ERGOTECH 1500-840 hydraulic injection moulding machine, showcasing operational controls and safety features.

DEMAG - ERGOTECH 1500-840DE-INJ-DEM-1999-00010

Rs. 863,724
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis DEMAG ERGOTECH 1500-840 was manufactured in 1999. It features a clamping force of 1500 kN and a screw diameter of 45 mm, making it suitable for processing various materials such as PA, PP, PE, and ABS. The machine has a maximum pressure of 190 bar and a stroke volume of 358 cm³. If you are looking to get high-quality injection moulding capabilities, consider the DEMAG ERGOTECH 1500-840 hydraulic injection moulding machine we have for sale. Contact us for further details.

Overview

  • brand: DEMAG
  • year: 1999
  • MODEL: ERGOTECH 1500-840
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Hydraulic Injection Moulding Machine
  • Available from: 15/06/2026

Technical Information - DEMAG ERGOTECH 1500-840

Technical Specification

  • Clamping Force: 1500 kN
  • Max. Shot Weight: 320 g
  • Screw Diameter: 45 mm

Additional Information

  • Stroke volume: 358 cm³

  • Materials processed: PA, PP, PE, ABS, etc.

  • Cylinder temperature: up to 450 °C

  • Max pressure: 190 bar

  • Max flow (Qmax): 114 l/min

  • Power supply: 3x400 V

  • Frequency: 50 Hz

  • Total connected load: 78.3 A

  • Motor load: 41.0 A

  • Heating load: 37.3 A

  • Pump load: 41.0 A

  • Machine weight: 7.7 t

  • Year of production: 1999

  • Availability: Mid 2026

Additional equipment

  • Handling system: Wittmann linear robot

  • Wittmann W621 (1999)

    • X-stroke: 550 mm

    • Y-stroke: 1200 mm

    • Z-stroke: 2000 mm

    • Weight: 300 kg

  • Wittmann W633-0686 (2003)

    • Robot No: W633-0686

    • X-stroke: 500 mm

    • Y-stroke: 1400 mm

    • Z-stroke: 2000 mm

    • Weight: 475 kg

  • Wittmann W743-0210 (2007)

    • Robot No: W743-0210

    • X-stroke: 1200 mm

    • Y-stroke: 2000 mm

    • Z-stroke: 4000 mm

    • Weight: 835 kg

    • Connected load: 18 A / 12.5 kVA

    • Voltage: 400 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
