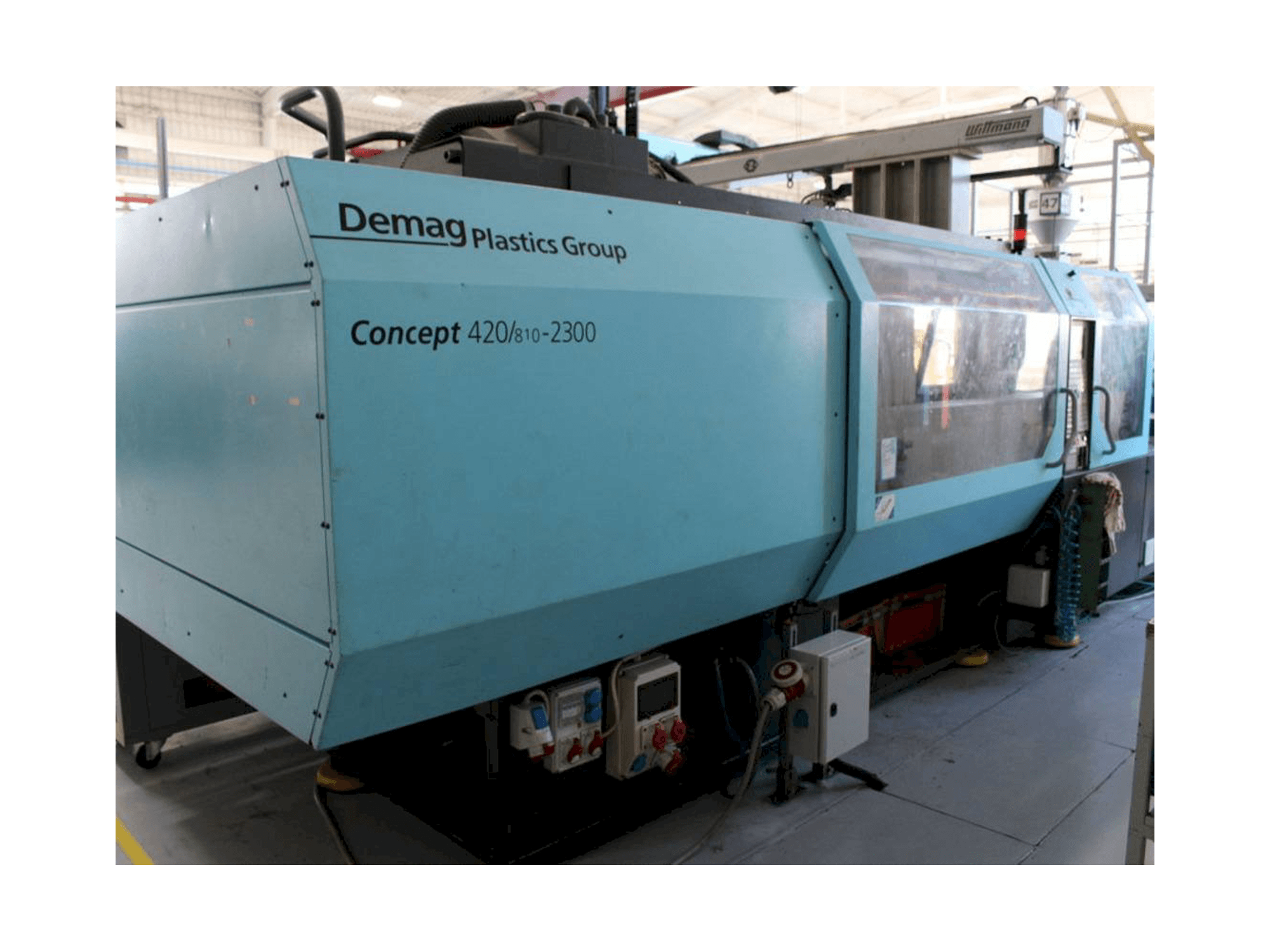

Front view of DEMAG 420/810-2300 NC4 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

SUMITOMO SHI DEMAG 420/810-2300 NC4

Photo Gallery

SUMITOMO SHI DEMAG - 420/810-2300 NC4CZ-INJ-DEM-2005-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Demag 420/810-2300 NC4 Injection moulding machine

Show in original language

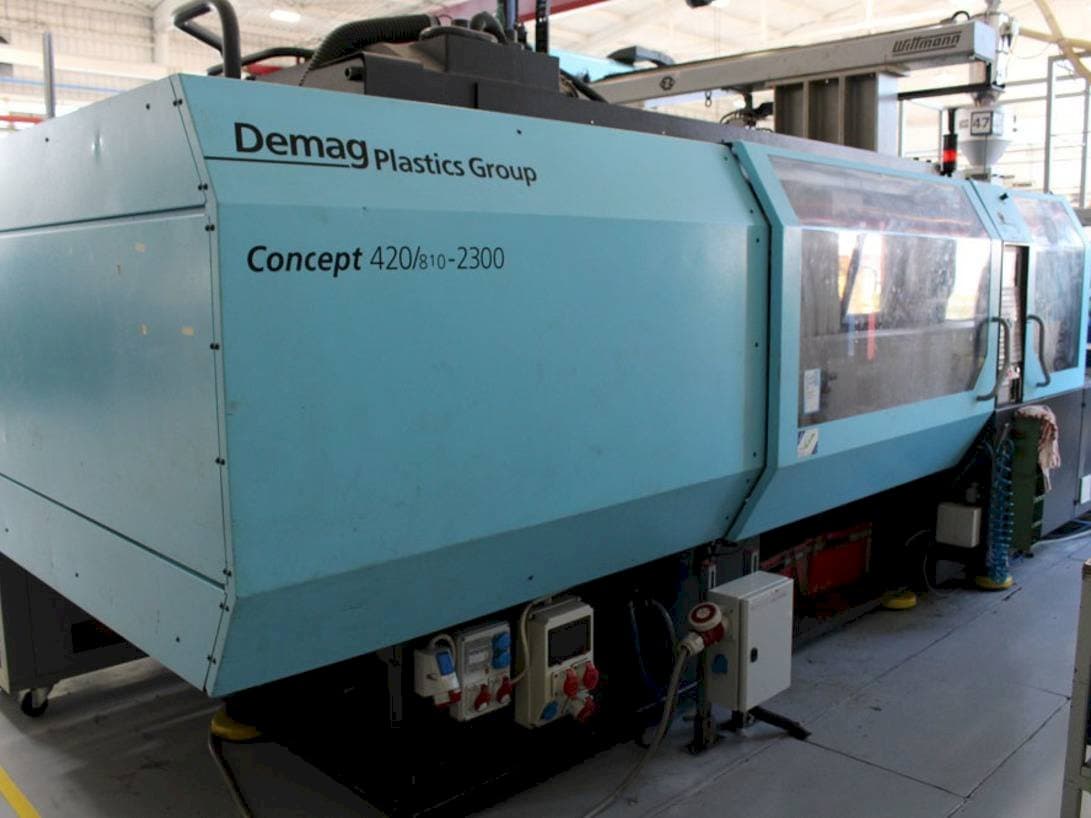

This Demag 420/810-2300 NC4 Injection moulding machine was manufactured in the year 2005 in Germany and has 78000 pump hours. It is equipped with an Ergocontrol as control unit. The machine has a clamping force of 4200 kN, is in very good condition and well maintained.

Overview

brand: SUMITOMO SHI DEMAG
year: 2005
MODEL: 420/810-2300 NC4
production hours: 78000
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - SUMITOMO SHI DEMAG 420/810-2300 NC4

General Data

Measurements width: 2200 mm
Measurements depth: 7800 mmm
Measurements height: 4500 mm

Injection Unit

Screw diameter: 60 mm

Clamping unit

Clamping force: 4200 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tie bar spacing (h) : 810 mm
- - Tie bar spacing (v) :710 mm
- - Shot volume : 891 cm³
- - Shot weight : 800 g
- - Pressure on material :2420 bar
- - Platen length: 1100 mm, platen width : 1200 mm
- - Robot interface euromap e 67
- - Number of cores: 2
- - Number of heating zones : 9
- - Opening of the press :710 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
