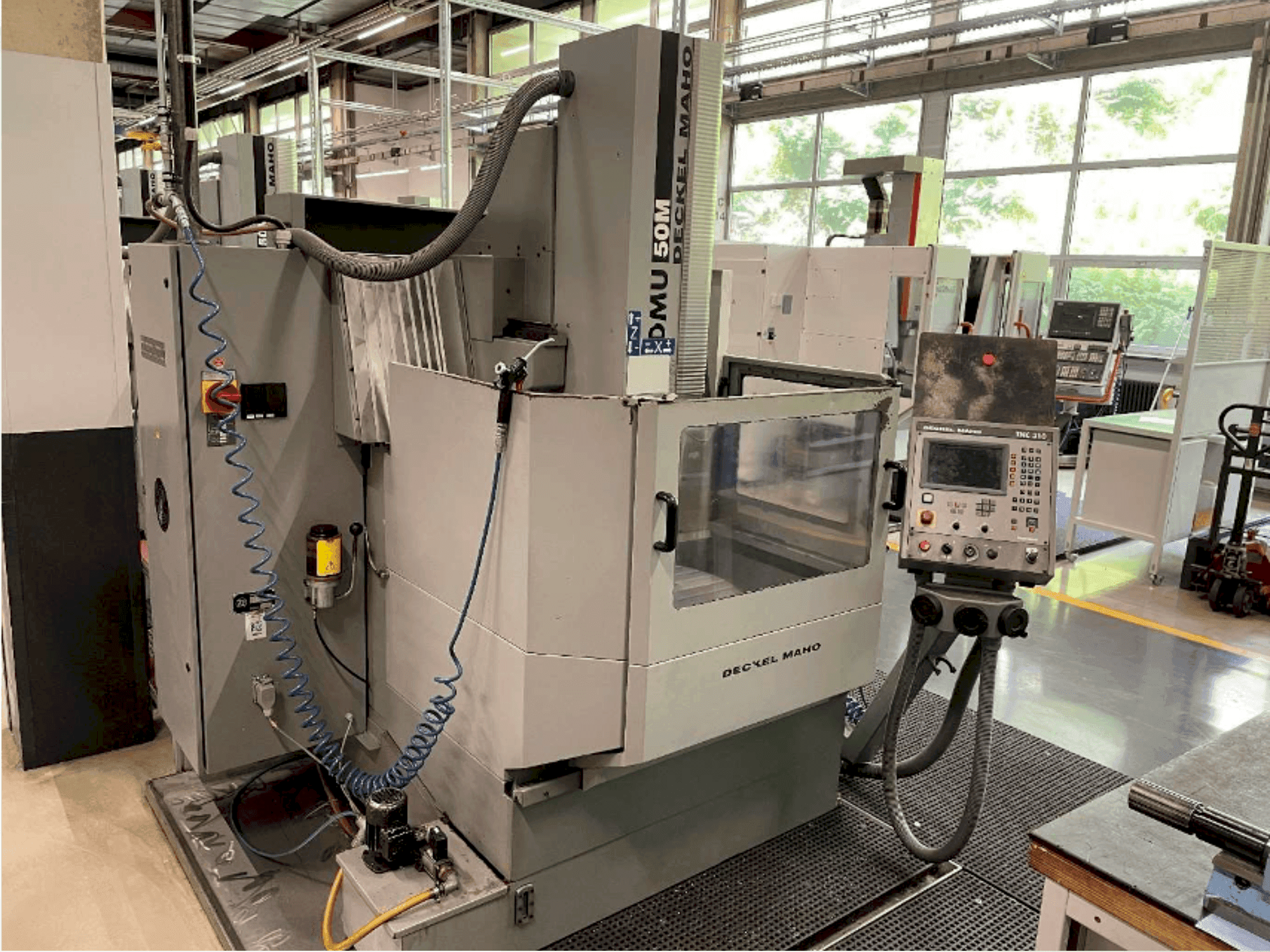

This 3-axis DECKEL DMU 50 vertical machining center was manufactured in 2003. It features a Heidenhain TNC 310 control, electronic handwheel HR 150, and a main drive speed of 4,500 min-1. The machine offers a rapid traverse of 5 m/min and a maximum load capacity of 200 kg. If you are looking to get high-quality milling capabilities, consider the DECKEL DMU 50 machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: DECKEL
- year: 2003
- MODEL: DMU 50
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: HEIDENHAIN
Technical Information - DECKEL DMU 50
General Data
- Measurements width: 1520 MM
- Measurements depth: 2000 MM
- Measurements height: 2140 MM
- Machine weight: 2800 KG
Control Unit
- Brand: HEIDENHAIN
- Model: TNC 310
Main drive
- Spindle speed range: 4500 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 500 mm
- X-AXIS Rapid traverse: 5 m/min
- Y-AXIS Movement: 400 mm
- Y-AXIS Rapid traverse: 5 m/min
- Z-AXIS Movement: 400 mm
- Z-AXIS Rapid traverse: 5 m/min
Table
- Outer length: 700 mm
- Outer width: 500 mm
- TSlots size: 63 mm
- Distance between: 14 H7
- Table load: 200 kg
Additional Information
- Technical Machine Benefits:
- - Feed drive: xyz infinitely variable up to 5000 mm/min
- - Travel measuring system: xyz 0. 001 mm
- - Positioning tolerance: 0. 010 mm
- - Centering hole diameter: 30 mm h6
- - Swivel range: +95 / -10°
- Qualitative Machine Benefits:
- - Features a rotary table with a generous clamping surface area to support various workpiece sizes.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
