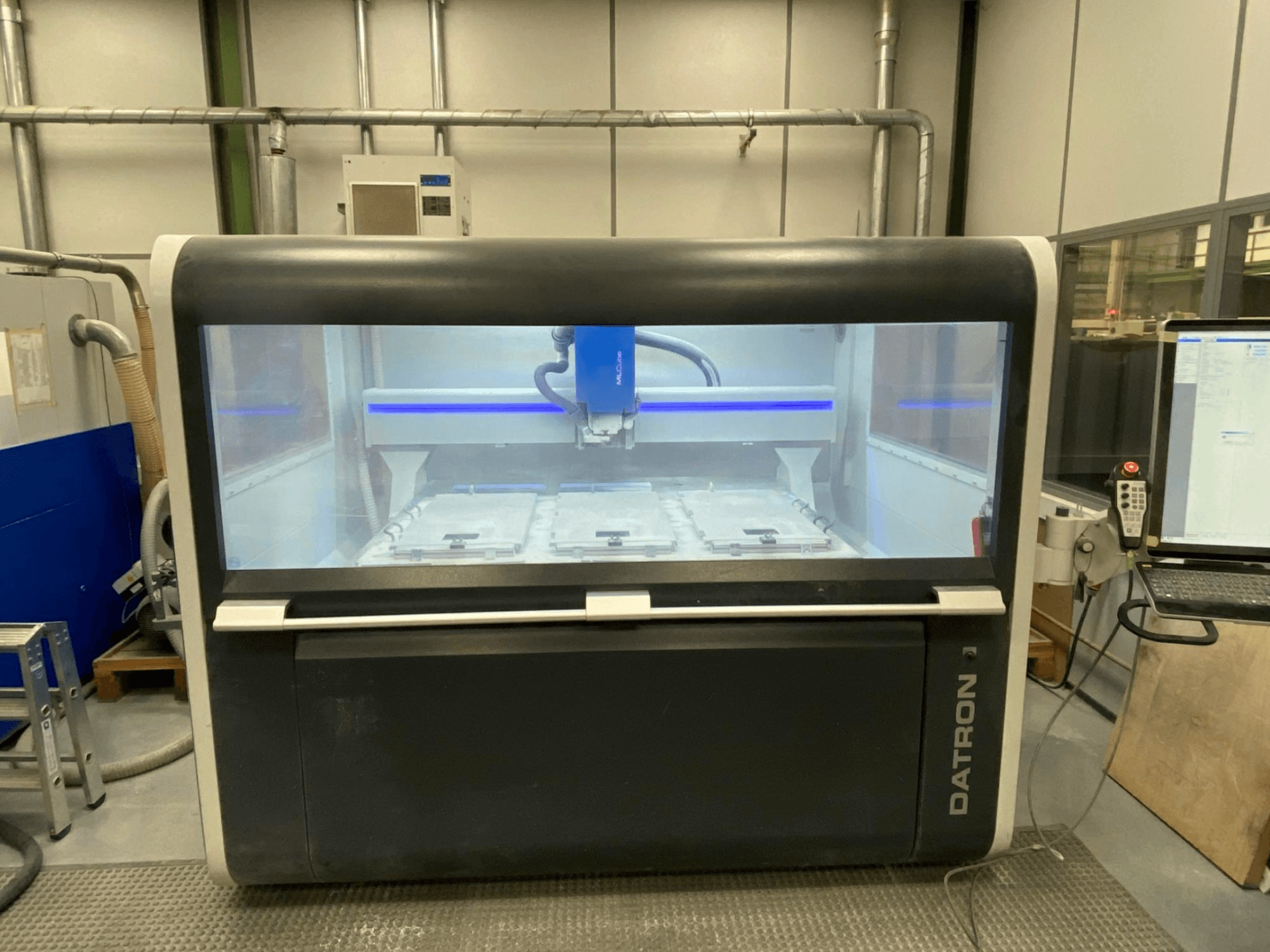

This 3-axis Datron MLCube B was manufactured in 2018. It features an impressive X-axis travel of 1520 mm, Y-axis travel of 1150 mm, and Z-axis travel of 245 mm. The machine is equipped with a high-frequency spindle capable of reaching speeds up to 60,000 rpm and includes a 15-fold automatic tool changer. If you are looking to get high-quality machining capabilities, consider the Datron MLCube B vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Datron
- year: 2018
- MODEL: MLCube B
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - Datron MLCube B
Dimensions
- Machine Weight: 2500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1520 mm
- Y-axis Travel: 1150 mm
- Z-axis Travel: 245 mm
Additional Information
Portal clearance: 200 mm
Max feed rate: up to 20 m/min
Feed rates (XYZ): X 20 m/min / Y 20 m/min / Z 11.5 m/min
Spindle: High-frequency, 2.0 kW
Collet size: 6 mm
Max tool diameter: 8 mm
Tool changer: 15-fold automatic tool changer
Tool system: Direct shaft
Control system: DATRON CNC with terminal
Table clamping area: approx. 1000 x 1500 mm
Installed power (machine): 4 kVA
Electrical supply (machine): 3 x 400 V, 50–60 Hz
Operating pressure (machine): 0.7–1.0 MPa (7–10 bar)
Machine dimensions (without terminal): 2410 x 2280 x 1950 mm
Additional equipment
Hand control unit: B10-2 for HSPro
Vacuum plates: 1000 x 500 x 30 mm (3 pcs)
Vacuum pump:
Capacity: 200 m³/h
Motor power: 5.5 kW
Operating voltage: 3 x 400 V
Max fuse: 16 A
End pressure: 10 mbar
Weight: 150 kg
Software: PrimCAM-ET V3.xx (second license)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
