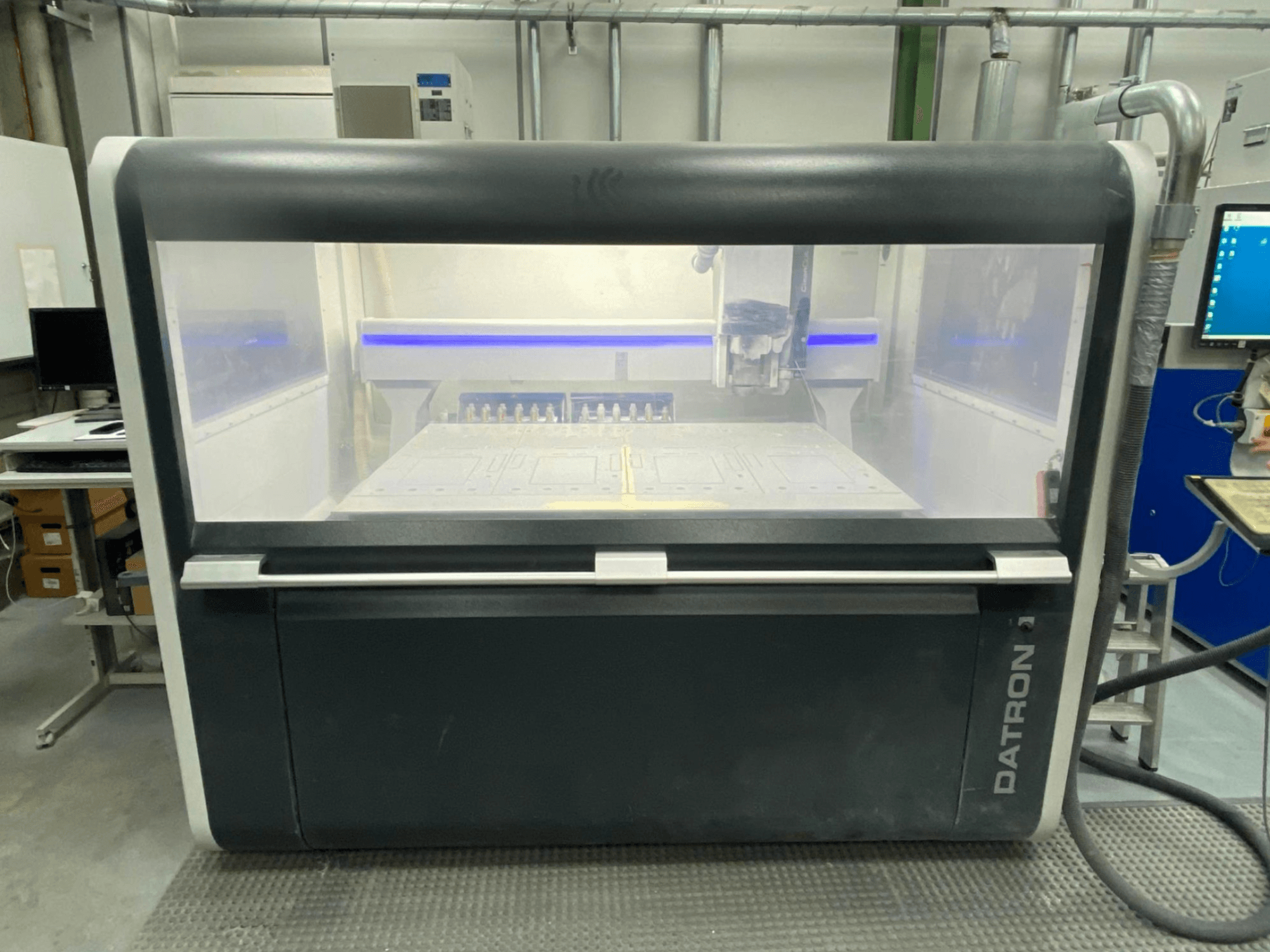

This 3-axis Datron MLCube B was manufactured in 2017. It features an impressive X-axis travel of 1520 mm, Y-axis travel of 1150 mm, and Z-axis travel of 245 mm. The machine is equipped with a powerful 3.0 kW HF spindle and an automatic tool changer with 24 positions. If you are looking to get high-quality machining capabilities, consider the Datron MLCube B vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Datron
- year: 2017
- MODEL: MLCube B
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - Datron MLCube B
Dimensions
- Machine Weight: 2500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1520 mm
- Y-axis Travel: 1150 mm
- Z-axis Travel: 245 mm
Technical Specification
- Spindle Power: 3 kW
Additional Information
Portal clearance: 200 mm
Spindle type: HF Spindle PowerS Synchro
Tool interface: HSK-E 25
Automatic tool changer: 24 positions
Control system: DATRON HSPro
Voltage: 3 x 400 V
Frequency: 50–60 Hz
Input power: 5 kVA
Maximum fuse protection: 16 A
Operating pressure: 0.7–1.0 MPa (7–10 bar)
Additional equipment
Hand control unit: B10-2
Minimum quantity lubrication system: 5 L tank
Spray unit: 4 nozzles
Spindle cooling unit: HI-KG
Vacuum plate: 1000 x 500 x 70 mm
Vacuum distributor: 6-fold Pro
Vacuum pump capacity: 200 m³/h
Vacuum pump motor power: 5.5 kW
Vacuum pump weight: approx. 150 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
