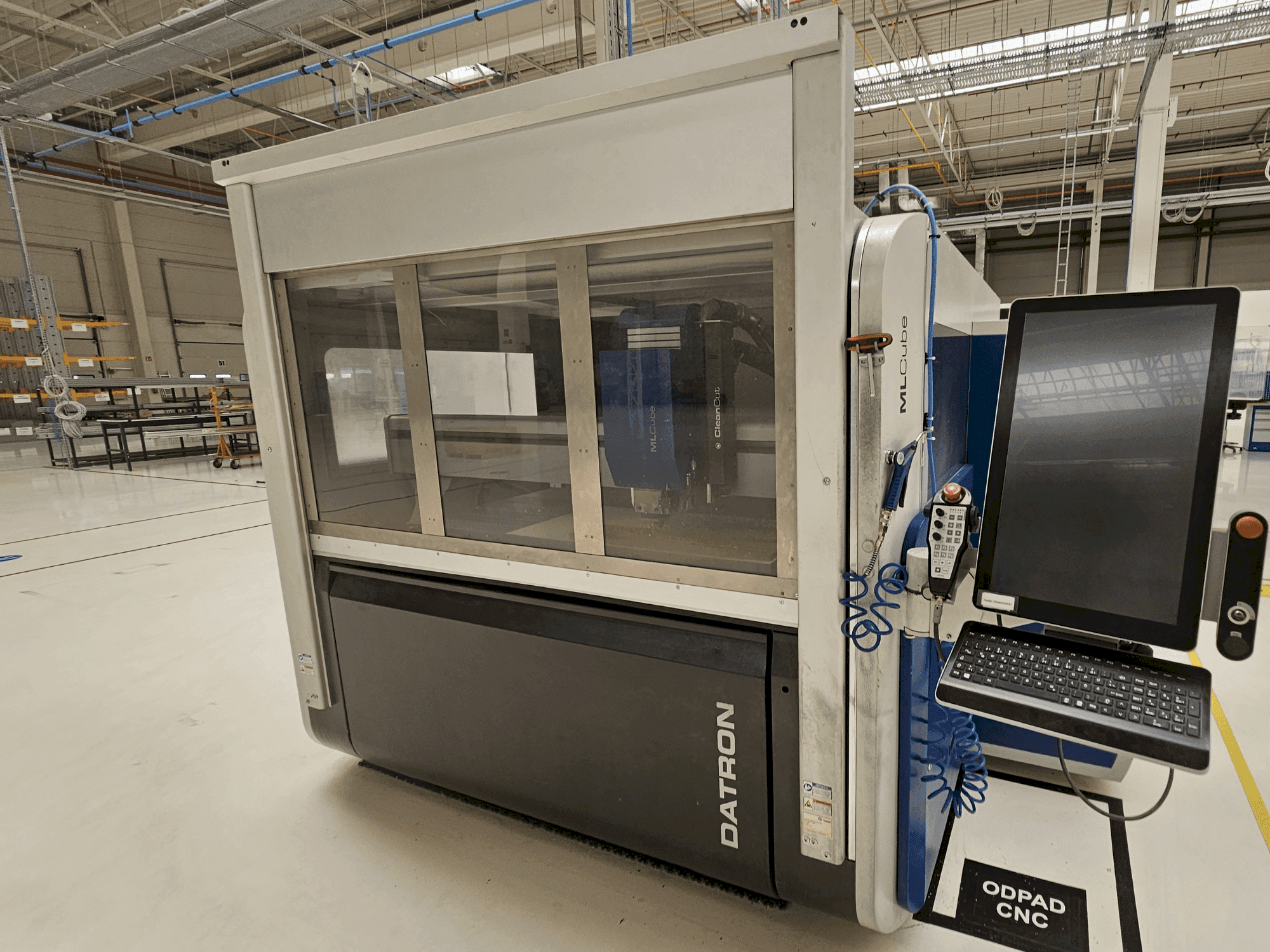

Front view of Datron MLCube B LS machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Datron MLCube B LS

Photo Gallery

Datron - MLCube B LSPL-MIL-DAT-2019-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Datron MLCube B LS For Sale | gindumac.com

Show in original language

This 3-axis Datron MLCube B LS was manufactured in 2019. It features a robust portal structure, brushless servo drives with absolute encoders, and a high-frequency spindle with speeds up to 60,000 rpm. The tool magazine holds up to 78 tools, enhancing productivity. Ideal for precision machining, it includes a user-friendly DATRON next control system. Contact us for more information about this machine.

Overview

brand: Datron
year: 2019
MODEL: MLCube B LS
production hours: 6768
application type: Milling
Location: Poland
machine type: Vertical Machining Centre

Technical Information - Datron MLCube B LS

Dimensions

Machine Depth: 2410 mm
Machine Height: 1950 mm
Machine Weight: 2500 kg

Movement

Number of Axes: 3
X-axis Travel: 1520 mm
Y-axis Travel: 1150 mm
Z-axis Travel: 245 mm

Technical Specification

Spindle Power: 4 kW
Spindle Speed: 60000 RPM

Additional Information

Additional equipment

Aluminum filtration unit
Options included: Automatic front door / Control DATRON next+ / CNC hand-held control unit 810-2
DATRON next Camera-Feature / DATRON next - Option package: Universal / HF spindle 4.0 kW, HSK-E25
Minimum-quantity cooling lubrication / Spray unit, 4 Nozzles / DATRON ToolAssist 143-fold
DATRON Tool length probe / Clamping set Tribos SVP-2 / Collet HSK-E25 - 12 pieces
High-precision probe Z TP-R / Vacuum distributor 6-fold Pro/ Vacuum pump, 250 cbm/h / Vacuum plate with meander-formed slots / DATRON CleanCut MLCube

Machine Benefits

Technical Machine Benefits

Brushless servo drives with absolute encoders
Ball-screw spindles for each axis
Minimum-quantity lubrication system
Feed rate: up to 20 m/min
Positioning feed: up to 20 m/min
Tool magazine capacity: 78 tools // tool changer: hsk-e25
Control system: datron next
User-friendly hand-held unit
With tool hanger: 1020 mm in y
Portal passage: 200 mm

Extra Information

Table Solid concrete polymer table with steel base Extremely rigid portal structure with double-sided Y drive and hidden guides Tapered Seat Integrated in the Table: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
