DANOBAT - CHROMA 30ES-GRI-DAN-2011-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DANOBAT CHROMA 30 For Sale | gindumac.com

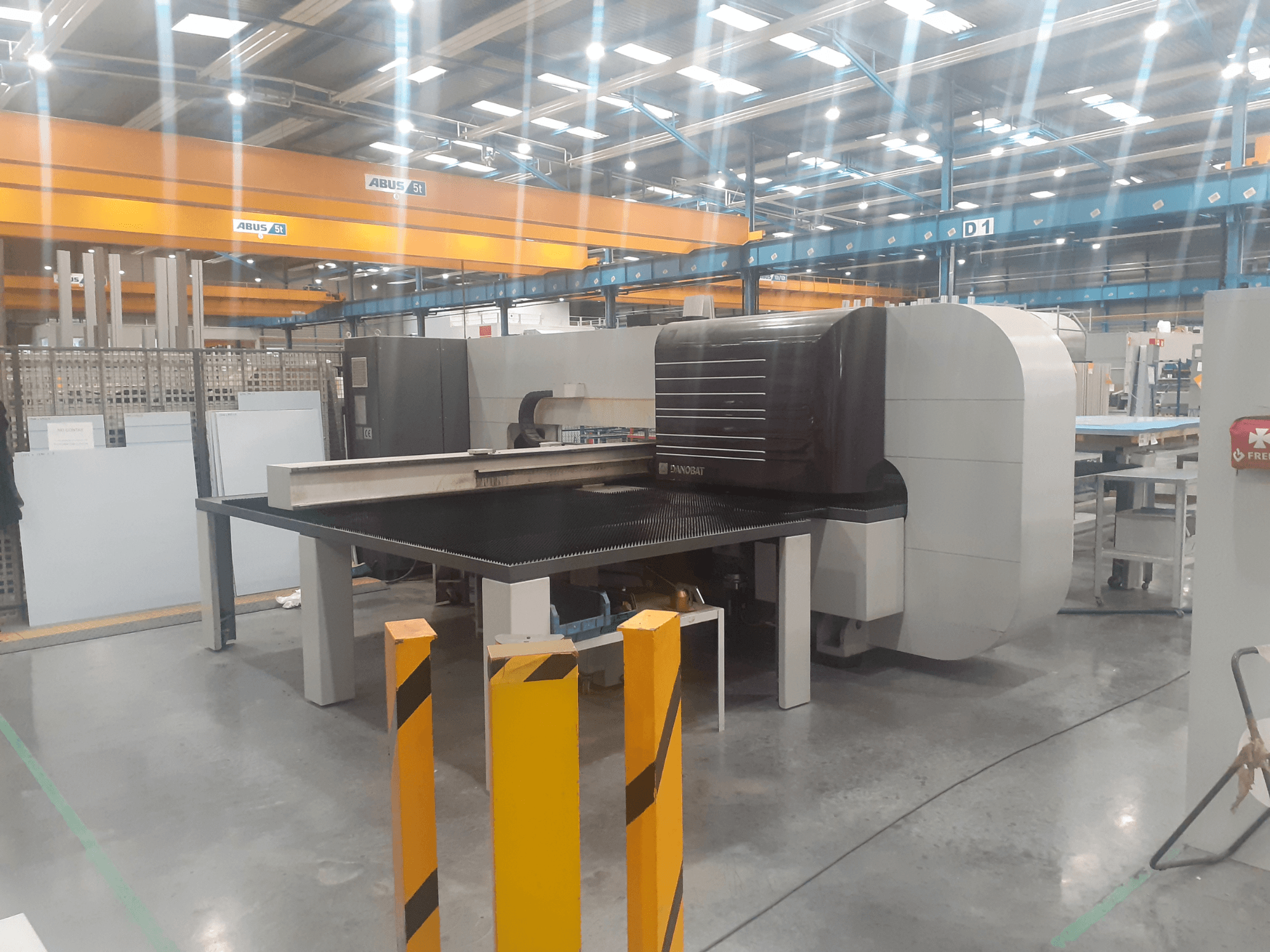

This 3-axis DANOBAT CHROMA 30 was manufactured in 2011. It features a punching force of 30 t, a maximum sheet thickness of 6 mm, and a working area of 3000 x 1500 mm. The machine operates at a punching speed of 1000 strokes/min and includes a tooling system valued at €20,000. If you are looking to get high-quality punching capabilities, consider the DANOBAT CHROMA 30 cylindrical grinding machine we have for sale. Contact us for further details.
Overview
- brand: DANOBAT
- year: 2011
- MODEL: CHROMA 30
- production hours: 30000
- application type: Grinding
- Location: Spain
- machine type: Cylindrical Grinding Machine
- control unit brand: FAGOR
Technical Information - DANOBAT CHROMA 30
Control Unit
- Control Brand: FAGOR
- Control Model: 8070
Movement
- Number of Axes: 3
- X-axis Travel: 3000 mm
- Y-axis Travel: 1500 mm
Additional Information
Punching force: 30 t (300 kN)
Max sheet thickness: 6 mm (currently up to 4 mm galvanized steel)
Stroke: 35 mm
Punching speed: 1000 strokes/min
X-axis speed: 120 m/min
Y-axis speed: 80 m/min
Working pressure: 6 bar
Working area: 3000 x 1500 mm
Clamping system: 3 clamps with automatic repositioning/change
Number of stations: 27 (including 4 auto-indexed stations)
Tooling system: GOITI
Drive: Servo-electric (electric striker)
CNC: Fagor 8070
Automatic clamp repositioning
Climate-controlled electrical cabinet
Apparent power: 7 kVA
Voltage: 400 V
Frequency: 50/60 Hz
Working hours: 30,000
Maintenance: Annual inspections by manufacturer
Status: In operation
Demonstration: Can be seen running
Additional equipment
Tooling set included (valued at €20,000)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
