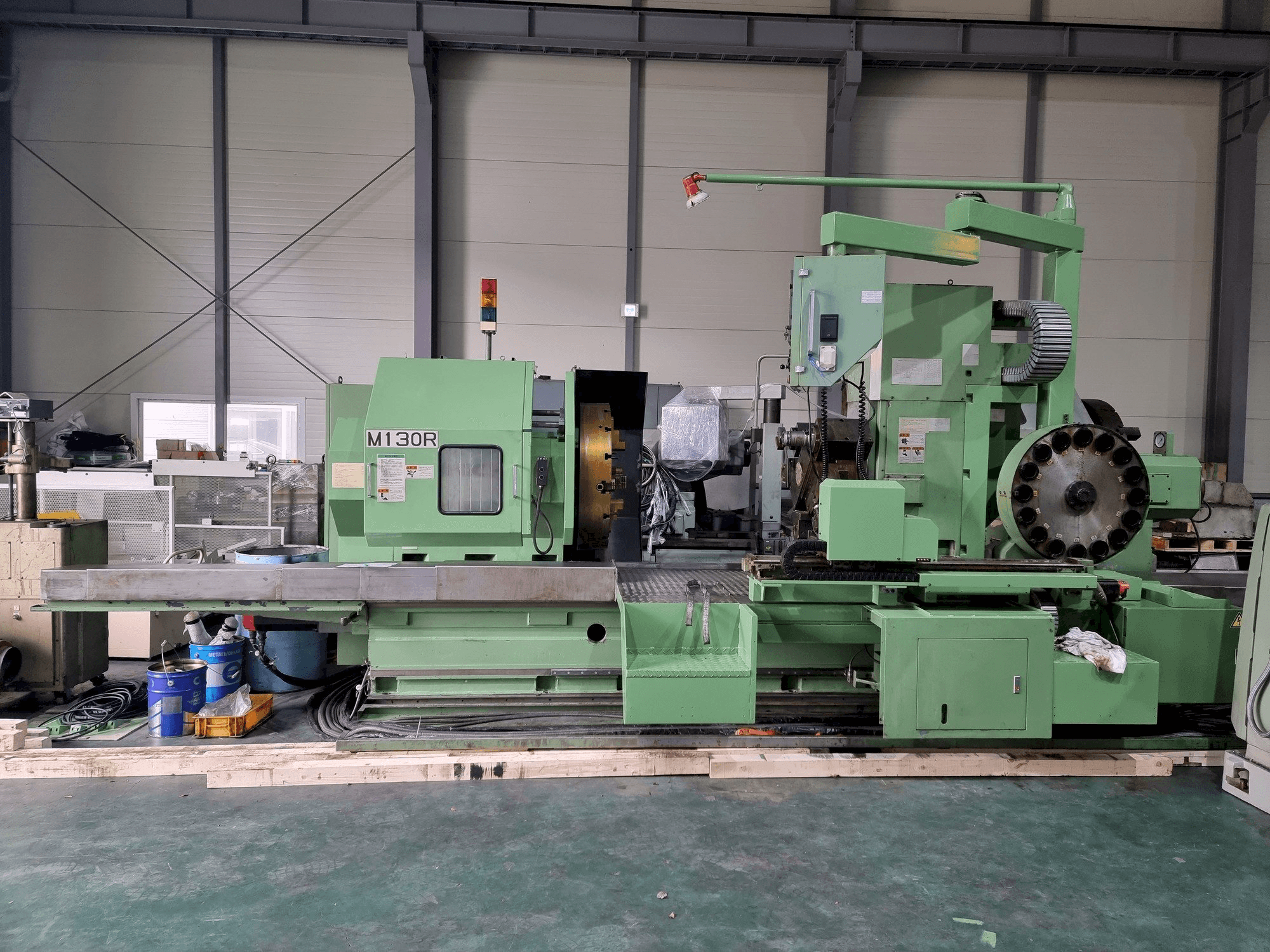

DAINICHI M 130R Lathe machine

Show in original language

This DAINICHI M 130R Lathe machine was manufactured in the year 1996. This machine is operated by a FANUC-16T control unit. It works with a main spindle speed range 2 to 400 rpm and a milling tools up to 1,125 rpm.

Overview

brand: DAINICHI
year: 1996
MODEL: M 130R
application type: Turning
Location: South Korea
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DAINICHI M 130R

General Data

Machine weight: 10000 kg

Control Unit

Model: 16T
Brand: FANUC

Main drive

Spindle speed range: 2 - 400 1/MIN

Movement

X-AXIS Movement: 525 mm
Y-AXIS Movement: 150 (±75) mm
Z-AXIS Movement: 4,255 mm
C-AXIS Movement: 0.001 degree

Turret

Number of turrets: 8ea

Media

Main electronic connection: 220V, 60Hz
Chip conveyor: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Mpg handle
Manual books
Ce mark

Technical Machine Benefits

Swing over bed : 1,150 mm
Swing over saddle : 1,020 mm
Maximum turning length : 4,000 mm
Main chuck size : 40 inch (manual type)
Atc capacity : 16 ea (milling function)
Milling tools rpm : 1,125 rpm
Tail stock
1 steady rest (manual type)
Call right(led 3 step)
Chip bucket

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
