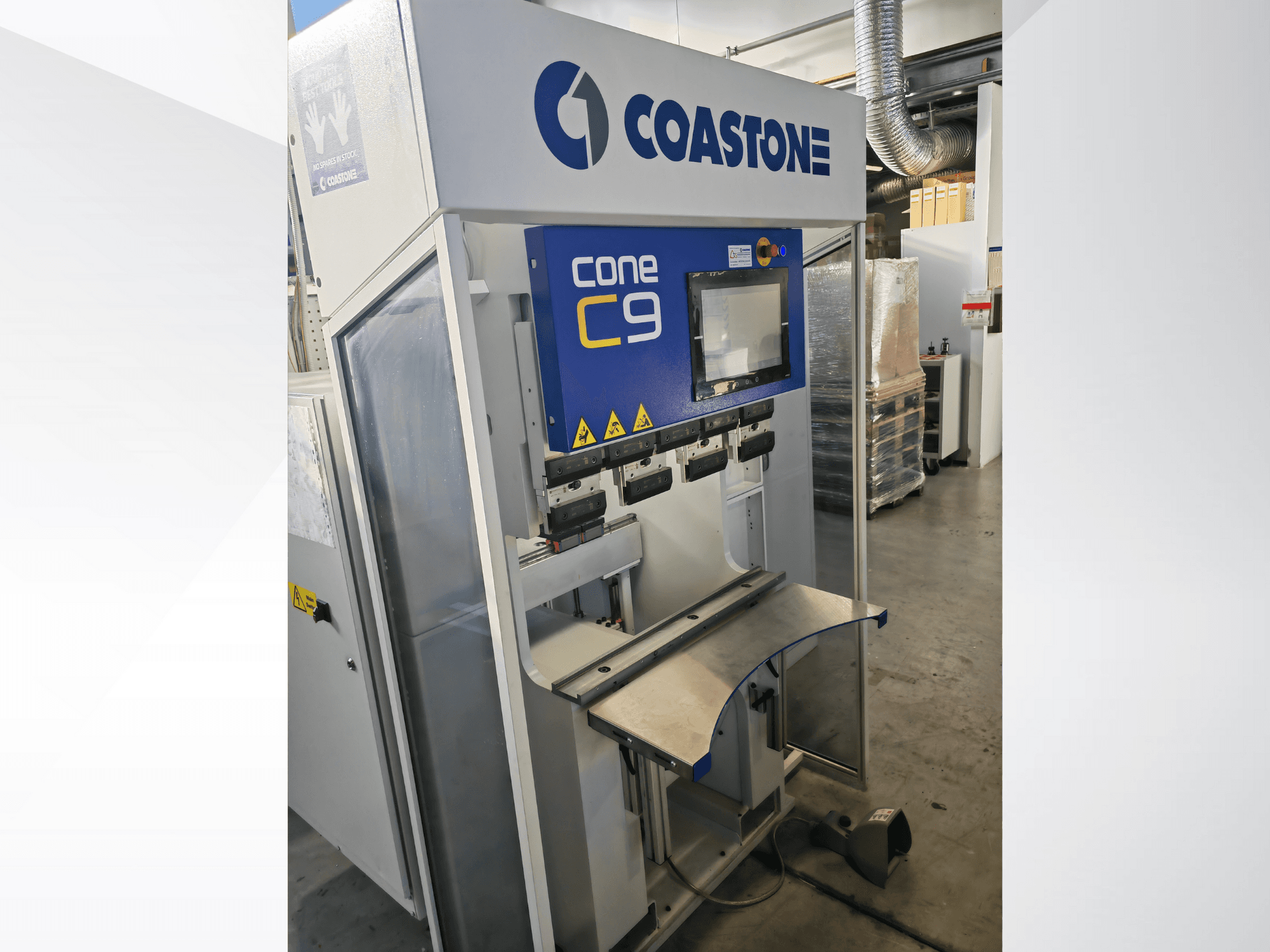

Coastone Cone C9 machine from a front view, featuring a control panel and stainless steel work surface.
Coastone Cone C9 machine from a front view, featuring a control panel and stainless steel work surface.

COASTONE - cone c9SI-BEN-COA-2023-00001

Rs. 4,852,700
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Coastone Cone C9 press brake was manufactured in 2023. It features a C-frame design, a pressing force of 220 kN, and a maximum bending length of 900 mm. Equipped with an Omron Touchscreen TC15-2D CNC control and Amada Promecam tool clamping system, it ensures precision and ease of use. Located in Slovenia, it comes with a complete bending tool set and a 36-month warranty. Consider the opportunity to buy this Coastone Cone C9 press brake. Contact us for more information.

Overview

  • brand: COASTONE
  • year: 2023
  • MODEL: cone c9
  • application type: Bending
  • Location: Slovenia
  • machine type: Press Brake

Technical Information - COASTONE cone c9

Dimensions

  • Machine Height: 2200 mm
  • Machine Length: 1440 mm
  • Machine Weight: 1800 kg

Movement

  • Number of Axes: 3

Technical Specification

  • Pressing Force: 220 Kn

Additional Information

  • Delivery/warranty: Delivered 24 Aug 2023; 36-month warranty (valid until approx. 24 Aug 2026)

  • Condition: Very lightly used, excellent working condition

  • Frame type: C-frame

  • Number of spindles: 1

  • Maximum bending length: 900 mm

  • Frame opening width: 790 mm

  • Throat depth: 150 mm

  • Max./min. installation height: 500 mm / 250 mm

  • Y-axis:

    • Stroke: 380 mm

    • Bending speed: 10 mm/s

    • Downward speed: 100 mm/s

    • Return speed: 100 mm/s

    • Repeatability: ±0.002 mm

  • X-axis:

    • Stroke: 400 mm

    • Speed: 500 mm/s

    • Repeatability: ±0.025 mm

  • R-axis:

    • Stroke: 135 mm

    • Speed: 100 mm/s

    • Repeatability: ±0.05 mm

  • Electrical connection: 400 V / 3x16 A

  • Motor power: 5 kW

  • CNC control: Omron Touchscreen TC15-2D

  • Tool clamping system: Amada Promecam – Type A

Additional equipment

  • Complete bending tool set

  • Tool cabinet

  • Other additional accessories (as provided by the owner)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
