CME MH-700

Photo Gallery

CME - MH-700DE-MIL-CME-2003-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CME MH-700 - 2003 - For Sale | gindumac.com

Show in original language

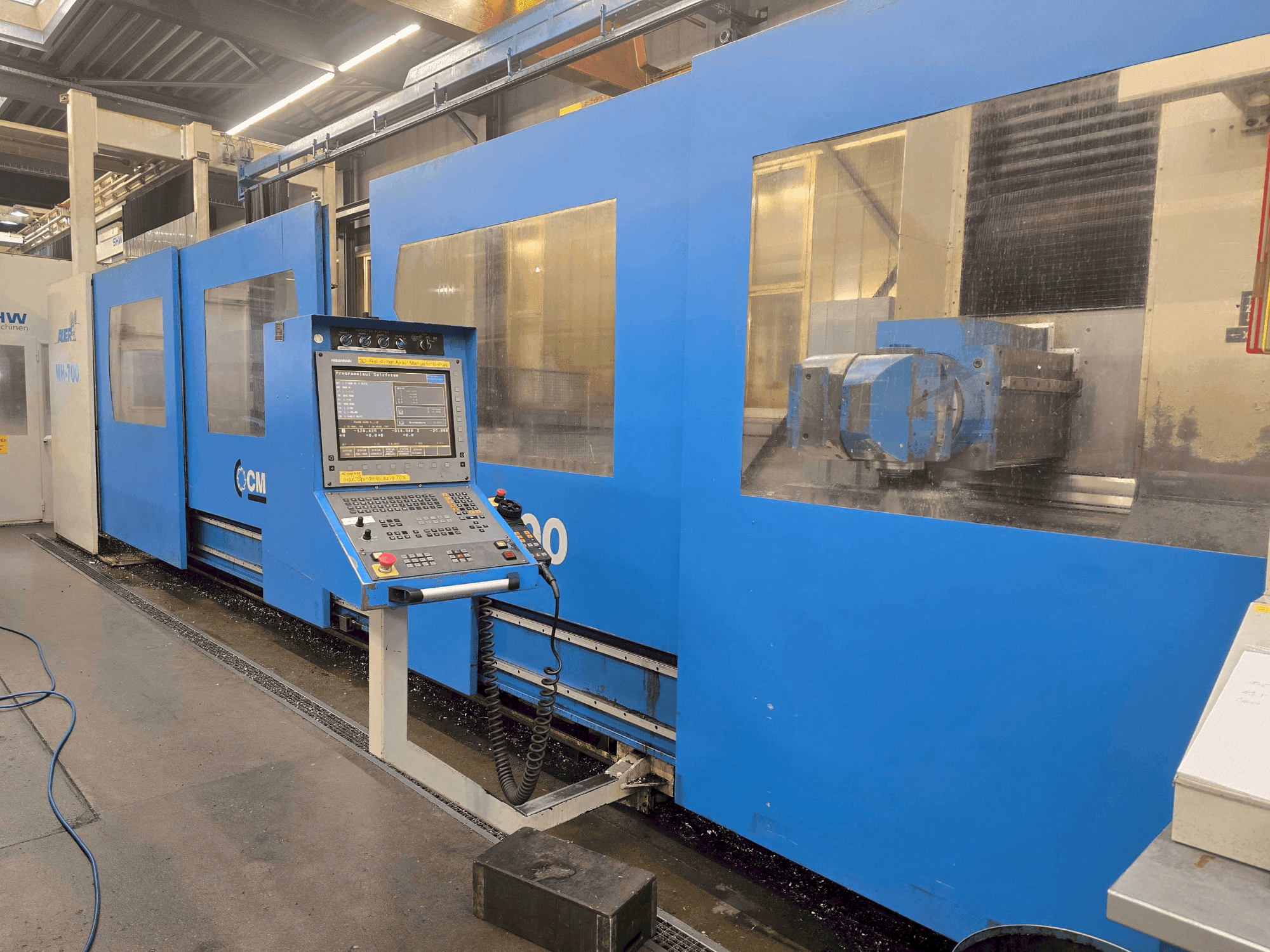

This 3-axis CME MH-700 Bed Type Milling Machine was manufactured in 2003. It features a HEIDENHAIN TNC 430M control, an orthogonal automatic headstock with 5000 rpm, and a robust stroke capacity (X = 7000 mm, Y = 1200 mm, Z = 1500 mm). Additional features include internal cooling, a 15 bar pump, and a 60-tool ATC. Consider the opportunity to buy this CME MH-700 Bed Type Milling Machine. Contact us for more information about this machine.

Overview

brand: CME
year: 2003
MODEL: MH-700
application type: Milling
Location: Germany
machine type: Bed Type Milling Machine
control unit brand: HEIDENHAIN

Technical Information - CME MH-700

Control Unit

Brand: HEIDENHAIN
Model: TNC-430M

Main drive

Spindle speed range: 5000 rpm 1/MIN
Spindle motor power: 30 kW

Movement

X-AXIS Movement: 7000 MM
Y-AXIS Movement: 1200 MM
Z-AXIS Movement: 1500 MM

Additional equipment

- Side ladders with grid / Chain harness, gooseneck H = 1200 mm, right side / Tool storage ATC-60, horizontal/vertical / Foot pedal for tool clamping / 2 × 500 W halogen lamps / Internal cooling through the tool with 15 bar pump / 500 L paper filter / Oil cooling device / Temperature sensor / Ground grooves / Sliding button control panel on the table

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Mounting: 150-50, din 69871
- - Enclosure: ce-3 (powered doors, with complete enclosure and front protective bellows)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
