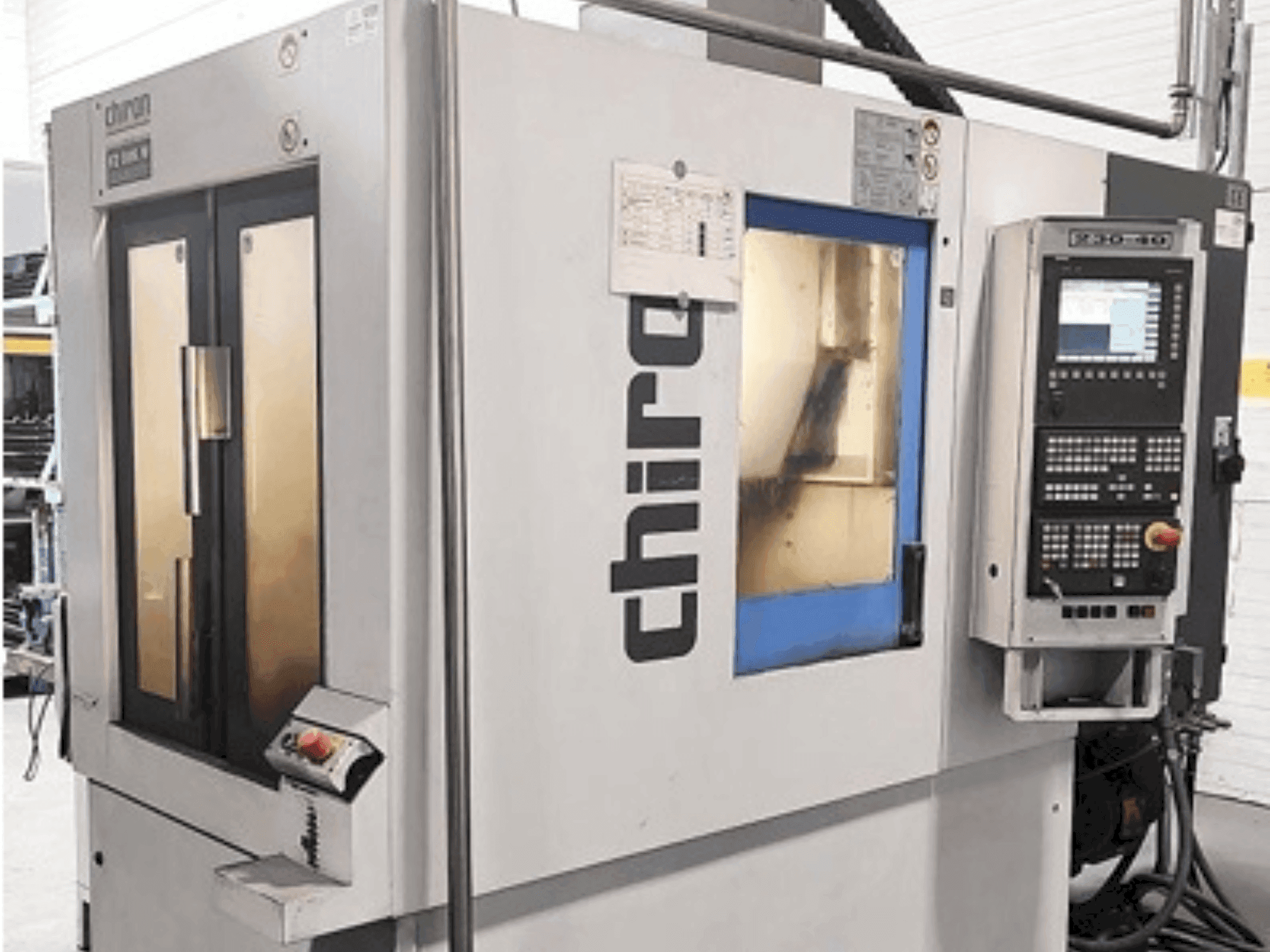

CHIRON FZ 08K W

Photo Gallery

CHIRON - FZ 08K WDE-MIL-CHI-2004-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CHIRON FZ 08K W For Sale | gindumac.com

Show in original language

This 3-axis CHIRON FZ 08K W vertical machining center was manufactured in 2004. It features a Siemens 840D control, a rapid traverse speed of up to 60 m/min, and a high-pressure coolant system up to 150 bar. With approximately 5,000 machine hours and a robust tool changer with 24 positions, consider the opportunity to buy this CHIRON FZ 08K W vertical machining center. Contact us for more information about this machine.

Overview

brand: CHIRON
year: 2004
MODEL: FZ 08K W
production hours: 5000
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - CHIRON FZ 08K W

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 840D

Dimensions

Machine Weight: 3600 kg

Movement

Number of Axes: 3
X-axis Travel: 450 mm
Y-axis Travel: 270 mm
Z-axis Travel: 310 mm

Technical Specification

Spindle Power: 2.2 kW
Spindle Speed: 15000 RPM

Additional Information

Additional equipment

Options: Optionally expandable to 4th and 5th axis (e.g. rotary table or swivel axis)

Machine Benefits

Technical Machine Benefits

High-pressure coolant unit: up to 150 bar (programmable)
Chip conveyor: scraper belt with 110-liter container
Filtration: 60-µm double-switching filter
Main drive: digital, air-locked
Max. Torque: 23 nm
Acceleration: x/y 0. 7 g, z 1. 0 g
Tool changer type: pick-up chain magazine (fully encapsulated)
Tool change time: 0. 8 s (control-dependent)
Chip-to-chip time: approx. 2. 2 s

Extra Information

The machine was acquired as a retrofit Mains connection: 400/230 V three-phase current, 50 Hz, N/PE Compressed air: min. 6 bar (±1 bar) Ambient temperature: max. 40°C Splash protection: Fully encapsulated with stainless steel blades Safety: CE-compliant (no RCD required) Workpiece Workpiece changing device: 0/180° with sheet steel partition Clamping surface: 2 x 550 x 300 mm² Max. Transport load: 200 kg per side (max. 50 kg difference) Workpiece changing time: Approx. 2.0 s (depending on weight) Media High-pressure coolant unit: Up to 150 bar (programmable) Chip conveyor: Scraper belt with 110-liter container Filtration: 60-µm double-switching filter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
