CBC Uni 90 Tube Bending Machine.

Show in original language

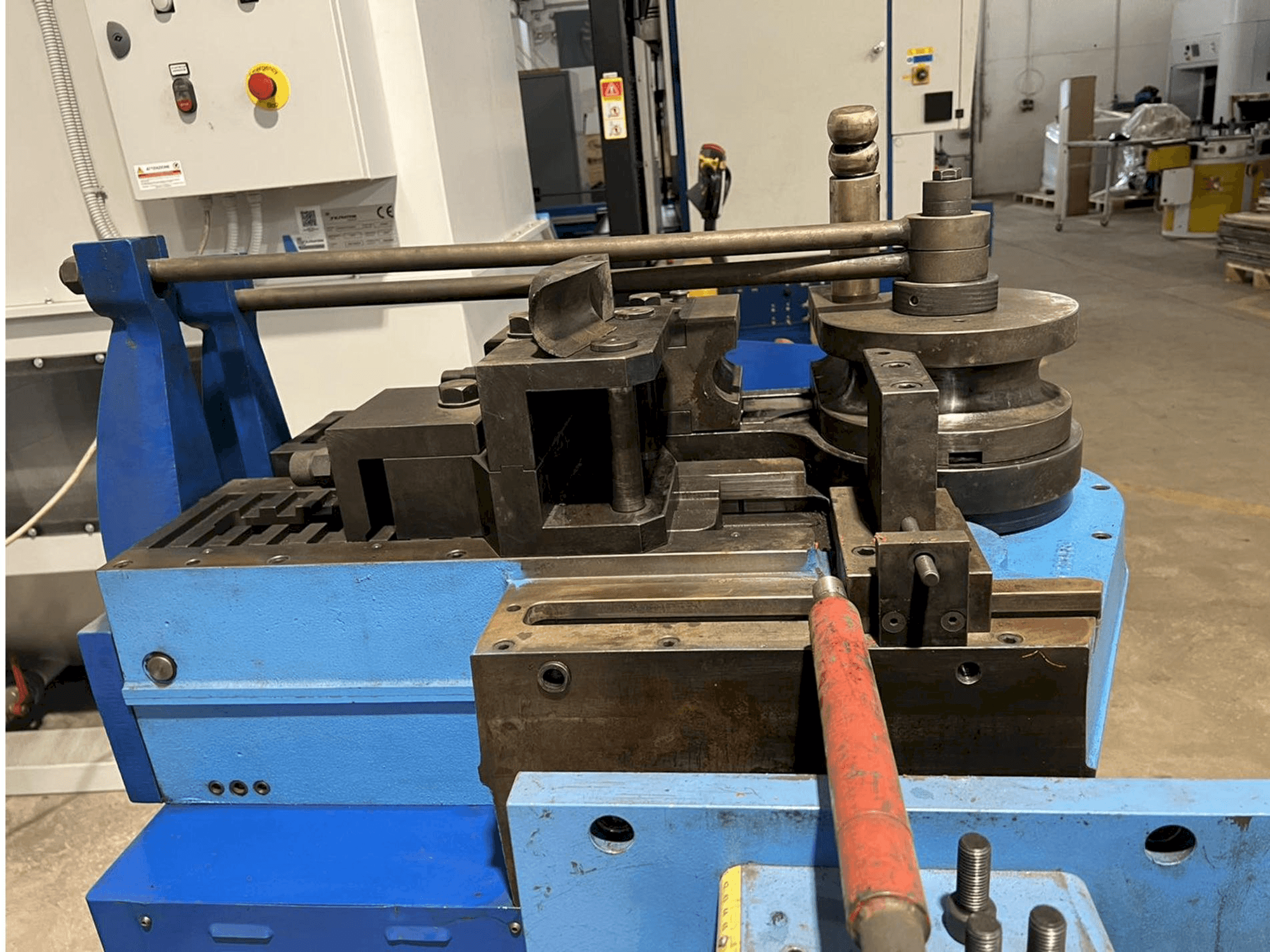

This CBC Uni 90 Tube Bending Machine was made in 2006 in Italy. It is equipped with a CBC control unit and counts with 18000 production hours. The machine works with a maximum bending angle of 180 degrees and a min-max bending radius of 50 - 250 mm. It includes a tool set for the pipe D42 R = 84.

Overview

brand: CBC
year: 2006
MODEL: Uni 90
production hours: 18000
application type: Bending
Location: Estonia
machine type: Bending machines
availability: Sold
control unit brand: CBC
GINDUMAC ID: EE-BEN-CBC-2006-00001

Technical Information

General Data

Measurements width: 1100 mm
Measurements depth: 700 mm
Measurements height: 1270 mm
Machine weight: 970 kg

Control Unit

Brand: CBC

Media

Main electronic connection: 400V/ 50Hz

Additional equipment

- tool set for the pipe D42 R = 84

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Machine tool with large diameter pipes, air -walled pipes
- - Engine 4. 0 kw with inverter -380v/ 50hz
- - Maximum bending angle 180 degrees.
- - A digital control block for programming, controlling and restoring a multilingual microprocessor with a multilingual microprocessor. He is able to maintain 50 programs, up to 9 bends in each program.
- - Automatic tool refund after stopping the bending cycle.
- - Electric brake.
- - Digital control hydraulic system for opening and closing the press and bending tools.
- - Min bending radius - 50 mm max bending radius - 250 mm
- - Mechanical positioning device for 3d bending.
- - A steel form that allows you to bend the tubes with a diameter of up to 35 mm.
Qualitative Machine Benefits:
- - A steel form that allows you to bend the pipes with a diameter of more than 35 mm
- - Includes machine manual.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
