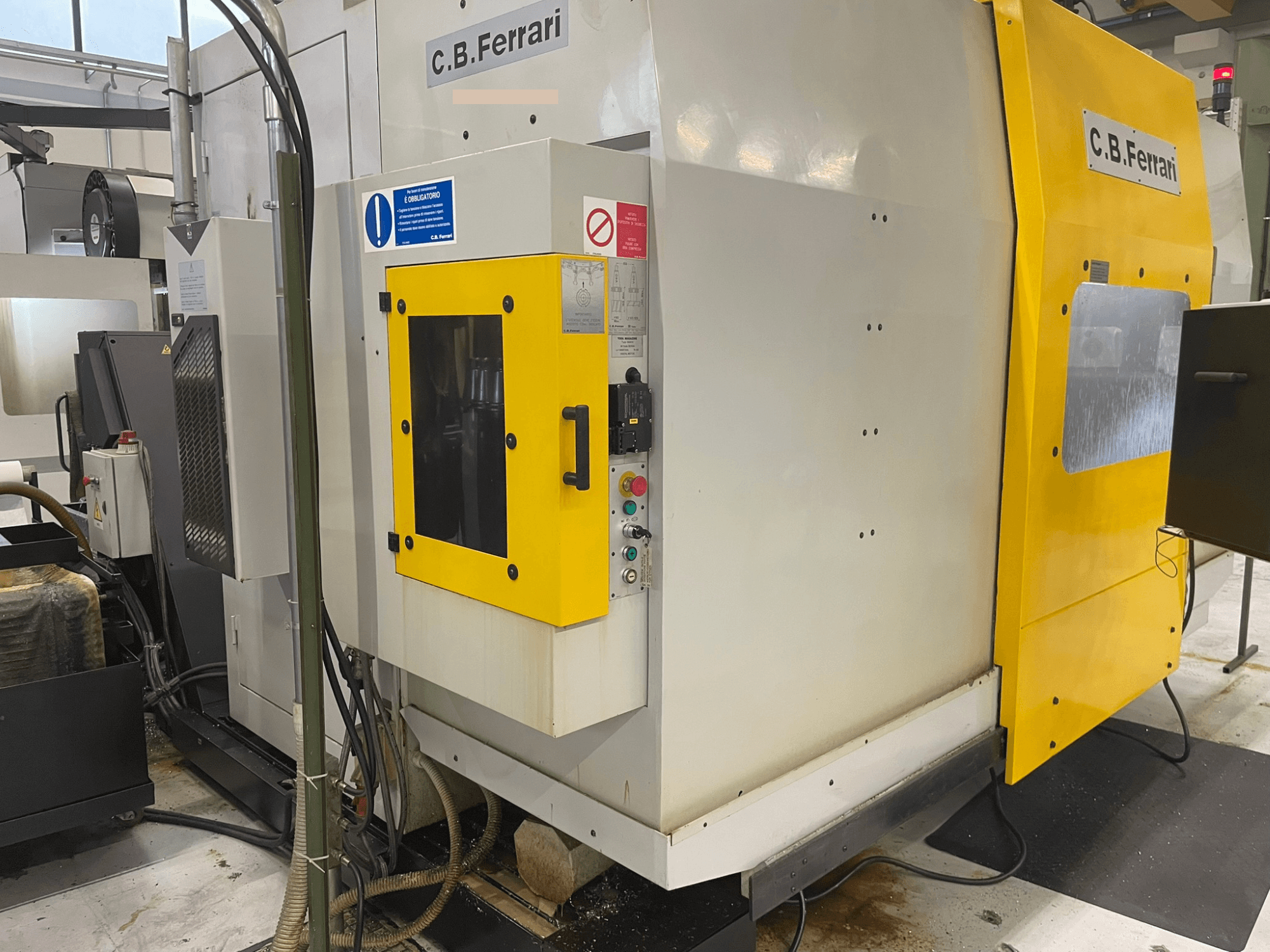

C.B. Ferrari - A186 IT-MIL-CBF-2010-00001

Table

• Table size: 525 × 2320 mm

• T-slots: 14 × 70 (No. 6)

Feed rates and rapid traverse

• Feed rate (X): 0–40 m/min

• Feed rate (Y/Z): 0–30 m/min

• Rapid traverse (X): 40 m/min

• Rapid traverse (Y/Z): 30 m/min

Axis forces

• X: 6500 N

• Y/Z: 15000 N

Measurement and accuracy

• Linear scale resolution (X/Y/Z): 0.0001 mm

• Positioning accuracy (X/Y/Z): 0.010 mm

• Repeatability (X/Y/Z): 0.005 mm

Power

• Maximum power: 40 kW

Electrical and utilities

• Voltage: 400 V ±10%, 50 Hz, 3-phase

• Compressed air: minimum 6 bar

Environmental conditions

• Operating temperature: 6–45 °C

• Humidity: <85%

Spindle

• Electrospindle “S”: 68 Nm

• Resolver: Tamagawa

• With electronic converter

Drive motors and feedback

• X-axis motor: 26.1 Nm, 3000 rpm; Encoder: Heidenhain LC 183/20–1640

• Y-axis motor: 26.1 Nm, 3000 rpm; Encoder: Heidenhain LC 183/20–540

• Z-axis motor: 27 Nm, 3000 rpm; Encoder: Heidenhain LC 183/20–440

Additional axes (dividing units)

• A-axis: 300 Nm, 200 rpm; Encoder: Heidenhain RCN 729

• B-axis: 27 Nm, 3000 rpm; Encoder: Heidenhain RCN 729

Tool magazine

• 30-tool unit: 11 Nm, 3000 rpm; Encoder: Heidenhain ECN 413/512
