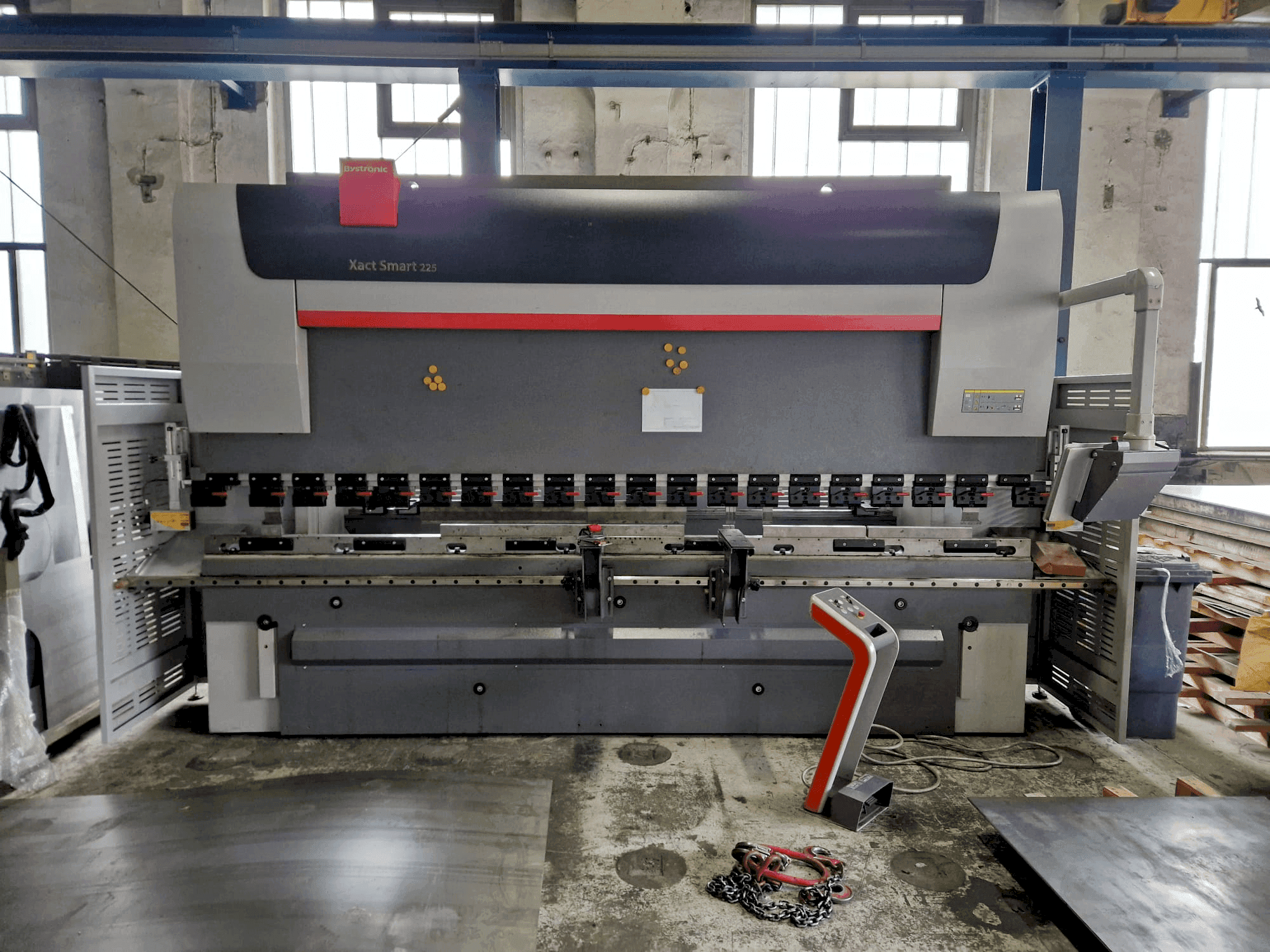

Front view of Bystronic Xact Smart 225/4100 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Bystronic Xact Smart 225/4100

Photo Gallery

Bystronic - Xact Smart 225/4100DE-BEN-BYS-2021-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Bystronic Xact Smart 225/4100 | Press For Sale

Show in original language

This 4-axis Bystronic Xact Smart 225/4100 press brake was manufactured in 2021. It features a press force of 2250 kN, a bending length of 4100 mm, and a throat depth of 400 mm. The machine includes a 4-axis back gauge and a high-speed package that enhances working speeds up to 13 mm/s. If you are looking to get high-quality bending capabilities, consider the Bystronic Xact Smart 225/4100 machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: Bystronic
year: 2021
MODEL: Xact Smart 225/4100
application type: Bending
Location: Germany
machine type: Press Brake

Technical Information - Bystronic Xact Smart 225/4100

Dimensions

Machine Depth: 4910 mm
Machine Height: 2780 mm
Machine Weight: 15000 kg

Movement

Number of Axes: 4
X-axis Travel: 600 mm
Z-axis Travel: 2800 mm

Technical Specification

Bending Length: 4100 mm
Max. Stroke: 200 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Press force: 2250 kn
Installation height: 480 mm
Distance between uprights: 3420 mm
Throat depth: 400 mm
Back gauge (x-axis) max range: 850 mm // back gauge (x-axis) speed: 600 mm/s
R-axis (height adjustment) speed: 200 mm/s
Z-axis (lateral adjustment) speed: 1000 mm/s
Max rapid speed: 140 mm/s // rapid speed with high-speed package: 160 mm/s
Max working speed: 10 mm/s
Working speed with high-speed package: 13 mm/s

Extra Information

Tools Dies: V16/30° L=515 mm: 5x V16/30° L=550 mm sect.: 1x Punches: 1014/88° R=0.8 L=835 mm EURO-B: 3x 1014/88° R=0.8 L=835 mm EURO-B sect.: 1x 1012/35° R=0.8 L=835 mm EURO-B: 3x 1012/35° R=0.8 L=835 mm EURO-B sect.: 1x

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
