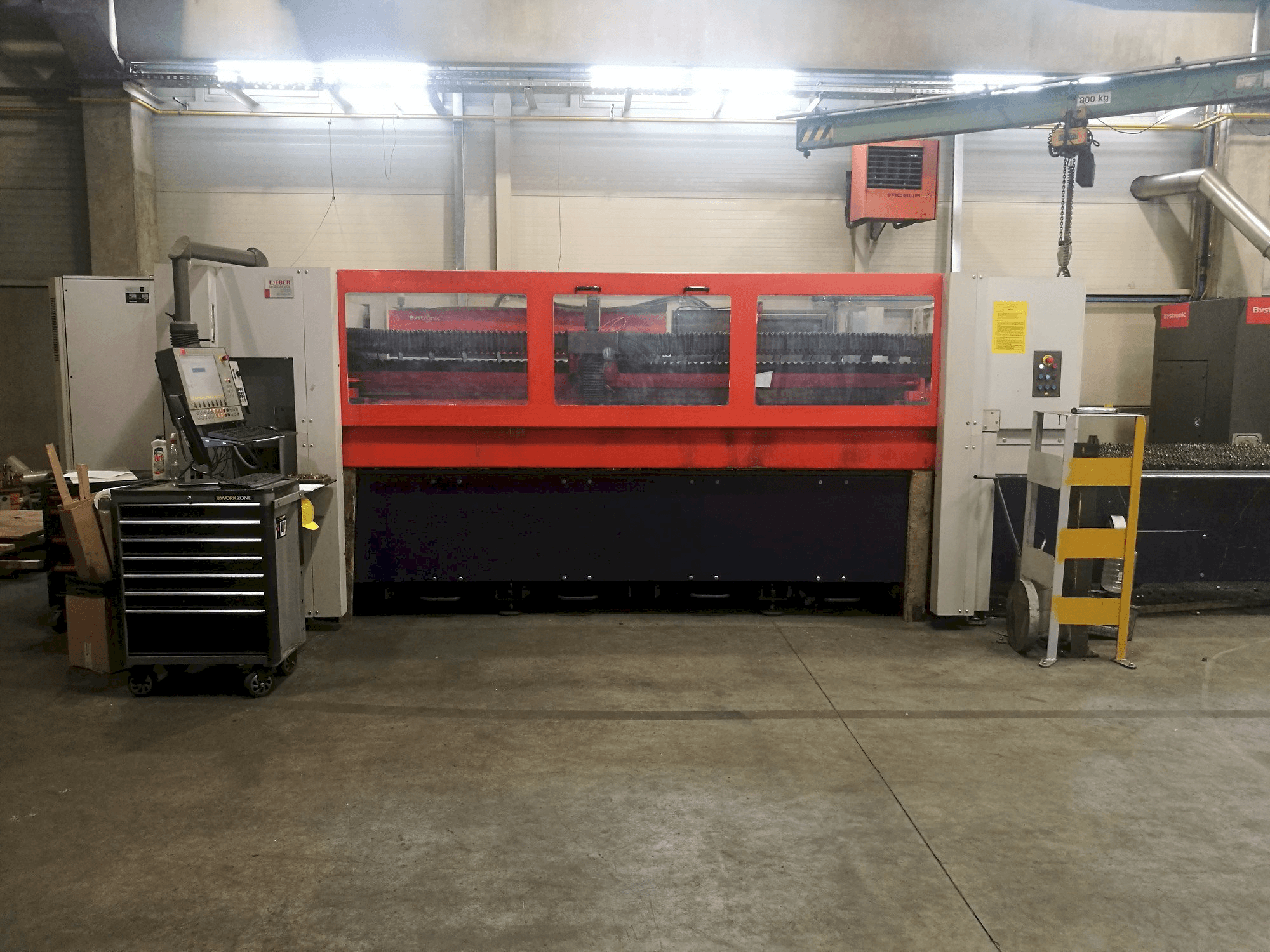

Front view of Bystronic Bystar 3015 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Bystronic Bystar 3015

Photo Gallery

Bystronic - Bystar 3015HR-LAS-BYS-2005-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Bystronic Bystar 3015 | Laser Cutting Machine

Show in original language

This Bystronic Bystar 3015 Laser Cutting Machine was built in 2005 in Switzerland and has been operative for 2814 hours. Equipped with a Bystronic MMC P6016 Control unit, this machine is capable of cutting steel up to 20 mm of thickness with a laser power of 4.4 kW.

Overview

brand: Bystronic
year: 2005
MODEL: Bystar 3015
production hours: 28141
application type: Cutting
Location: Croatia
machine type: CO2 Laser Cutting Machine
control unit brand: BYSTRONIC

Technical Information - Bystronic Bystar 3015

General Data

Measurements width: 12000 mm
Measurements depth: 7000 mm
Measurements height: 2000 mm
Machine weight: 16600 kg

Control Unit

Model: MMC P6016
CNC main language: German
Brand: BYSTRONIC

Main drive

Laserpower: 4,4 kW
Laser brand: Bystronic Bylaser 4400

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 170 mm
U-Axis Movement: d130 mm

Workpiece

Workpiece weight: 890 kg

Max Material thickness

Steel: 20 mm
Stainless steel: 16 mm
Aluminum: 10 mm

Media

Main electronic connection: 3f 400V 50Hz
Power consumption: 62 kVa

Additional equipment

- 4th axis chuck up to d130mm tube cutting
- Filter unit
- Chiller unit

Additional Information

Machine history

Material type: Stainless steel, black steel, aluminum
Material thickness: 20, 16, 10 mm
End product: Plates
Industries: Various industry, cutting on demand

Machine Benefits

Technical Machine Benefits:
- - 4th axis for rotation/cutting pipes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
