- ➤ Used Bystronic BySprint Fiber 4020 6 kW | Laser Cutting

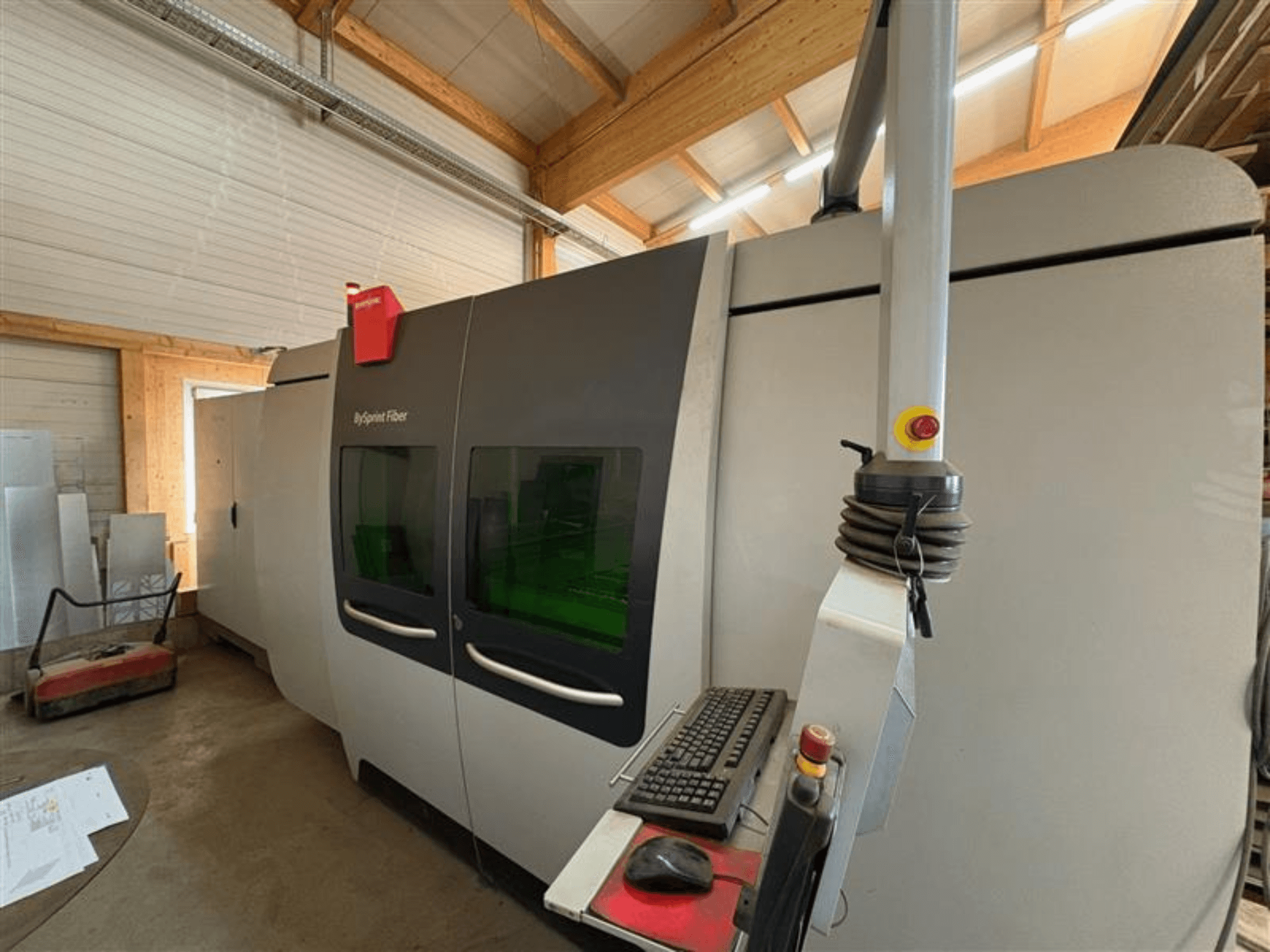

This 3-axis Bystronic BySprint Fiber 4020 6 kW was manufactured in 2017. It features a working area of 4064 mm in the X-axis and 2024 mm in the Y-axis, with a maximum sheet size of 4000 × 2000 mm and a maximum sheet weight of 890 kg. If you are looking to get high-quality laser cutting capabilities, consider the Bystronic BySprint Fiber 4020 6 kW machine we have for sale. Contact us for further details.
Overview
- brand: Bystronic
- year: 2017
- MODEL: BySprint Fiber 4020 6 kW
- application type: Cutting
- Location: Germany
- machine type: Fiber Laser Cutting Machine
Technical Information - Bystronic BySprint Fiber 4020 6 kW
Movement
- Number of Axes: 3
- X-axis Travel: 4064 mm
- Y-axis Travel: 2024 mm
- Z-axis Travel: 70 mm
Technical Specification
- Laser Power: 6 kW
Additional Information
Maximum sheet size: 4000 × 2000 mm
Maximum sheet weight: 890 kg
Positioning speed X/Y: up to 169 m/min
Simultaneous positioning speed: up to 169 m/min
Positioning accuracy: ±0.05 mm
Repeatability: ±0.03 mm
CNC control system: Bystronic CNC control
Power supply: 3 × 400 V
Frequency: 50 Hz
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
