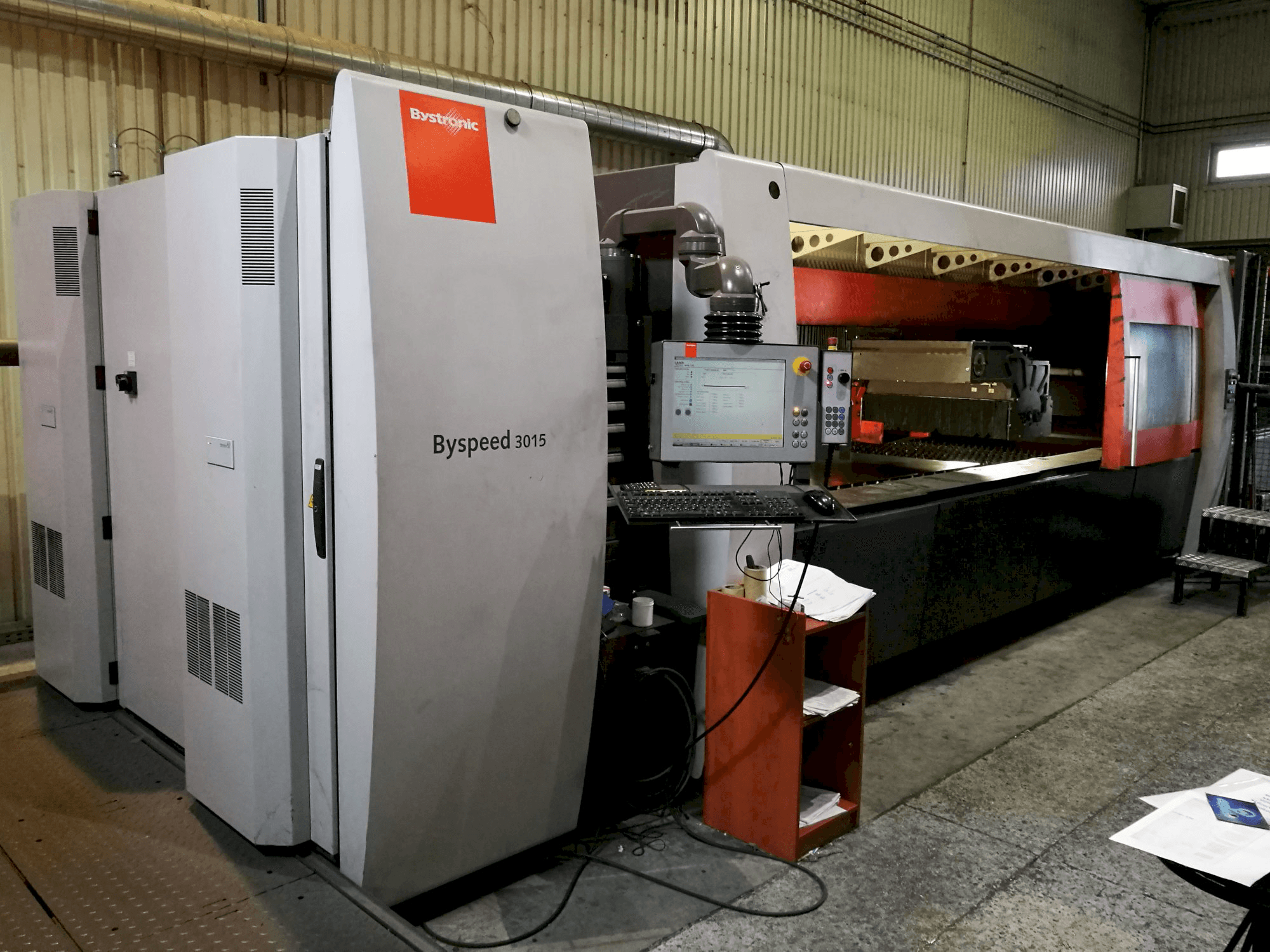

Right view of Bystronic BySpeed Pro 3015 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Bystronic BySpeed Pro 3015

Photo Gallery

Bystronic - BySpeed Pro 3015HU-LAS-BYS-2009-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Bystronic BySpeed Pro 3015 Laser Cutting Machine

Show in original language

This Bystronic BySpeed Pro 3015 Laser Cutting Machine from Switzerland was manufactured in 2009 and has a working time of 35320 production hours. This versatile machine, which is equipped with a Bystronic P8106 Control unit, has mainly worked with steel, stainless steel and aluminum during the past. Must be noted that he turbo blower hours are 10000, that need to be changed every 40000h. Additional equipment is included within the machine.

Overview

brand: Bystronic
year: 2009
MODEL: BySpeed Pro 3015
production hours: 35320
application type: Cutting
Location: Hungary
machine type: CO2 Laser Cutting Machine
control unit brand: BYSTRONIC

Technical Information - Bystronic BySpeed Pro 3015

General Data

Measurements width: 16950 mm
Measurements depth: 5415 mm
Measurements height: 3145 mm
Machine weight: 22800 kg

Control Unit

Model: P8106
CNC main language: English
CNC language customizable: Yes
Brand: BYSTRONIC

Main drive

Laserpower: 6 kW
Laser type: CO2
Laser brand: Bystronic ByLaser 6000

Movement

X-AXIS Movement: 3086 mm
Y-AXIS Movement: 1562 mm
Z-AXIS Movement: 100 mm

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm
Workpiece weight: 890 kg

Max Material thickness

Steel: 25 mm
Stainless steel: 25 mm
Aluminum: 15 mm

Media

Main electronic connection: 400 V
Power consumption: 78 kVA

Additional equipment

- ByTrans 3015 (S/N 98) 4500kg
- ByLaser 6000 (S/N R0920040) 1800kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
