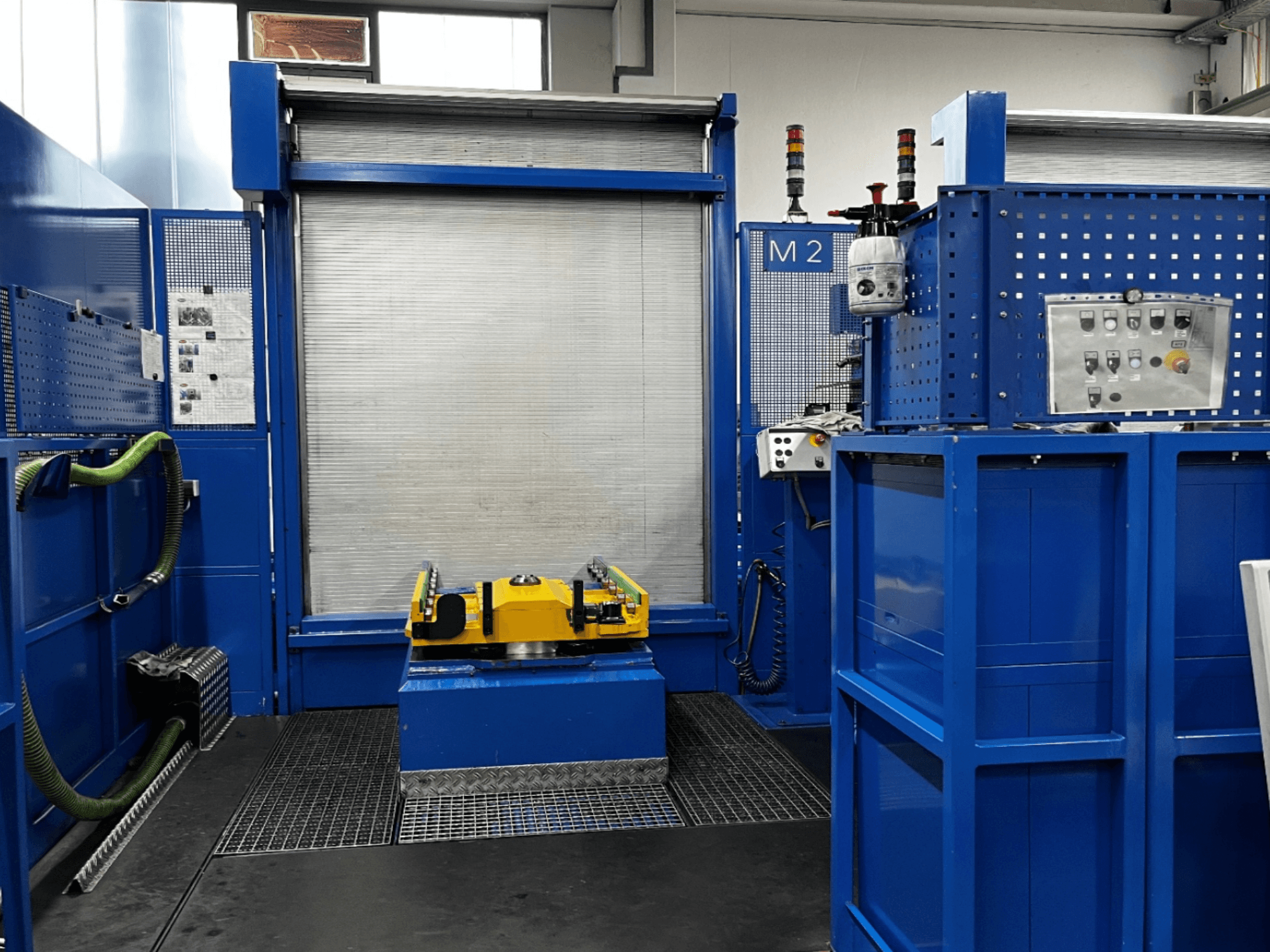

This 4-axis BW MCX750 M2 was manufactured in 2011. It features a substantial X-axis travel of 1100 mm, Y-axis travel of 900 mm, and Z-axis travel of 1250 mm. The machine has a maximum pallet load of 1500 kg and a magazine capacity of 240 positions. If you are looking to get high-quality machining capabilities, consider the BW MCX750 M2 horizontal machining centre we have for sale. Contact us for further details.
Overview
- brand: BW
- year: 2011
- MODEL: MCX750 M2
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - BW MCX750 M2
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Dimensions
- Machine Height: 4000 mm
- Machine Length: 6000 mm
- Machine Weight: 12000 kg
- Machine Width: 6000 mm
- Table Load: 1500 kg
Movement
- Number of Axes: 4
- X-axis Travel: 1100 mm
- Y-axis Travel: 900 mm
- Z-axis Travel: 1250 mm
Technical Specification
- Max. Tool Weight: 60 kg
- Number of Tools: 240
- Spindle Speed: 5500 RPM
- Taper Size: SK 50
Additional Information
Maintenance contract: Yes
Utilization: 70%
Shifts: 2
Number of revolvers/magazines: 1
Magazine capacity: 240 positions
Pallet size: 800 x 800 mm
Drive power: 50 kW
Maximum torque: 1650 Nm
Maximum tool length: 750 mm
Maximum tool diameter: 350 mm
Additional equipment
Tooling available (approx.):
Group 1: 700–750 tools (Ø up to 124.9 mm)
Group 2: 100–150 tools (Ø 125–224.9 mm)
Group 3: 50 tools (Ø 225–350 mm)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
