Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Burkhardt-Weber - MCX 900AT-MIL-BUR-2002-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Burkhardt-Weber MCX 900 For Sale | gindumac.com

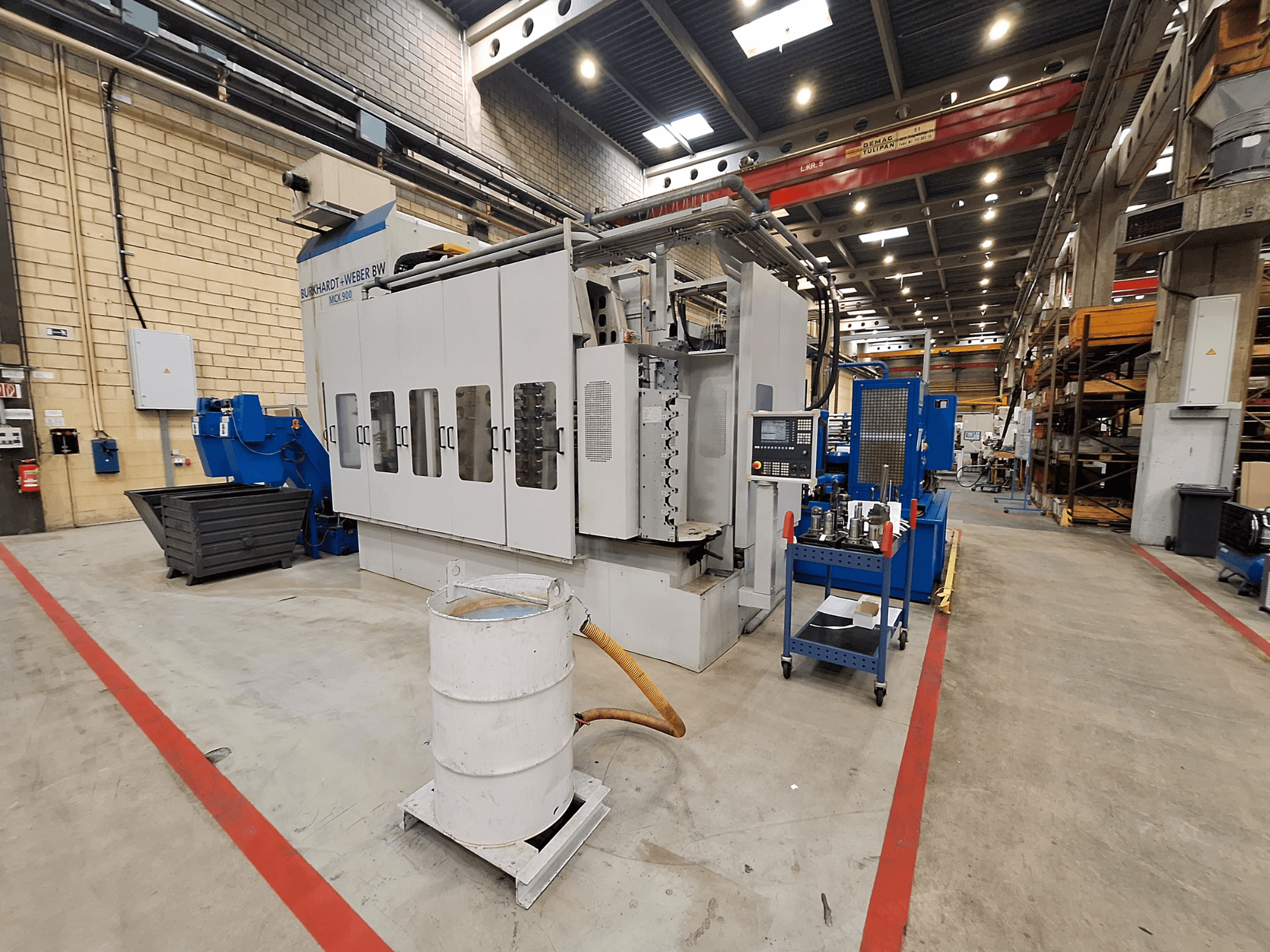

This 4-axis Burkhardt-Weber MCX 900 was manufactured in 2002. It features a horizontal machining center with a 2-pallet changer, rotatable pallets at the loading station, and a Siemens 840D control. The machine includes a storage rack tool magazine with 264 tool positions and a tool setup station. It offers a spindle speed of up to 6000 rpm and a rapid traverse of 40 m/min in XYZ. Consider the opportunity to buy this Burkhardt-Weber MCX 900 horizontal machining centre. Contact us for more information.
Overview
- brand: Burkhardt-Weber
- year: 2002
- MODEL: MCX 900
- application type: Milling
- Location: Austria
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - Burkhardt-Weber MCX 900
Control Unit
- Control Brand: SIEMENS
Movement
- Number of Axes: 4
Technical Specification
- Spindle Speed: 6000 RPM
- Taper Size: HSK 100
Additional Information
Machine: Horizontal 4-axis machining center MCX900
Control: Siemens 840D
Axes/Working area (XYZB): 1600 mm x 1400 mm (starting 150 mm above table edge) x 1500 mm x 360°
Pallet size: 800 x 1000 mm
Max permissible pallet weight (part + fixture): 3150 kg (pallet 800 kg)
HSK100 taper
Power supply: 400 V, 75 kW, 130 A
Rapid traverse: XYZ 40 m/min; B 20 rpm
Max machining force: XYZ 20 kN; B tangential torque 20,000 Nm
Additional equipment
2-pallet changer; pallet rotatable at loading station
Number of pallets: 6
Storage rack tool magazine with 264 tool positions
Tool setup station for loading during machining runtime
Renishaw wireless touch probe
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
