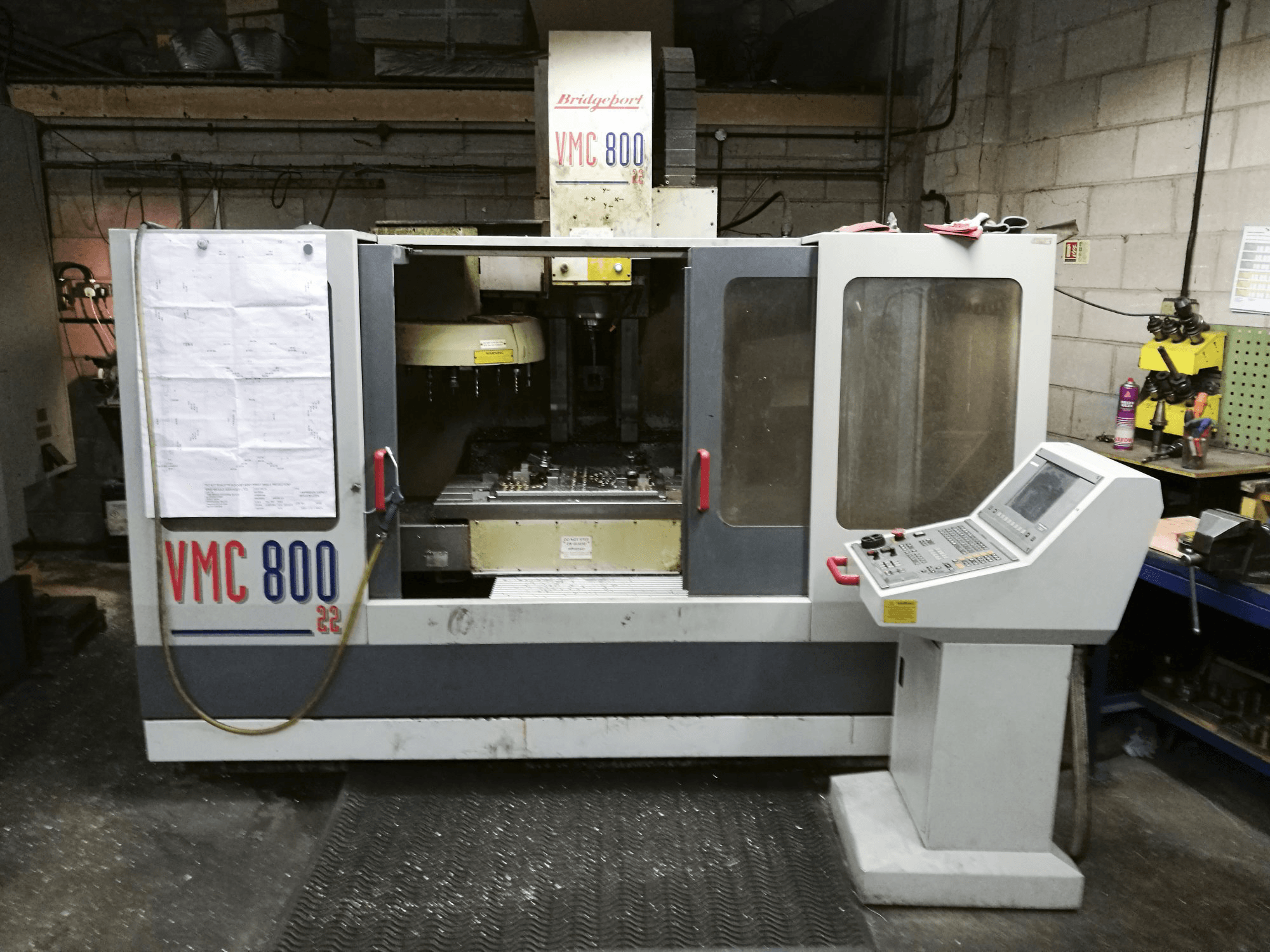

Front view for Bridgeport VMC 800.22 machine

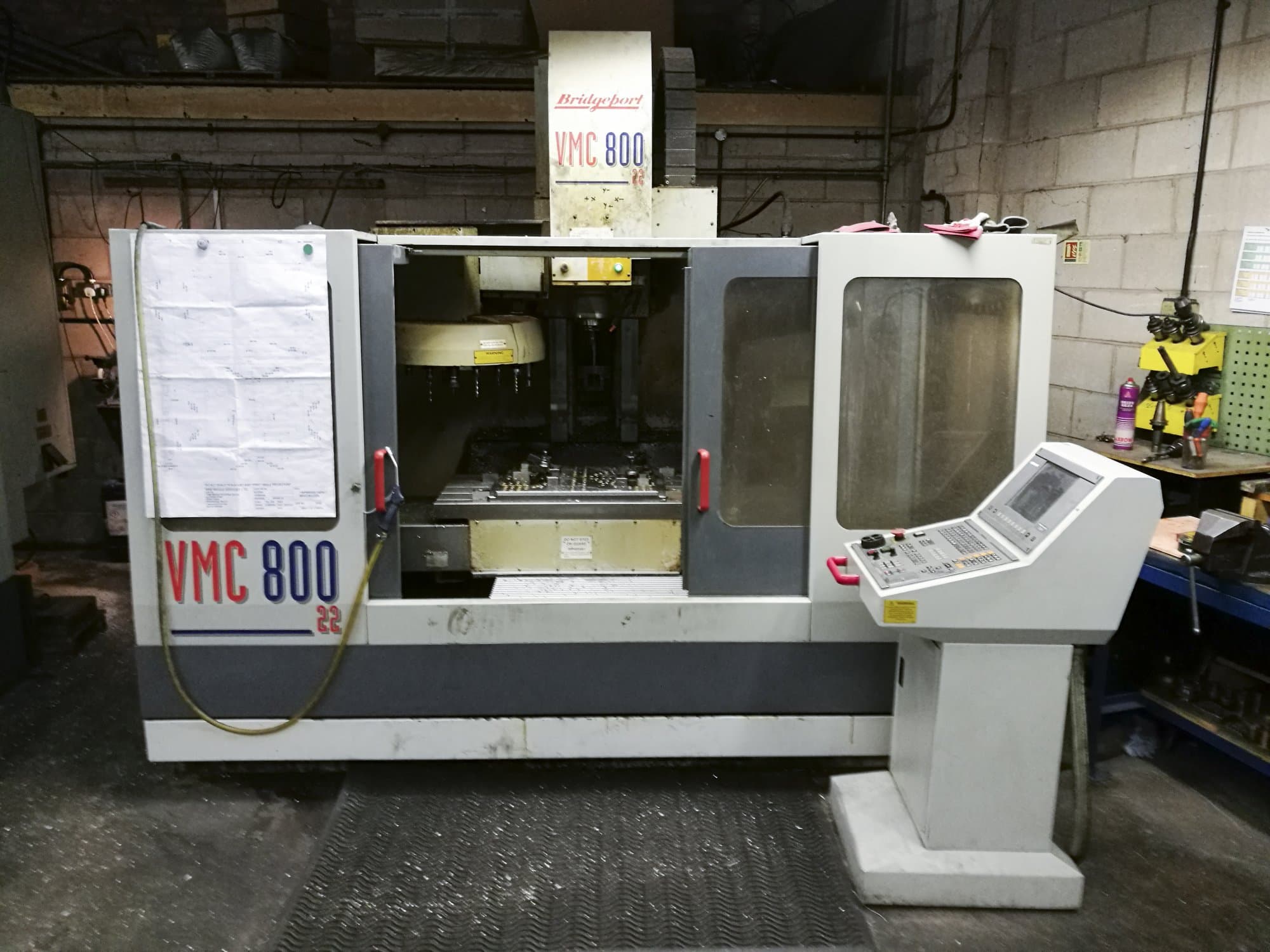

Front view for Bridgeport VMC 800.22 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Bridgeport - VMC 800.22GB-MIL-BRI-1997-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Bridgeport VMC 800.22 Machining Center from 1997 is operated through a HEIDENHAIN control unit. Aside from its 900-kilogram workpiece weight capacity, the machine stands out for its 22x tool changer.

Overview

  • brand: Bridgeport
  • year: 1997
  • MODEL: VMC 800.22
  • application type: Milling
  • Location: United Kingdom
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - Bridgeport VMC 800.22

General Data

  • Measurements width: 3000 mm
  • Measurements depth: 2000 mm
  • Measurements height: 2300 mm
  • Machine weight: 3600 kg

Control Unit

  • Brand: HEIDENHAIN

Main drive

  • Number of spindles: 1
  • Spindle speed range: 40-6000 1/min
  • Tool taper: BT40

Movement

  • X-AXIS Movement: 800 mm
  • Y-AXIS Movement: 510 mm
  • Z-AXIS Movement: 500 mm

Workpiece

  • Workpiece weight: 900 kg

Table

  • Outer length: 1000 mm
  • Outer width: 490 mm
  • Number of tslots: 5

Tools

  • Slots in storage: 22
  • Max tool length: 250 mm

Media

  • Main electronic connection: 400 V / 50 Hz
  • Power consumption: 11 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
