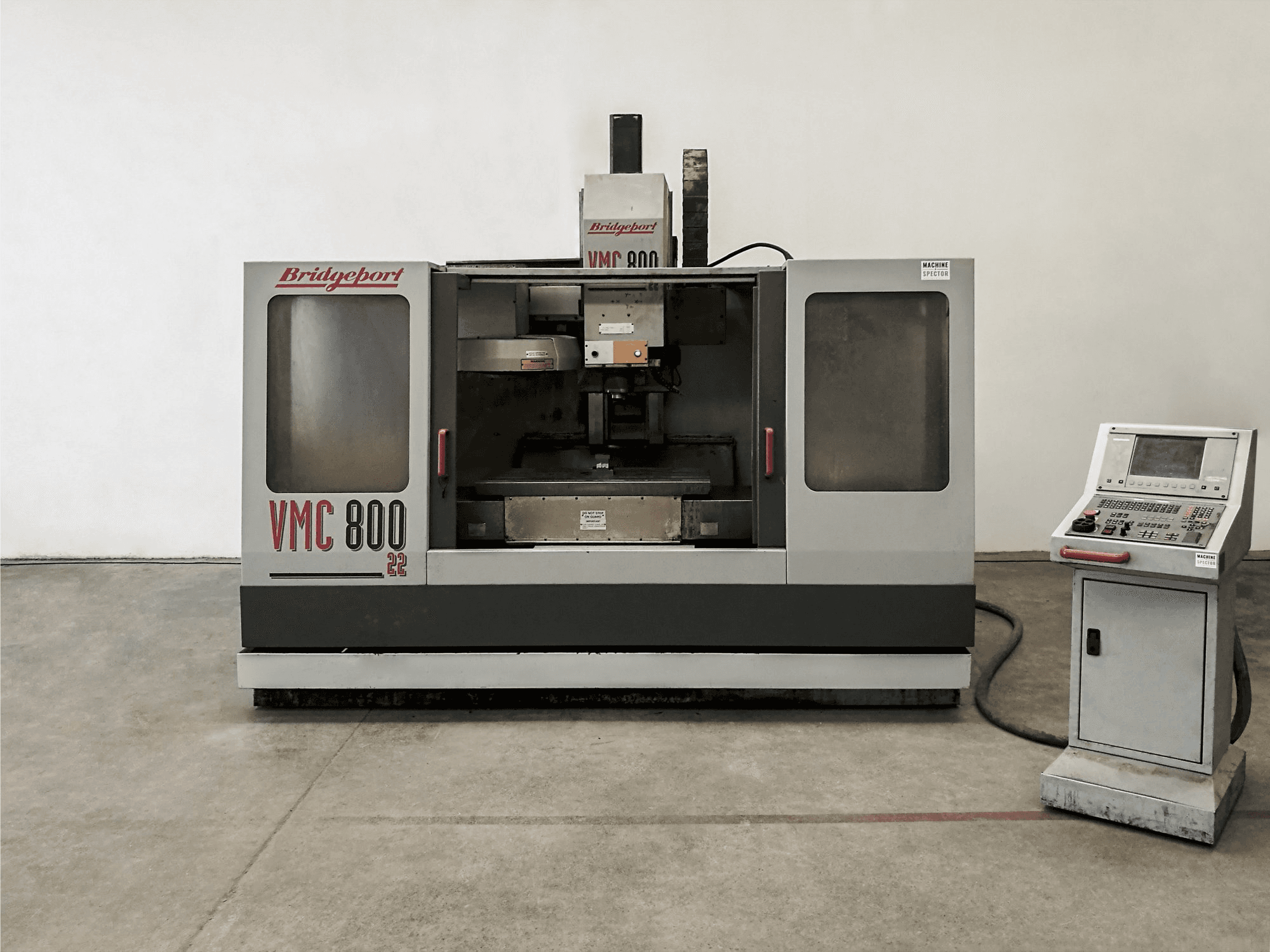

Front view of Bridgeport VMC 800.22 Machine
Front view of Bridgeport VMC 800.22 Machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Bridgeport - VMC 800.22ES-MIL-BRI-1997-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Bridgeport VMC 800.22 Vertical Machining Center was manufactured in 1997 in the United Kingdom and has been operative for 24188 productions hours since then. Operated through a HEIDENHAIN TNC 426 Control unit, this model is DNC-ready and can receive CAM programs via ethernet. The machine stands out due to its maximum table load of 750kg and performs tool changes in 5.2 seconds.

Overview

  • brand: Bridgeport
  • year: 1997
  • MODEL: VMC 800.22
  • production hours: 24188
  • application type: Milling
  • Location: Spain
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - Bridgeport VMC 800.22

General Data

  • Measurements width: 2830 mm
  • Measurements depth: 2160 mm
  • Measurements height: 2595 mm
  • Machine weight: 3480 kg

Control Unit

  • Model: TNC 426
  • Brand: HEIDENHAIN

Main drive

  • Number of spindles: 1
  • Spindle speed range: 40-6000 1/min
  • Spindle motor power: 11 kW
  • Tool taper: BT 40

Movement

  • X-AXIS Movement: 800 mm
  • X-AXIS Rapid traverse: 40 m/min
  • X-AXIS Accuracy: 0.005 mm
  • Y-AXIS Movement: 510 mm
  • Y-AXIS Rapid traverse: 40 m/min
  • Y-AXIS Accuracy: 0.005 mm
  • Z-AXIS Movement: 500 mm
  • Z-AXIS Rapid traverse: 25 m/min
  • Z-AXIS Accuracy: 0.005 mm

Workpiece

  • Workpiece weight: 750 kg

Table

  • Outer length: 1000 mm
  • Outer width: 490 mm
  • TSlots size: 100 mm
  • Number of tslots: 5

Tools

  • Slots in storage: 22
  • Max weight: 6 kg
  • Max tool diameter: 130 mm
  • Max tool length: 250 mm

Media

  • Main electronic connection: 420 V / 50 Hz / 3P
  • Power consumption: 20 kVA
  • Air pressure: 5.5 bar
  • Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
