- ➤ Used BOSCHERT Multipunch 1500 x 3000 | Punching Machine

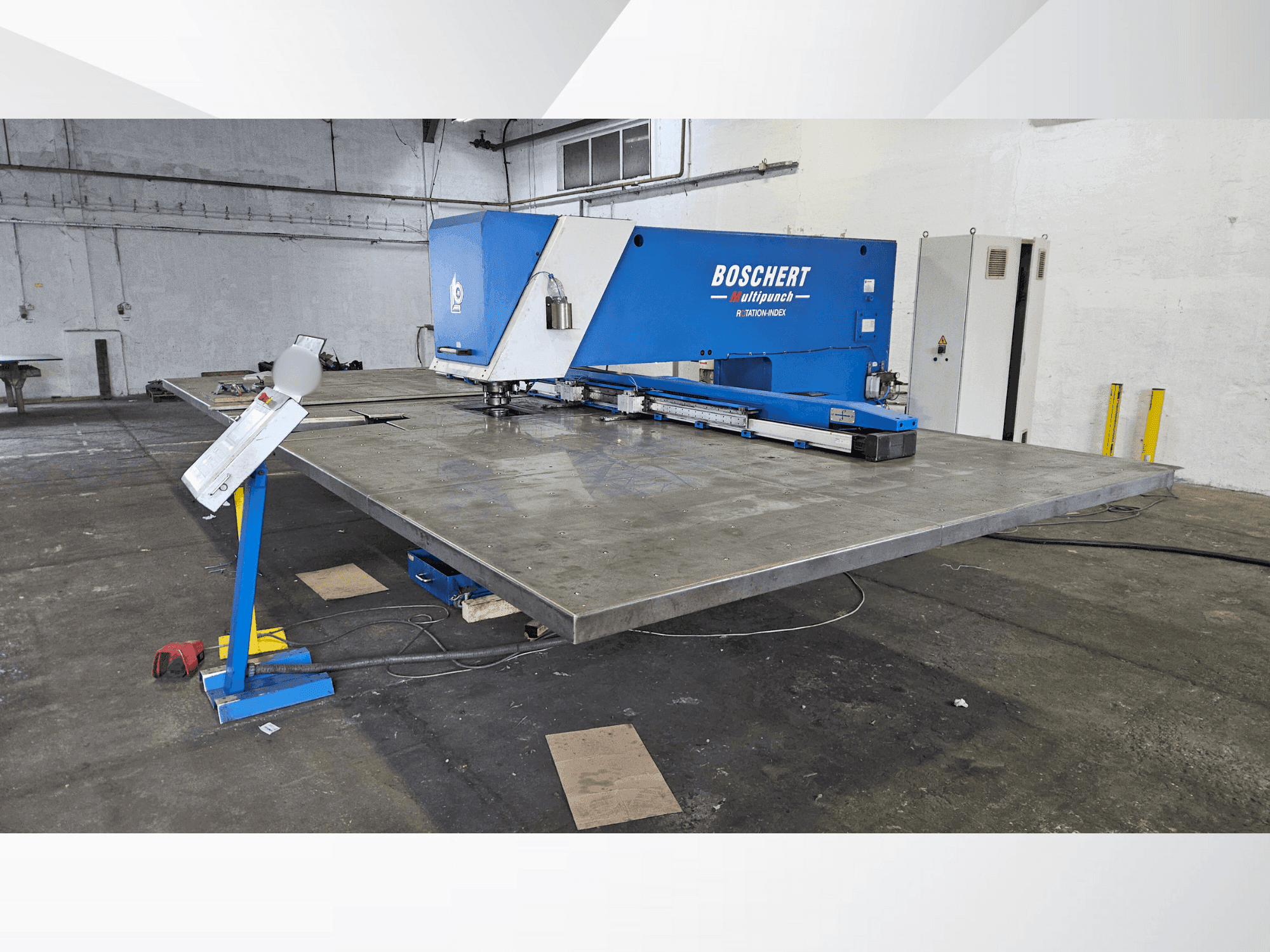

This BOSCHERT Multipunch 1500 x 3000 was manufactured in 2011. A robust CNC punching machine, it offers precision and efficiency for your sheet metal operations. Ideal for a variety of punching applications, ensuring consistent performance. Contact us for more information.
Overview
- brand: BOSCHERT
- year: 2011
- MODEL: Multipunch 1500 x 3000
- application type: Punching
- Location: Hungary
- machine type: CNC Punching Machine
- control unit brand: BOSCHERT
Technical Information - BOSCHERT Multipunch 1500 x 3000
General Data
- Measurements width: 4413 MM
- Measurements depth: 5860 MM
- Measurements height: 2263 MM
- Machine weight: 14500 KG
Control Unit
- Brand: BOSCHERT
Main drive
- Maximum sheet thickness: 6 mm
Movement
- X-AXIS Movement: 3430 mm
- Y-AXIS Movement: 2670 mm
- Z-AXIS Movement: 1500 mm
Additional Information
Additional equipment
- 8 Station Automatic Tool Change tooling, system TRUMPF
- Rotation with stepless Index (360°) of all tools
- Up to 64 Tools available (with Revotools)
- Very short time for tool change
- All standard Trumpf tools may be used
- Clamp system for automatic material handling with 2 clamps
- Stepless programmable clamp positioning
- Automatic repositioning of the clamps with 2 sheet hold downs for sheets up to 9999 mm
Machine Benefits
Qualitative Machine Benefits
- The following retrofit has been done in the machine:
- Replacement of the x-axis linear bearing
- Replacement of the labod controller
- Replacement of the festo pneumatic cylinder
- Replacement of the pneumatic hoses
- Replacement of the gripper clip
Technical Machine Benefits
- Axial motion: x: 0 - 2580 mm y: 0 - 1310 mm
- Max. Positioning speed: 60 m/min
- Adjustable positioning speed
- Positioning accuracy of the stops: 0. 1 mm
- Y-axis with 2 ballscrew driven guide carriages left and right next to the machine table
- X-axis with ballscrew and 4 recirculating ball carriages
Extra Information
The machine is still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
