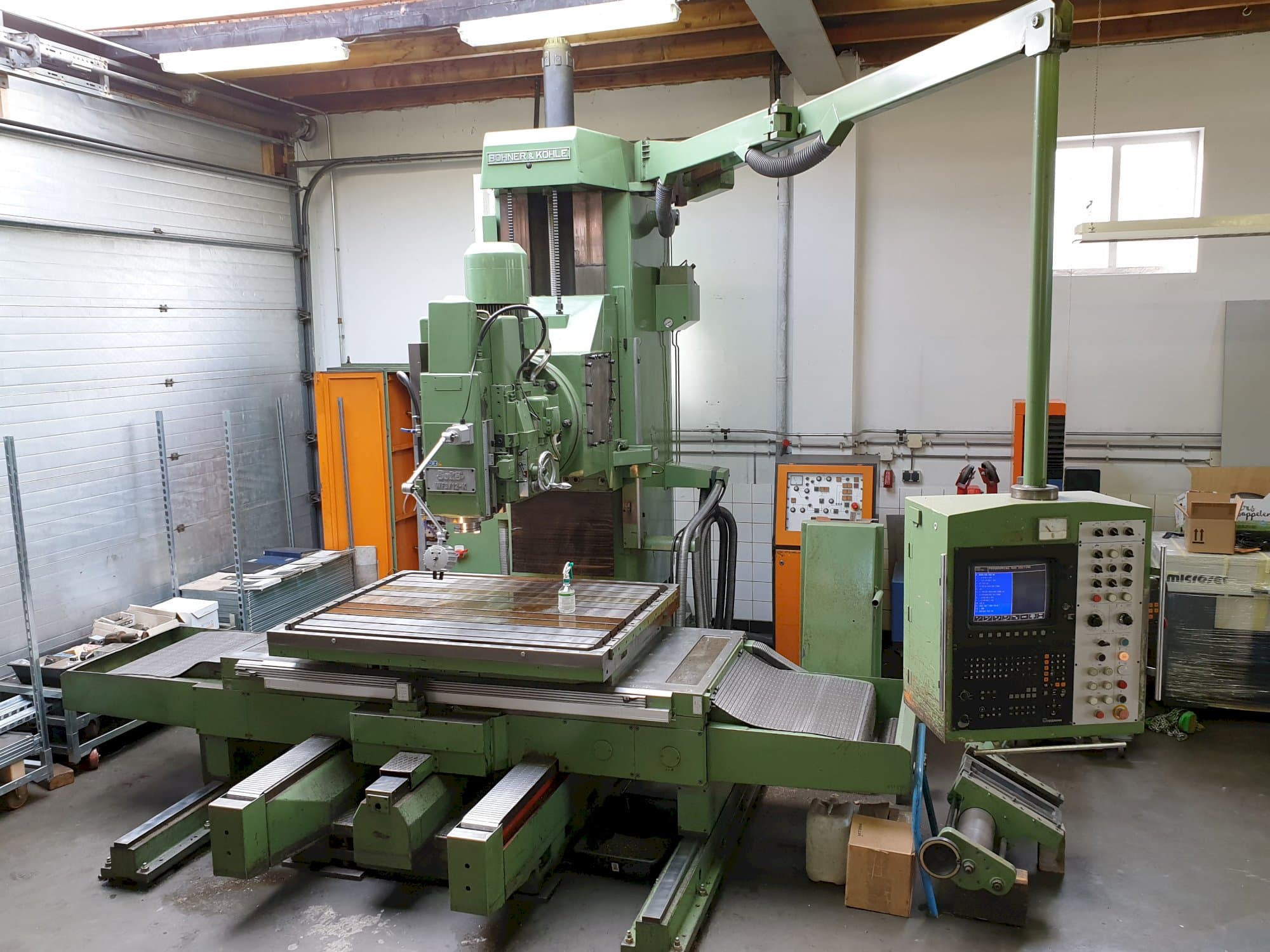

This Bokö WF3 Milling Machine was manufactured in 1989 in Germany and has a production record of only 3900 working hours since then. Operated through a HEIDENHAIN TNC 415 Control unit, this universal vertical boring and milling machine counts with 6 axis. It stands out due to its strong performance in no downtime; and for being a single column machine with large longitudinal, cross and vertical traverses. During the past, it has mainly worked with steel, stainless steel and aluminium up to 12mm of thickness for the automotive industry. It presents very good conditions and maintenance.
Overview
- brand: Bokö
- year: 1989
- MODEL: WF3
- production hours: 3900
- application type: Milling
- Location: Netherlands
- machine type: CNC Milling Machine
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - Bokö WF3
General Data
- Measurements width: 2530 mm
- Measurements depth: 3850 mm
- Measurements height: 3500 mm
- Machine weight: 19000 kg
Control Unit
- Model: TNC 415
- CNC main language: English
- CNC language customizable: Yes
- Brand: HEIDENHAIN
Main drive
- Number of spindles: 1
Movement
- X-AXIS Movement: 1800 mm
- Y-AXIS Movement: 1200 mm
- Z-AXIS Movement: 860 mm
- B-AXIS Movement: 90° MM
- C-AXIS Movement: 360° MM
Table
- Outer length: 800 mm
- Outer width: 450 mm
- Number of tslots: 1
- Distance between: 10 x 18 mm
Tools
- Slots in storage: 1
- Max weight: 15 kg
- Max tool diameter: 100 mm
Media
- Main electronic connection: 380 V
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
