BLM - ADIGE-SYS LT COMBOES-LAS-BLM-2010-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- BLM ADIGE-SYS LT COMBO Laser Cutting Machine

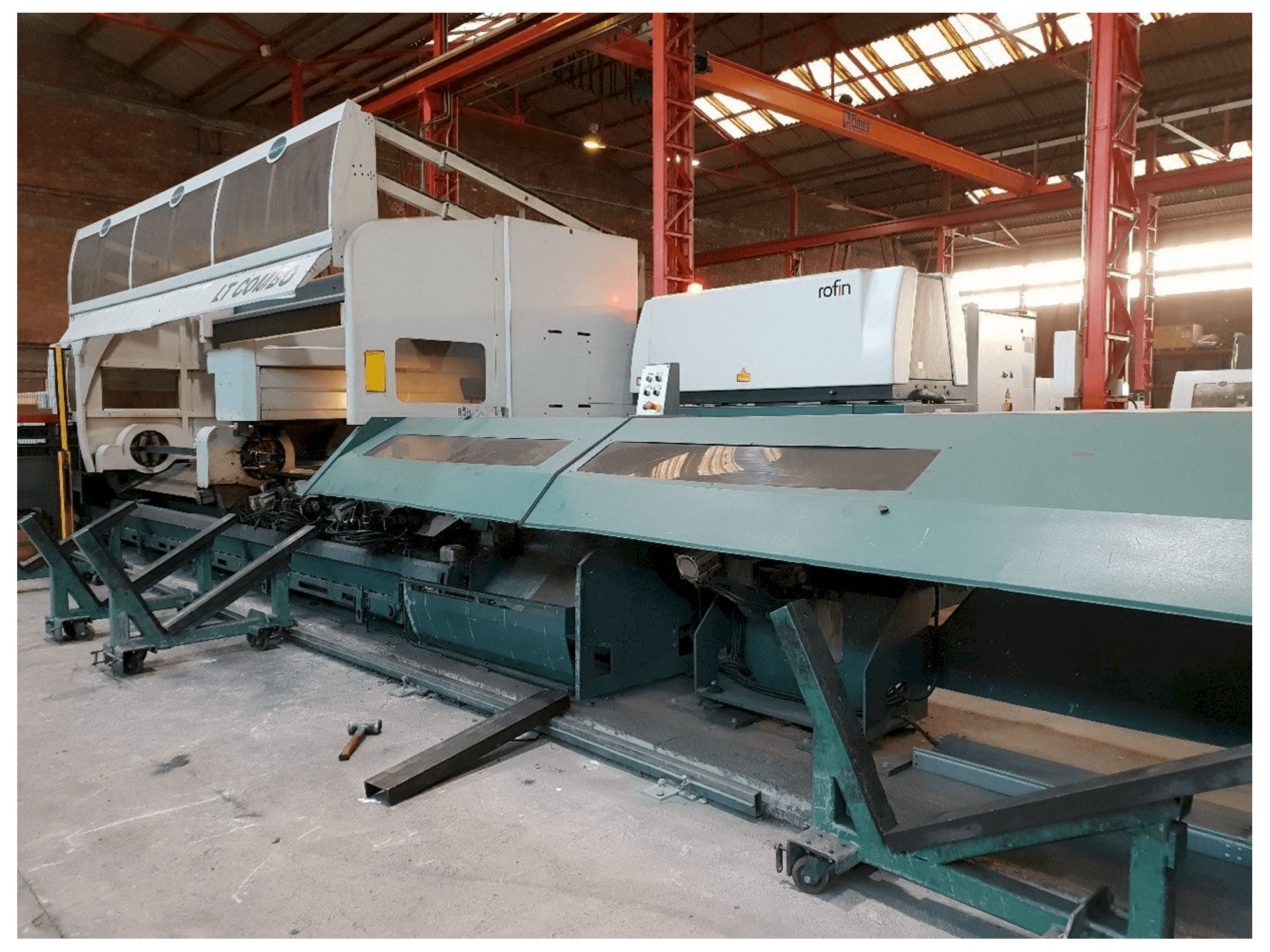

This BLM ADIGE-SYS LT COMBO Laser Cutting Machine was made in 2010 in Italy and has been operative for 18000 hours. Operated through a SIEMENS SINUMERIK 840D Control unit, this machine can work with a laser power of 25 kW. This machine stands out for cutting tubes up to 12500 mm, from where the finished piece comes out up to 9000mm.
Overview
- brand: BLM
- year: 2010
- MODEL: ADIGE-SYS LT COMBO
- production hours: 18000
- application type: Cutting
- Location: Spain
- machine type: Tube Cutting Machine
- availability: Sold
- control unit brand: SIEMENS
Technical Information - BLM ADIGE-SYS LT COMBO
General Data
- Measurements width: 24296 mm
- Measurements depth: 7119 mm
- Machine weight: 25300 kg
Control Unit
- Model: SINUMERIK 840D
- CNC main language: Spanish
- CNC language customizable: Yes
- Brand: SIEMENS
Main drive
- Laserpower: 25 kW
Media
- Main electronic connection: 400 V
- Pump drive power: 70 bar
- Power consumption: 25 kVA
Additional Information
- Technical Machine Benefits:
- - Bar length 12500 mm, max. Length of finished piece 9000 mm
- - Round cross-section 225 mm (max cutting)
- - Square cross-section 160 x 160 mm (max cutting)
- - Rectangular section 200 x 100 mm (max cutting)
- - Round cross-section 60 mm (min cutting)
- - Square section 60x60 mm (min cutting)
- - Rectangular section 60x60 mm (min cutting)
- Qualitative Machine Benefits:
- - Laser cavity was changed at the beginning of 2016
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
