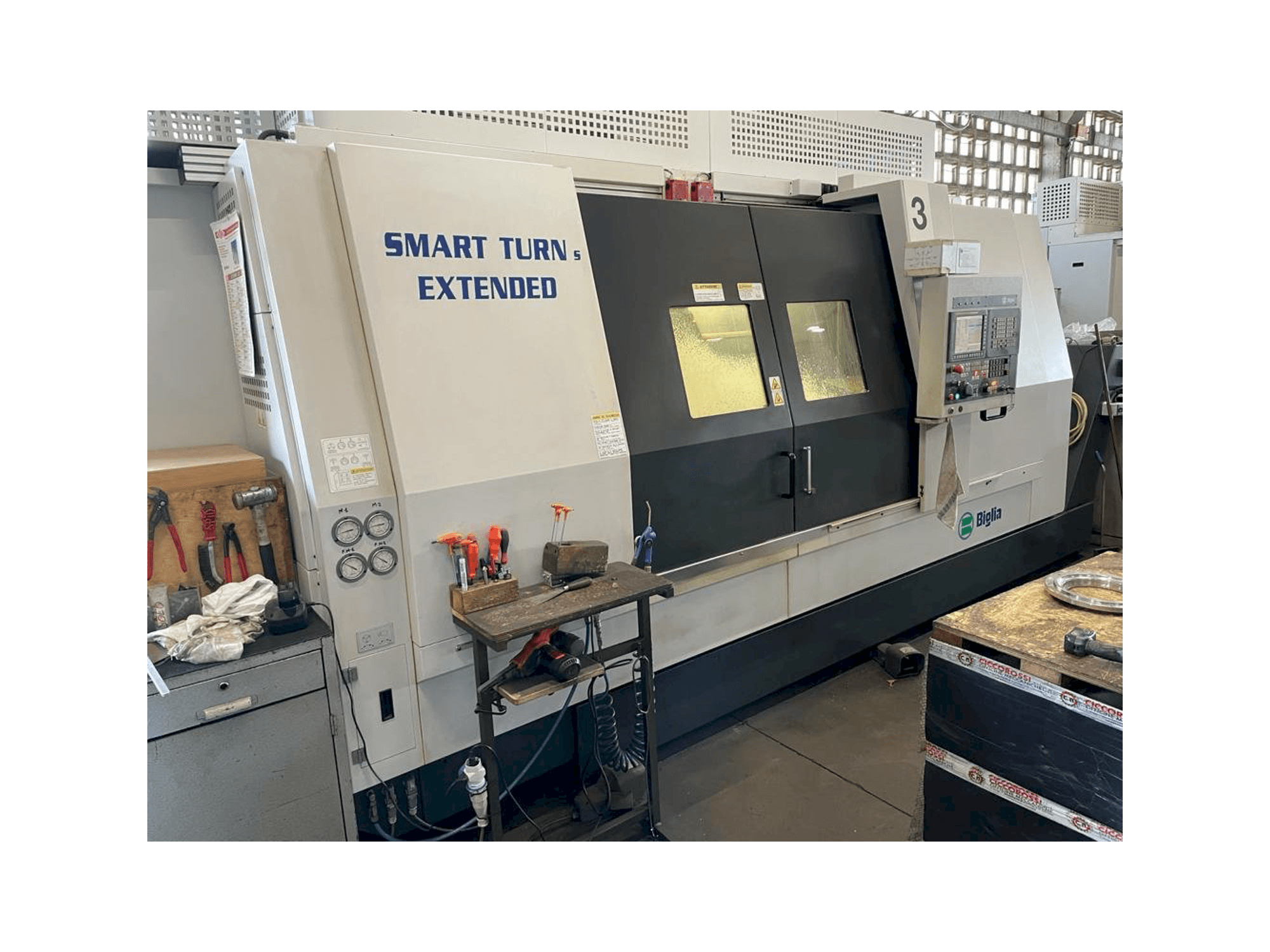

Front view of Biglia Smart Turn S Extended machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Biglia Smart Turn S Extended

Photo Gallery

Biglia - Smart Turn S ExtendedIT-TUR-BIG-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
BIGLIA Smart Turn S Extended lathe machine

Show in original language

This BIGLIA Smart Turn S Extended lathe machine was manufactured in 2013. It has a total of 8670 production hours. The machine is operated through a FANUC 31 i B5 control unit. The machine has a spindle speed up to 3000 rpm. Multitasking lathe with HSK43 milling head with electrospindle termically stabilizated.

Overview

brand: Biglia
year: 2013
MODEL: Smart Turn S Extended
production hours: 8670
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - Biglia Smart Turn S Extended

General Data

Measurements width: 6250 mm
Measurements depth: 2300 mm
Measurements height: 2400 mm
Machine weight: 10500 kg

Control Unit

Model: 31 i B5
Brand: FANUC

Main drive

Spindle speed range: 3000 1/MIN
Tool taper: HSK43

Movement

X-AXIS Movement: 580 mm
Y-AXIS Movement: 210 mm
Z-AXIS Movement: 1390 mm
B-AXIS Movement: 210º MM
C-AXIS Movement: 0,001º MM

Tools

Number of index: 40

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Lunette included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - X,y,z,c and b axis
- - Main spindle 3000 rpm
- - Subspindle 4000 rpm
- - Milling head spindle hsk43 with 8. 000 rpm
Qualitative Machine Benefits:
- - All manuals available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
