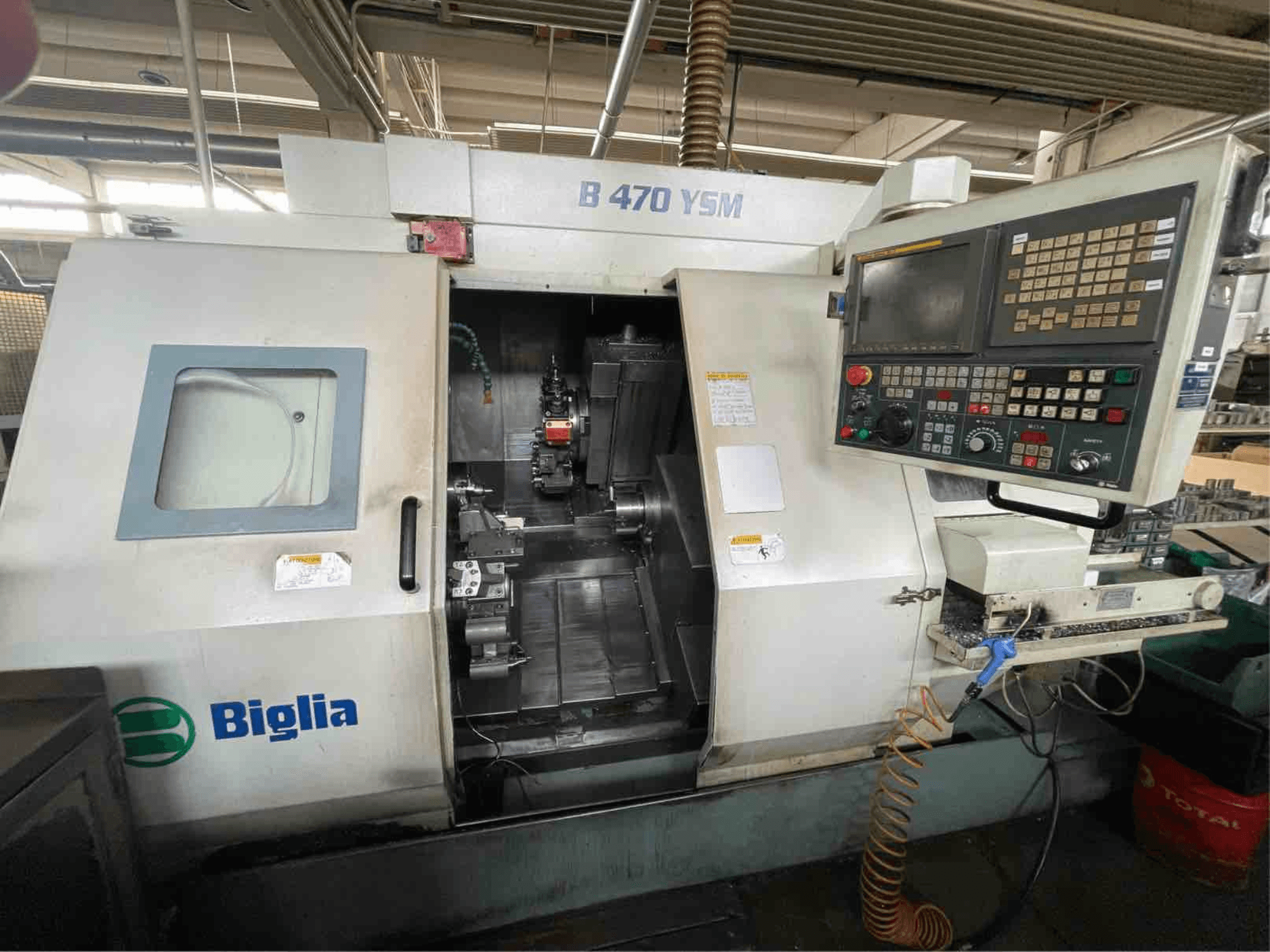

This 4-axis Biglia B 470 YSM was manufactured in 2003. It features a maximum turning diameter over bed of 680 mm and a maximum turning diameter over carriage of 520 mm. The machine is equipped with two turrets, each with 12 positions, and a maximum spindle speed of 4000 rpm. If you are looking to get high-quality turning capabilities, consider the Biglia B 470 YSM horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: Biglia
- year: 2003
- MODEL: B 470 YSM
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Biglia B 470 YSM
Control Unit
- Control Brand: FANUC
- Control Model: Series 18i-TB
Dimensions
- Machine Height: 2204 mm
- Machine Length: 4107 mm
- Machine Weight: 6700 kg
- Machine Width: 2128 mm
Movement
- Number of Axes: 4
- X-axis Travel: 160 mm
- Y-axis Travel: 100 mm
- Z-axis Travel: 390 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 26 kW
- Spindle Speed: 4000 RPM
Additional Information
Rapid traverse: X 12 m/min; Z 20 m/min; Y 6 m/min
Main spindle: ASA 6" nose; 80 mm bore; 100–4000 rpm; 22–26 kW; max chuck 210 mm; collet DIN 6343
Sub-spindle: ASA 5" nose; 56 mm bore; 100–4000 rpm; 5.7–7.5 kW; max chuck 165 mm
Turrets: 2 turrets; 12 positions each; bidirectional
Tooling: 20 × 20 mm tool size; 32 mm boring bar; 12 driven tool stations; 100–3000 rpm driven tools; 1.1–3.7 kW driven tool motor
C-axis: Direct (CS); 0.001° resolution; 80 rpm rapid
Turning capacity: Max Ø over bed 680 mm; max Ø over carriage 520 mm
Tailstock: No
Bar feeder: No
Coolant system: 180 L tank; 150 l/min pump; 0.75 kW pump power
Additional equipment
Parts unloader
Not included: bar feeder
