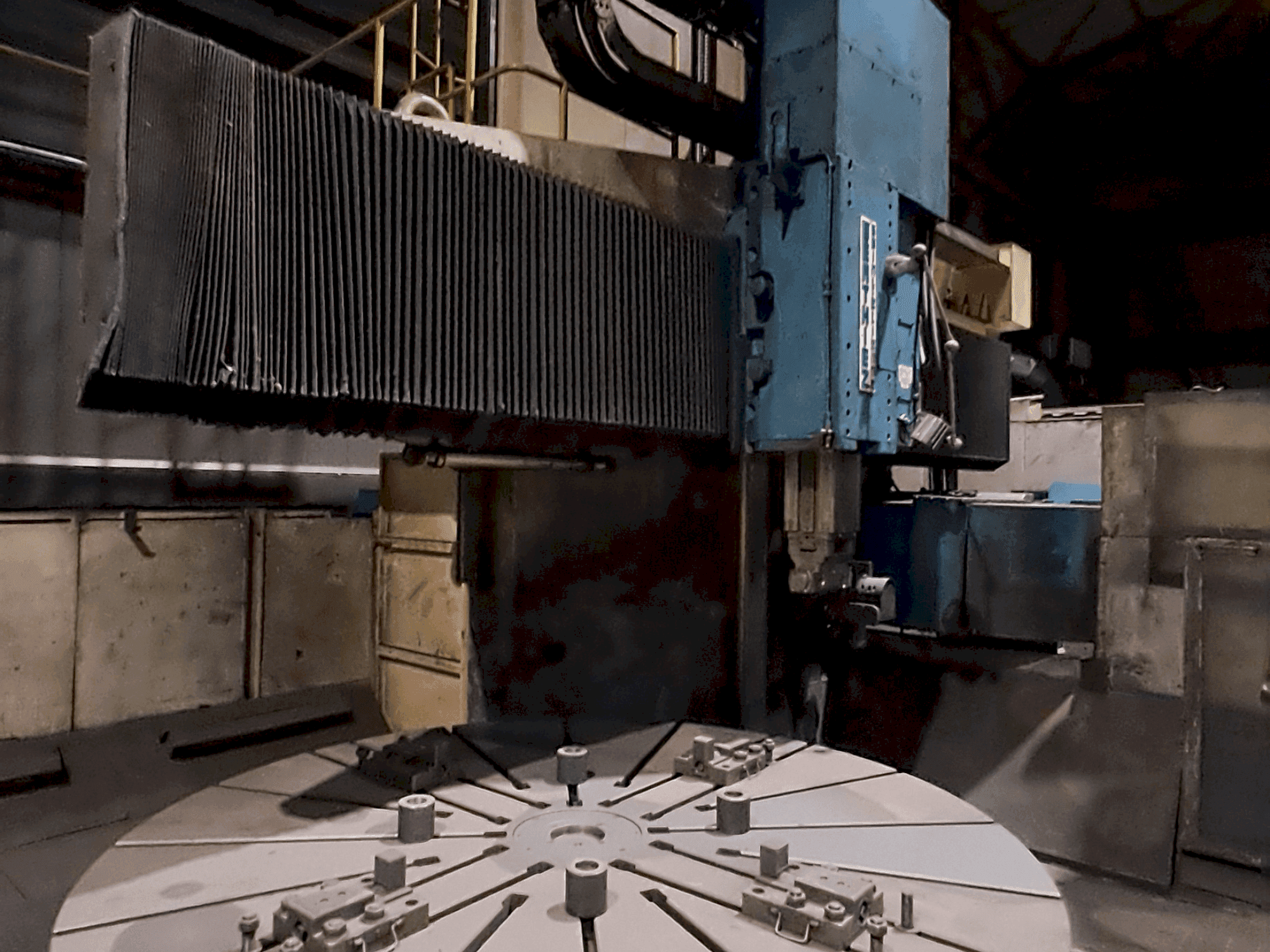

Berthiez - TMM 200FR-TUR-BER-1980-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Arm stroke: 1800 mm approx.
  • - Seat stroke: 1300 mm
  • - Continuous range of plate speeds: 1. 25 to 125 rpm
  • - Maximum load allowed on the plate: 100 t
  • - Gearbox weight: 1360 kg

Extra information

• - Tool Holder on Arm RAM Section: 224 x 224 mm Sliding Stroke: 1500 mm Horizontal Stroke of the Carriage: 3370 mm Continuous Range of Feeds: 0.05 to 25 mm/rev Positioning Speed: 1 to 6000 mm/min Seat Movement Speed: 2400 mm/min Positioning Speed: 5.7 mm/min Arm Movement Speed: 400 mm/min Positioning Speed: 1.6 mm/min Dimensions of Machine (LxWxH) Crosspiece: 8000 x 5400 x 1400 mm Amount: 5400 x 1700 x 1500 mm Support Plateau: 8000 x 5400 x 1200 mm False Chainring Diameter: Ø 5000 mm Weight (kg) Crosspiece Weight: 15000 kg Amount Weight: 25000 kg Support Plateau Weight: 15000 kg False Chainring Weight: 4000 kg
