➤ Used Battenfeld HM 8000/4500 + 4500 BMB 4 For Sale

Show in original language

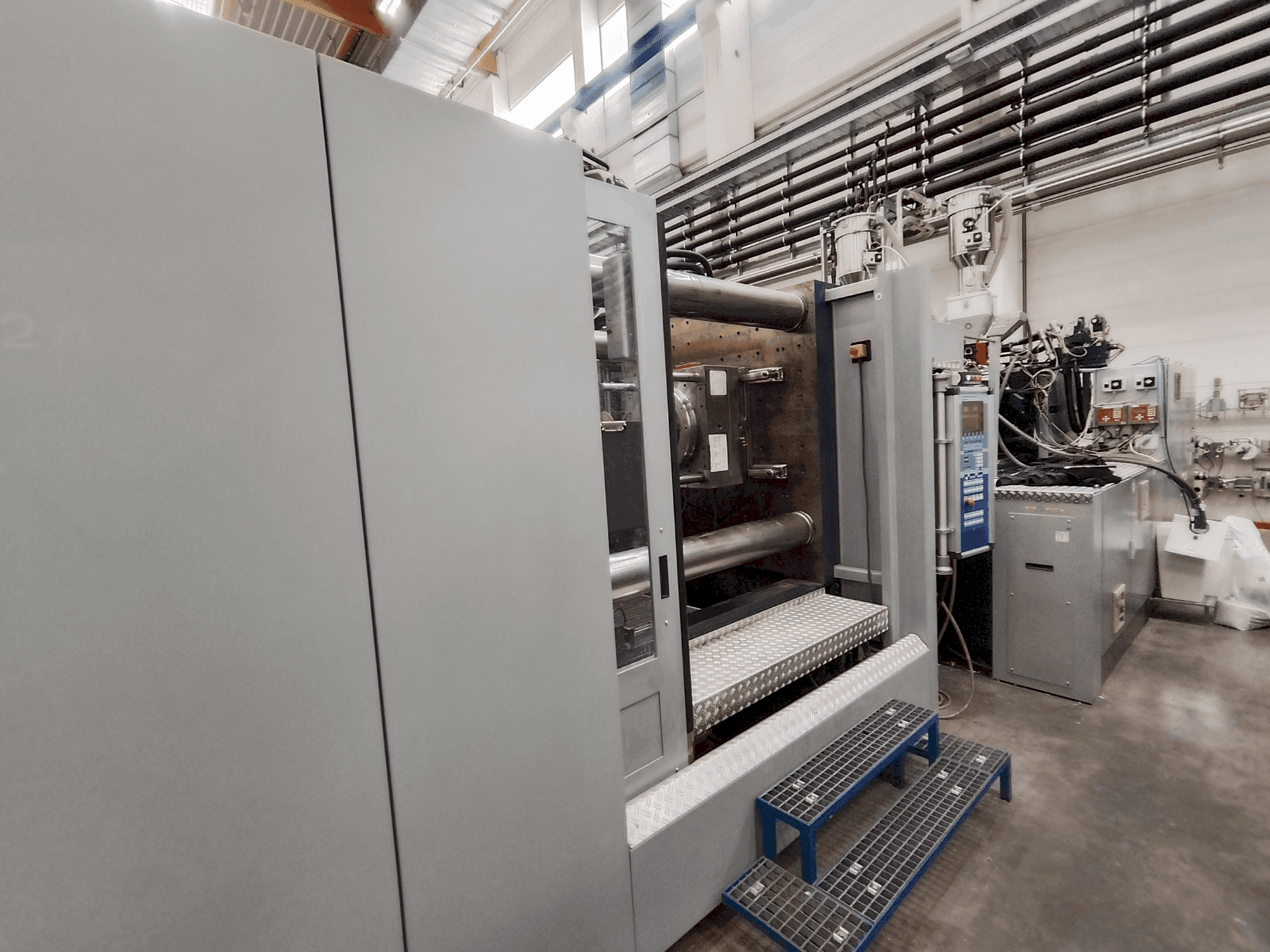

This Battenfeld HM 8000/4500 + 4500 BMB 4 was manufactured in 2005. It features a clamping force of 800 tons, a screw diameter of 100mm, and a maximum mold weight of 8520 kg. The machine includes dual injection units with capacities of 3338 cm³ and 2412 cm³. Ideal for robust injection moulding tasks. Contact us for more information about this machine.

Overview

brand: Battenfeld
year: 2005
MODEL: HM 8000/4500 + 4500 BMB 4
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Immediately

Technical Information - Battenfeld HM 8000/4500 + 4500 BMB 4

Injection Unit

Screw diameter: 100 mm

Clamping unit

Clamping force: 800 t KN
Max open daylight: 2225 mm
Mould height min: 500 mm
Mould height max: 1175 mm
Size of mold platens: 784/784
Ejector stroke: 250 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Injection units: 2
- - Injection capacity 1: 3338 cm
- - Injection capacity 2: 2412 cm
- - Type: komponenten

Extra information

- Clamping Force Opening Way: 1050 mm Platen Size Vert: 1530 mm Distance Between Tiebars Hor.: 1120 mm Centering Ring: 250-250 mm Clamping Screws: M24 Nozzle Radius: R40 mm Mold Weight Max.: 8520 kg Type Ejector Connector: BFA Standard Core Puller: 3/1 Cooling Circuit: 12/12 Needle Catch: 12

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
