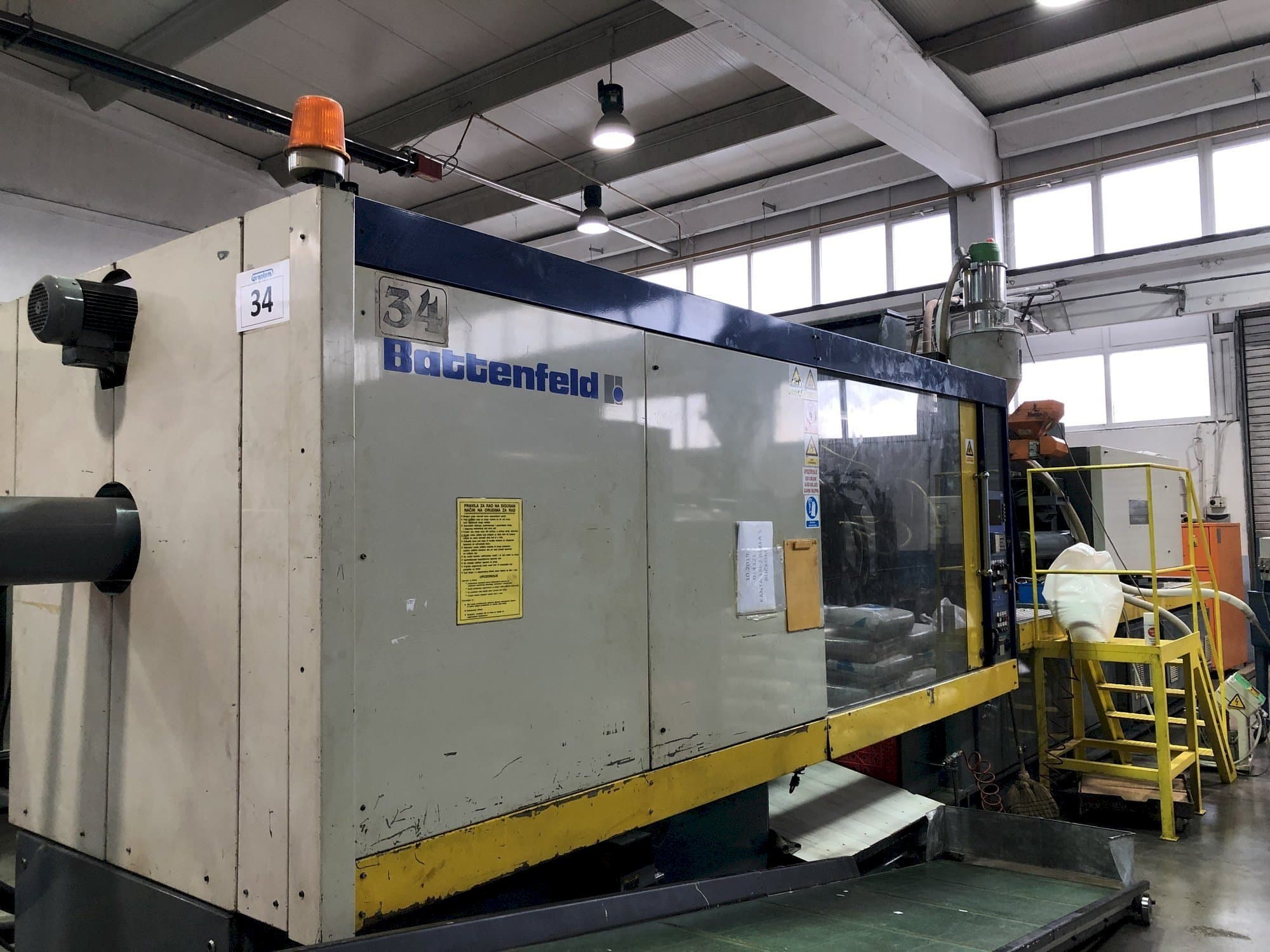

Left side view of Battenfeld BK-T 5000-4000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Battenfeld BK-T 5000-4000

Photo Gallery

Battenfeld - BK-T 5000-4000HR-INJ-BAT-1992-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Battenfeld BK-T 5000-4000 Injection Moulding Machine

Show in original language

This Battenfeld BK-T 5000-4000 Injection Moulding Machine was made in the year 1992. This machine can work with a clamping force of 5000 kN, and an injection capacity of 1421 bar. This Battenfeld stands out for the size of its mold platens, of about 815 x 815 mm.

Overview

brand: Battenfeld
year: 1992
MODEL: BK-T 5000-4000
application type: Injection Moulding
Location: Croatia
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Battenfeld BK-T 5000-4000

Injection Unit

Injection pressure: 1421 bar

Clamping unit

Clamping force: 5000 kN
Mould height min: 375 mm
Mould height max: 850 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Injection capacity: 2572 g
- - Table spacing: 1700 mm
- - Center ring diameter: 200 mm
- - Guide spacing: 815 x 815 mm
- - Mass cylinder diameter: 100 mm
- - Installed power: 104,4 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
