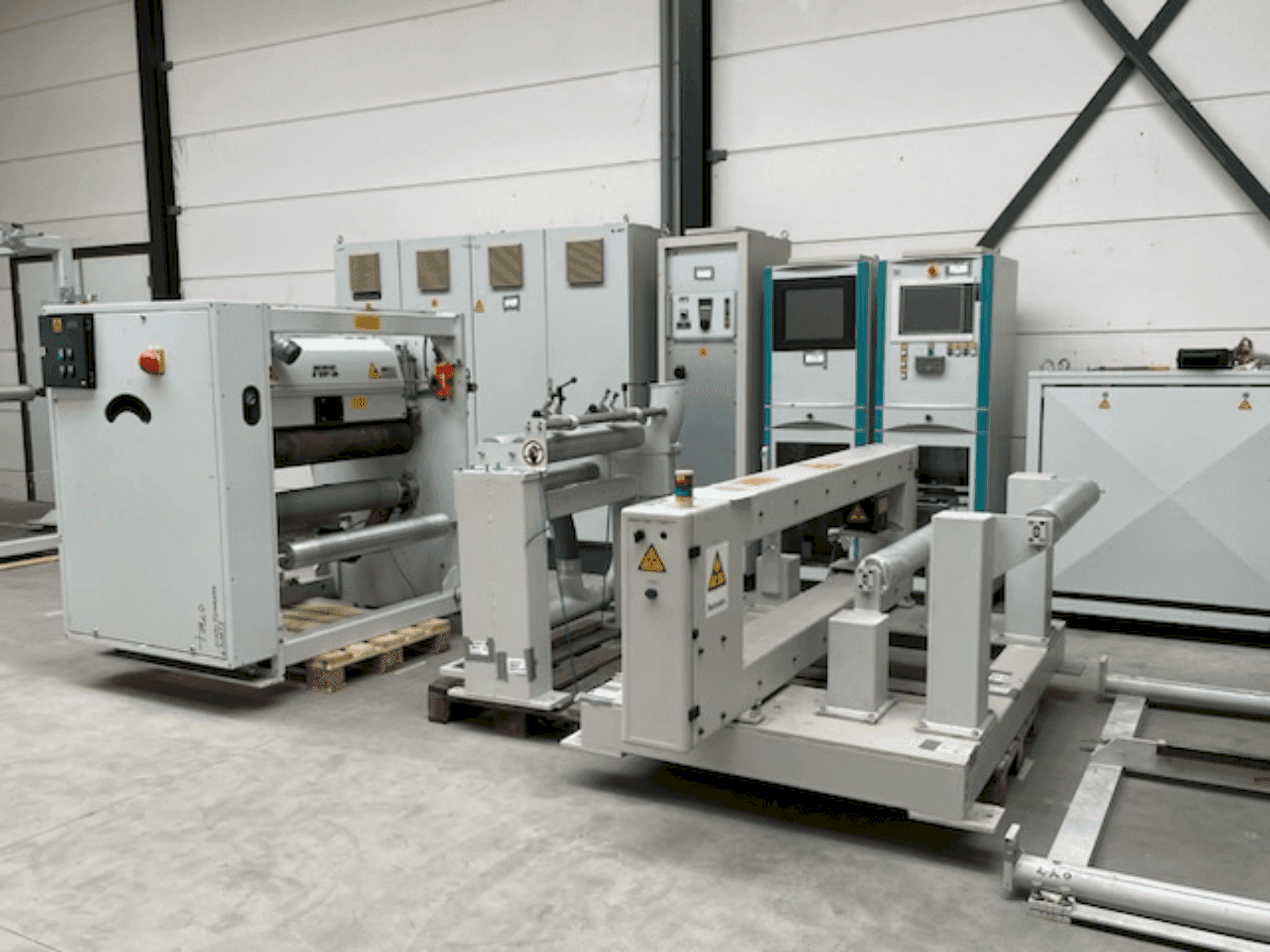

This Battenfeld BA 60 film extruder was manufactured in 1998. A reliable choice for your film extrusion needs, it represents a solid addition to any production line. Contact us for more information.
Overview
- brand: Battenfeld
- year: 1998
- MODEL: BA 60
- production hours: 4500
- application type: Extrusion
- Location: Netherlands
- machine type: Film Extruder
Technical Information - Battenfeld BA 60
Dimensions
- Machine Depth: 20000 mm
- Machine Height: 3400 mm
Additional Information
Additional equipment
- Non-contact thickness measurement for automatic TD profile measurement with double-sided corona treatment (max 12000W)
- Optical inspection system, including a marking system for detecting faults, incident and transmitted light system
- Includes components for cooling, screen changing, feed block, slot die, cutting, edge banding, drying, dosing, transferring, and antistatic control.
Machine Benefits
Qualitative Machine Benefits
- Equipped with high-quality additional components for efficient production and quality control
Technical Machine Benefits
- The extrusion line is intended for the production of cast film
- Processing thermoplastics within a temperature range of 150°c to 300°c
- Possible layer structures: monofilm/multi-layer
- Total capacity of extruder: maximum 200 kg/h / film width range (net): 600 - 700 mm / cutting of two rolls possible: 2x 800 - 2x 1055 mm / thickness range: 25-580 μm / production speed: 10 - 150 m/min / roll width: 2500 mm / max roll weight: 2000 kg
- The system can process pp/pe/pet / data of the line / total capacity of the extruder max. 200 kg/h / battenfeld extruder type; s5 type 95u / bex 1-60-30b/u
- Film width range (net): 600 - 700 mm / cutting of two rolls possible (2x 800 - 2x 1055 mm) / thickness range: 25-580 μm / production speed: 10 - 150 m/min / roll width: 2500 mm / max. Roll weight: 2000kg
- Length 20 m/ width 5 m /height 3. 4 m (without the dosing systems)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
