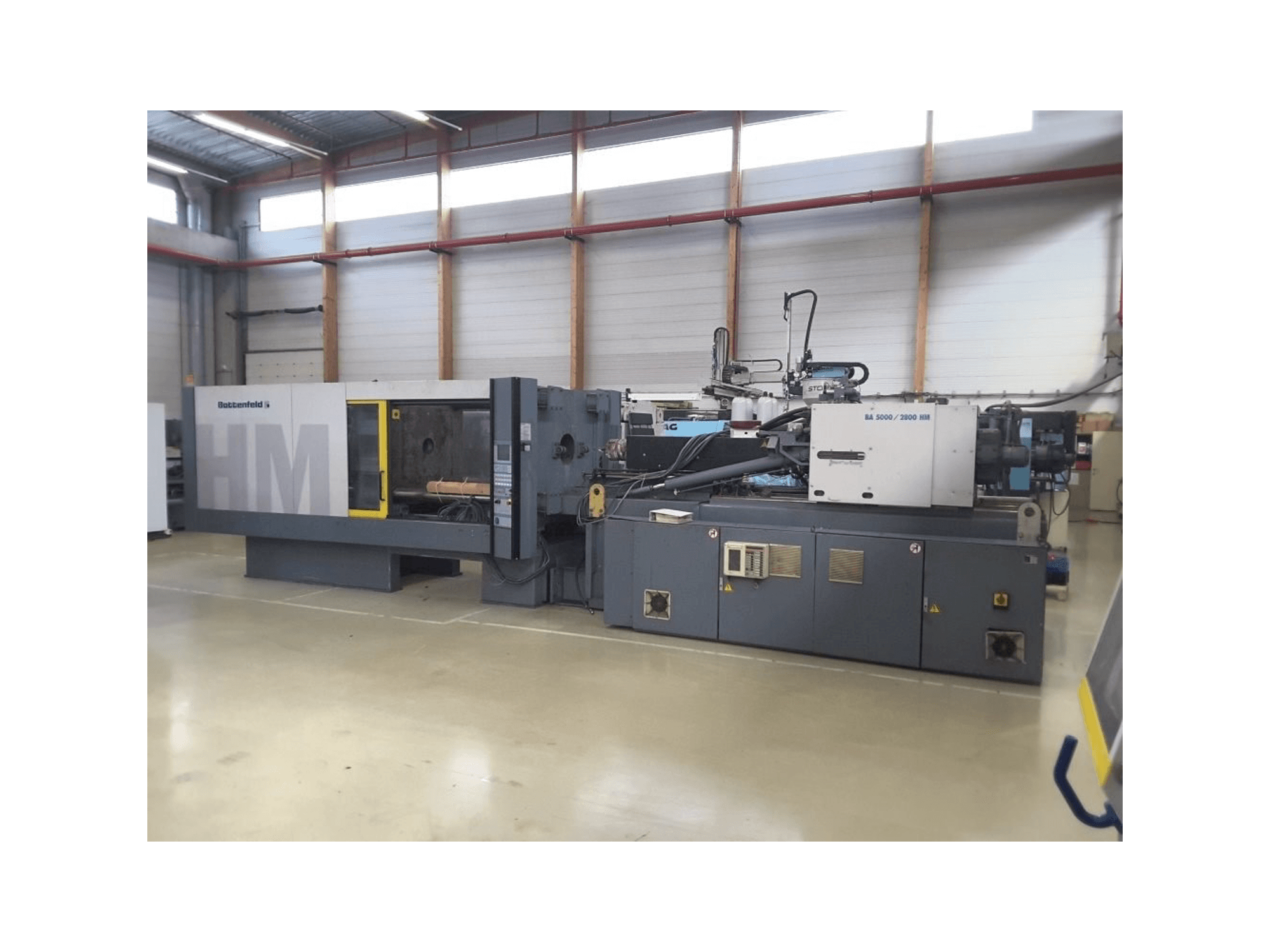

Front view of Battenfeld BA 5000 - 2800 HM machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Battenfeld BA 5000 - 2800 HM

Battenfeld - BA 5000 - 2800 HMBE-INJ-BAT-1996-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Battenfeld BA 5000 - 2800 HM Injection Moulding Machine

Show in original language

This Battenfeld BA 5000 - 2800 HM Injection Moulding Machine was built in 1996 in Germany and has 40239 hours. It is equipped with a Battenfeld Unilog 900 control unit. The machine has a clamping force of 5000 kN and includes a Robot interface Euromap 12.

Overview

brand: Battenfeld
year: 1996
MODEL: BA 5000 - 2800 HM
production hours: 40239
application type: Injection Moulding
Location: Belgium
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: BATTENFELD

Technical Information - Battenfeld BA 5000 - 2800 HM

General Data

Machine weight: 23100 kg

Control Unit

Model: Unilog 900
Brand: BATTENFELD

Injection Unit

Screw diameter: 75 mm
Shot weight: 1508 g
Stroke volume: 1657 CM³
Injection pressure: 1508 bar
Plasticizing rate max.: 73 g/s
Heating capacity: 43 kw

Clamping unit

Clamping force: 5000 kn
Opening stroke: 900 mm
Max open daylight: 1700 mm
Distance between bars: 900 mm x 900 mm
Mould height min: 450 mm
Mould height max: 800 mm
Size of mold platens: 1280 mm x 1280 mm
Ejector stroke: 200 mm
Ejector force for / back: 98 kn

Additional equipment

- Anti vibration
- 2 x Cores
- Robot interface Euromap 12
- 1 x Air valve
- 6 x Hotrunner controllers

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Dimensions of the injection ca: 4500 mm x 2200 mm x 2400 mm, weight: 8500 kg
- - Dimensions of the clamp unit ca: 4740 mm x 2200 mm x 2600 mm
- - Ls/d ratio: 22
- - Nominal capacity of pump motor: 55 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
