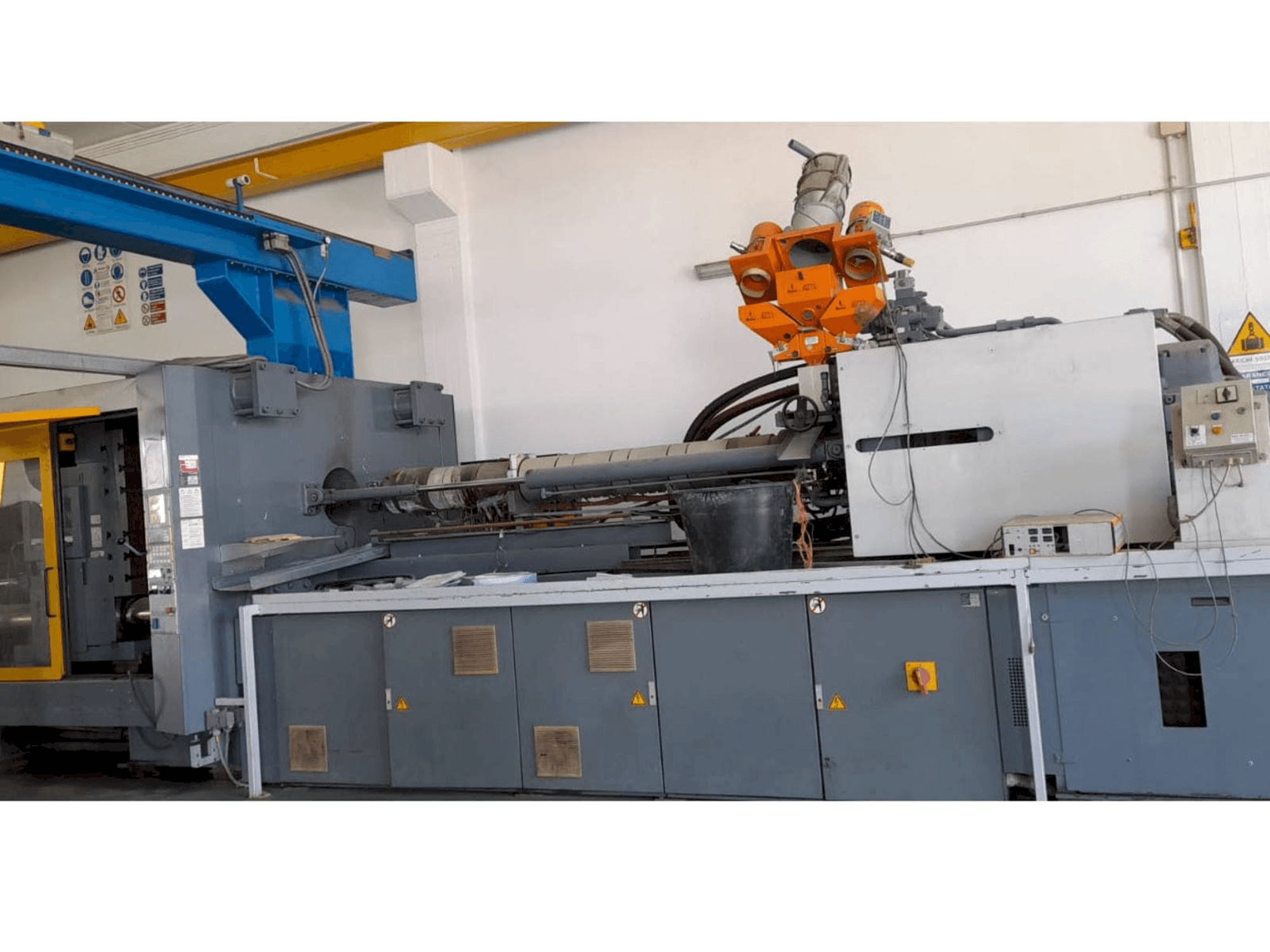

Front view of Battenfeld BA 1000/12000 HM  machine

Battenfeld - BA 1000/12000 HMIT-INJ-BAT-1998-00001


Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

Click to chat on WhatsApp
Show in original language

This BATTENFELD BA 1000/12000 HM Injection moulding machine was manufactured in the year 1998 in Germany. It is equipped with a BATTENFELD control unit. The machine has a clamping force of 10000 kN and a screw diameter of 135 mm.


  • brand: Battenfeld
  • year: 1998
  • MODEL: BA 1000/12000 HM
  • application type: Injection Moulding
  • Location: Italy
  • machine type: Injection Moulding Machine
  • availability: Sold
  • control unit brand: BATTENFELD

Technical Information - Battenfeld BA 1000/12000 HM

General Data

  • Measurements width: 1230 mm
  • Measurements depth: 2700 mm
  • Measurements height: 2520 mm
  • Machine weight: 80500 kg

Control Unit


Injection Unit

  • Screw diameter: 135 mm
  • Injection pressure: 1394 bar
  • Screw speed: 120 min

Clamping unit

  • Clamping force: 10000 kN
  • Opening stroke: 1100 mm
  • Max open daylight: 2120 mm
  • Distance between bars: 1400 mm
  • Mould height min: 550 mm
  • Mould height max: 1020 mm
  • Size of mold platens: 1120-1680 mm
  • Ejector stroke: 300 mm
  • Ejector force for / back: 117 kN

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
