Arburg - Allrounder 520A 1500-400DE-INJ-ARB-2008-00008

Name: Arburg Allrounder 520A 1500-400 (2008)
Brand: Arburg
SKU: DE-INJ-ARB-2008-00008
Price: 1937400 INR
Availability: InStock

Rs. 1,937,400

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg Allrounder 520A 1500-400 For Sale

Show in original language

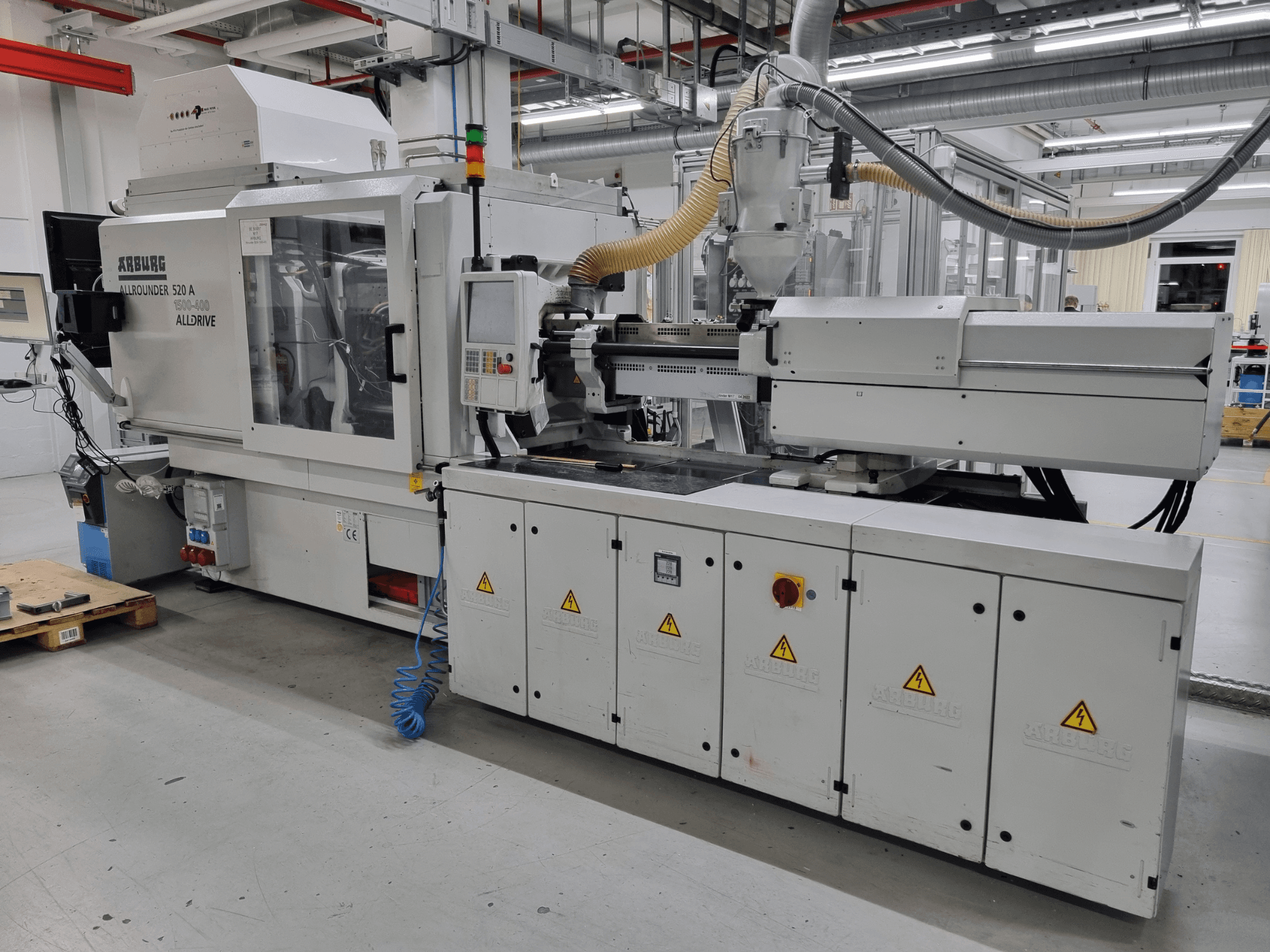

This Arburg Allrounder 520A 1500-400 was manufactured in 2008. It features Selogica direct control, small accumulator hydraulics, and a thermoplastic processing capability. Equipped with multiple core pulls and a robot system interface, it's ideal for precise, automated molding operations. Consider the opportunity to buy this Arburg Allrounder 520A 1500-400 hydraulic injection moulding machine. Contact us for more information about this machine.

Overview

brand: Arburg
year: 2008
MODEL: Allrounder 520A 1500-400
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Additional Information

Series: A-Series
Control: Selogica direct control
Hydraulics: Small accumulator, 11 kW motor, 20 cc pump
Processing: Thermoplastic
Injection unit: Nozzle tip for open nozzle; Heating band for open nozzle; Nozzle clamping force controlled, programmable for 1st injection unit; Cylinder heating rated up to 450°C
Clamping: Central clamping plate set 125 mm
Ejector: Electromechanical
Core pulls:
- Core pull 1: simultaneous, P/Q controlled, programmable travel
- Core pull 2: simultaneous, P/Q controlled, programmable travel
- Core pull 3: simultaneous travel, holding pressure manually adjustable
- Core pull 4: simultaneous travel, holding pressure manually adjustable
- Max flow rate: 60 l/min or 30 l/min
Auxiliary: Blow-out device 1 with pressure reducer
Interfaces/Preparation: Robot system interface (EUROMAP 67, 50-pin); Electronic preparation for mounting an external protective enclosure

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
