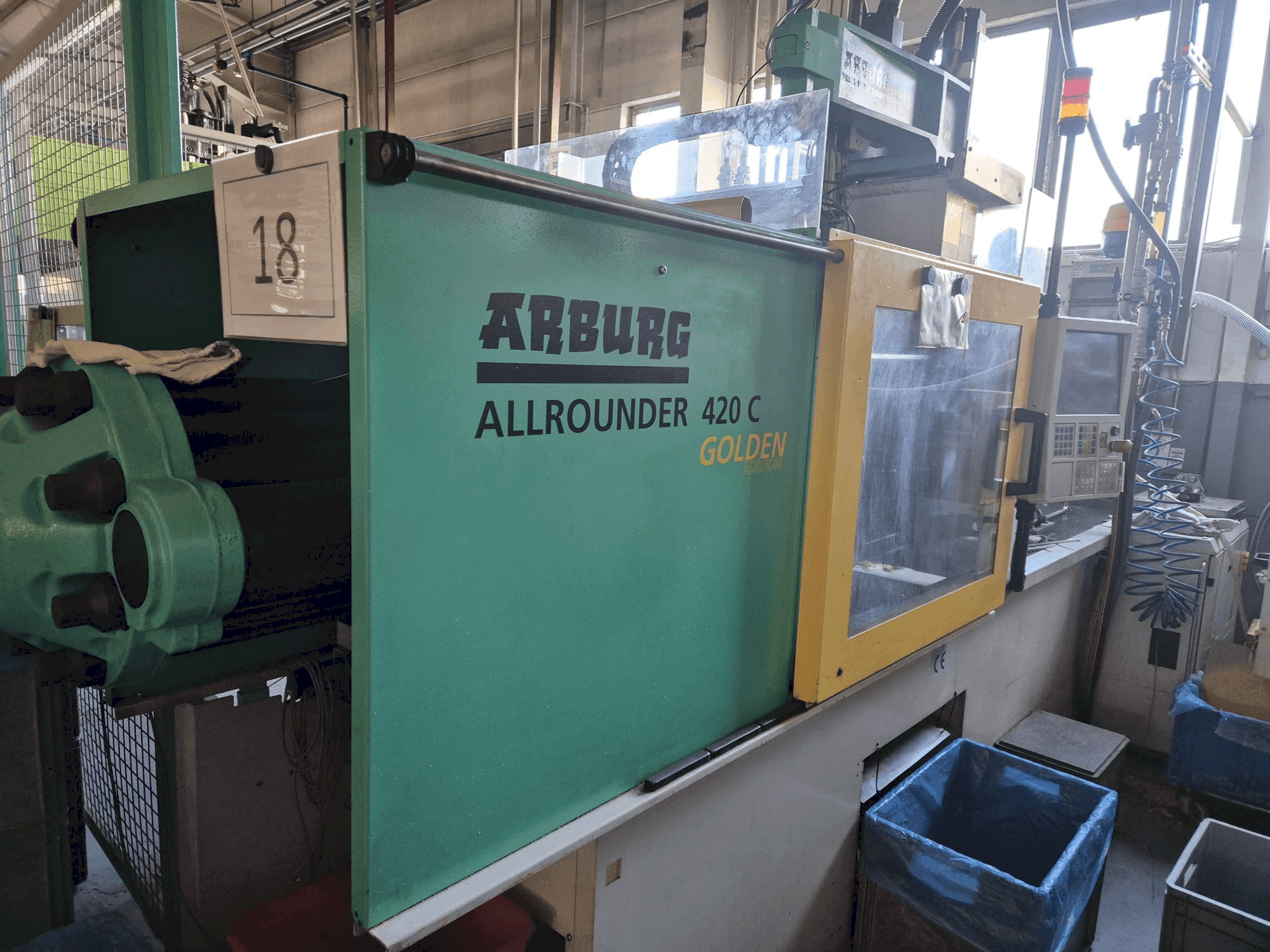

This Arburg Allrounder 420 C 1000-290 Golden Edition was manufactured in 2012. It is a hydraulic injection moulding machine, ideal for precision plastic processing. Consider the opportunity to buy this Arburg Allrounder 420 C 1000-290 Golden Edition. Contact us for more information.
Overview
- brand: Arburg
- year: 2012
- MODEL: Allrounder 420 C 1000-290 Golden Edition
- production hours: 61991
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Arburg Allrounder 420 C 1000-290 Golden Edition
Technical Specification
- Clamping Force: 1000 kN
Additional Information
Additional equipment
- ⌀ Cylinder: 35
- Injection Weight Max. PS: 122 g
- Nozzle Radius: R40
- Clamping System: Bakra
- Centring Ring: 125 mm
Machine Benefits
Technical Machine Benefits
- Voltage: 400 v, 50 hz / clamping force: 1000 kn / screw diameter: 290 mm
- Nozzle control: programmable hydraulic system with t2 control block.
- Pump/motor: main pump: not explicitly listed, but typical for this series: rxp-type with servo-hydraulic regulation. Motor power: 7. 5–8. 6 kw
- Cooling: oil temperature control: programmable system / coolant channels: regulated water/oil circuits for molds and hydraulics.
- Cpu: intel celeron with ethernet/usb (d-arb 830).
- I/o modules: digital i/o (l-arb 790). Analog control (l-arb 798).
- 12-channel temperature control (l-arb 777).
- Software: golden edition firmware with real-time ethernet /supports euromap 67 for robotic integration.
- Transport weight: 5600 kg
- Tool mounting: standard d125 mm mounting plate.
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
