Arburg Allrounder 1500 T 2000-400

Photo Gallery

Arburg - Allrounder 1500 T 2000-400CZ-INJ-ARB-2013-00004

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg Allrounder 1500 T 2000-400 | Moulding

Show in original language

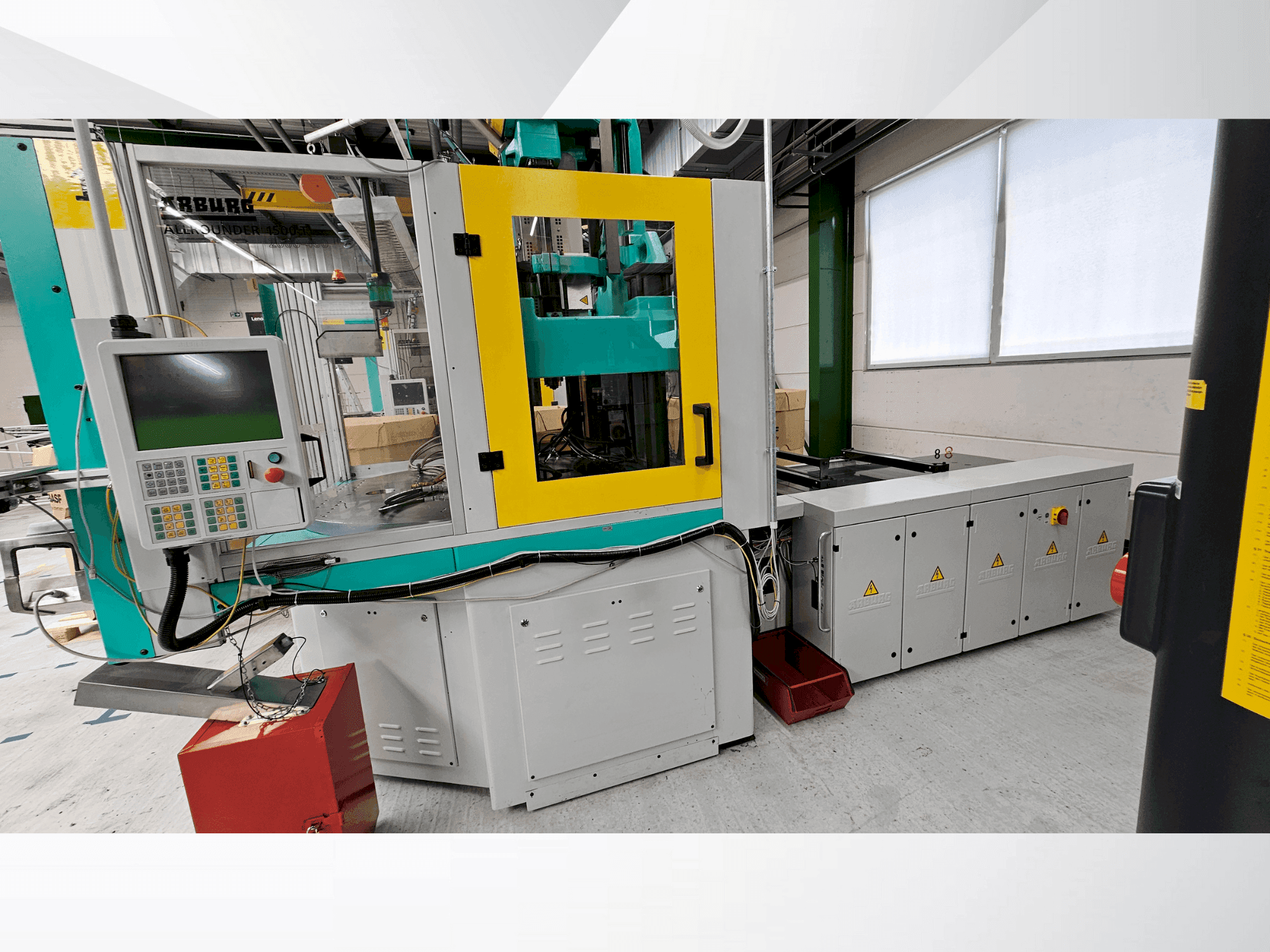

This Arburg Allrounder 1500 T 2000-400 vertical injection moulding machine was manufactured in 2013. It features a clamping unit with a closing force of 2000 kN and a table diameter of 1500mm. The injection unit boasts a screw diameter of 40mm and a shot weight of 184 g PS. Ideal for precision moulding, the Arburg Allrounder 1500 T 2000-400 machine we have for sale is a robust choice for your production needs. Contact us for more information.

Overview

brand: Arburg
year: 2013
MODEL: Allrounder 1500 T 2000-400
application type: Injection Moulding
Location: Czech Republic
machine type: Vertical Injection Moulding Machine

Technical Information - Arburg Allrounder 1500 T 2000-400

Technical Specification

Clamping Force: 2000 kN
Screw Diameter: 40 mm

Additional Information

Additional equipment

Rotary Table: Yes (180° rotation angle left/right)

Machine Benefits

Technical Machine Benefits

Comprehensive injection unit with high injection pressure and material throughput
Rotary table with 180° rotation angle for efficient moulding

Extra Information

Clamping Unit Clamping Force: 2000 kN Opening Force Max.: 115 | 300 kN|mm Mould Installation Height Fixed Min.: 400 mm Pallet Distance Fixed: 700 mm Table Diameter: 1500 mm Rotation Angle Left/Right: 180° Weight of Moving Mould Half: 500 kg Ejector Force|-Travel: 25|175 kN|mm // Injection Unit Screw Diameter: 40 mm Effective Screw Length: 20 L/D Screw Stroke: 160 mm max. Calculated Stroke Volume: 201 max. cm³ Shot Weight: 184 g PS Material Throughput: 29 kg/h PS Injection Pressure Max.: 2000 bar Holding Pressure Max.: 2000 bar Injection Flow² Max.: 168 cm³/s (2 pumps) Screw Circumferential Speed² Max.: 53 m/min (2 pumps) Screw Torque Max.: 550 Nm Nozzle Contact Force|-Lifting Movement Max.: 60 | 400 kN|mm Granulate Container: 50 litres

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
