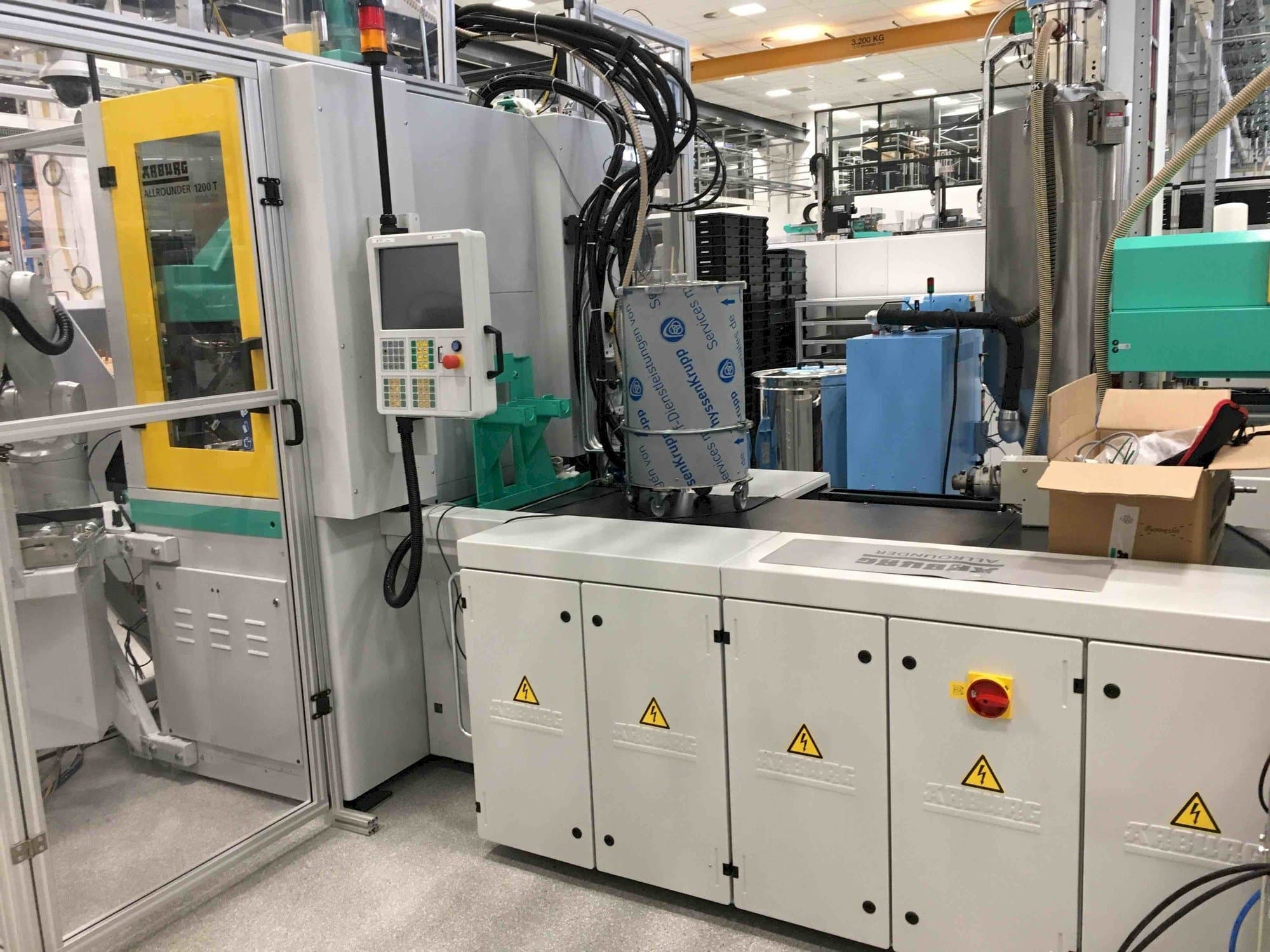

Front view of Arburg ALLROUNDER 1200 T 800 - 70 (2017) machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg ALLROUNDER 1200 T 800 - 70

Photo Gallery

Arburg - ALLROUNDER 1200 T 800 - 70NL-INJ-ARB-2017-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Arburg ALLROUNDER 1200 T 800 - 70 Injection moulding machine

Show in original language

This Arburg ALLROUNDER 1200 T 800 - 70 Injection moulding machine was manufactured in the year 2017 in Germany and has 2090 pump hours. The machine has a clamping force of 800 kN, is in very good condition, and is well maintained.

Overview

brand: Arburg
year: 2017
MODEL: ALLROUNDER 1200 T 800 - 70
production hours: 2090
application type: Injection Moulding
Location: Netherlands
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg ALLROUNDER 1200 T 800 - 70

General Data

Measurements width: 4360 mm
Measurements depth: 1718 mm
Measurements height: 3085 mm
Machine weight: 7200 kg

Injection Unit

Screw diameter: 18 mm
Injection pressure: 2500 bar

Clamping unit

Clamping force: 800 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Hubvolume [cm^3]: 16
- - L/d ratio screw: 17,7
- - Max. Mold width [mm]: rotating table diam. 1200mm
- - Max. Mold height [mm]: 400 (combination with mouldstroke)
- - Diameter locating ring(s) [mm]: 125
- - Nose radius: r40
- - Number of cooling circuits: injection: 1, turning table: 3
- - 3 stations turntable
- - 120 degree right turning

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
