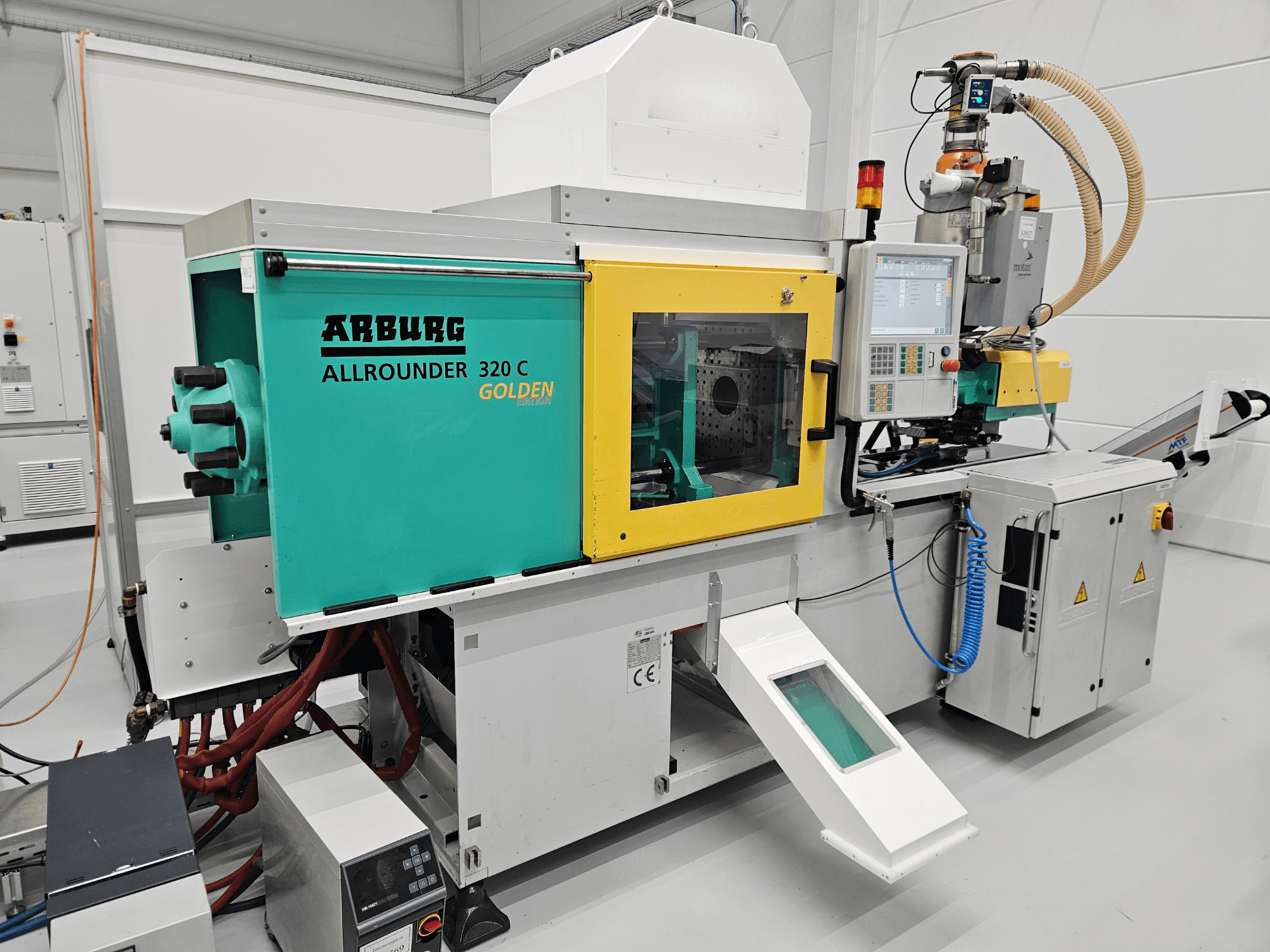

Hydraulic injection moulding machine manufactured in 2006. This Arburg 320C 500-170 GE features a clamping force of 500 kN and a screw diameter of 30 mm. It has a maximum ejector stroke of 125 mm and a platen distance of 550 mm. If you are looking to get high-quality injection moulding capabilities, consider the Arburg 320C 500-170 GE machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: Arburg
- year: 2006
- MODEL: 320C 500-170 GE
- production hours: 61935
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Arburg 320C 500-170 GE
Technical Specification
- Clamping Force: 500 kN
- Max. Shot Weight: 77 g
- Screw Diameter: 30 mm
Additional Information
Min. mould installation height: 200 mm
Tie bar spacing (H × V): 320 × 320 mm
Platen distance: 550 mm
Max. ejector stroke: 125 mm
Installed total power: 22.9 kW
Total connected load: 34 kW
Nominal voltage: 400 V
Frequency: 50 Hz
Rated current: 49 A
Total machine cycles: 11,986,266
Total pump operating hours: 61,935 h
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
