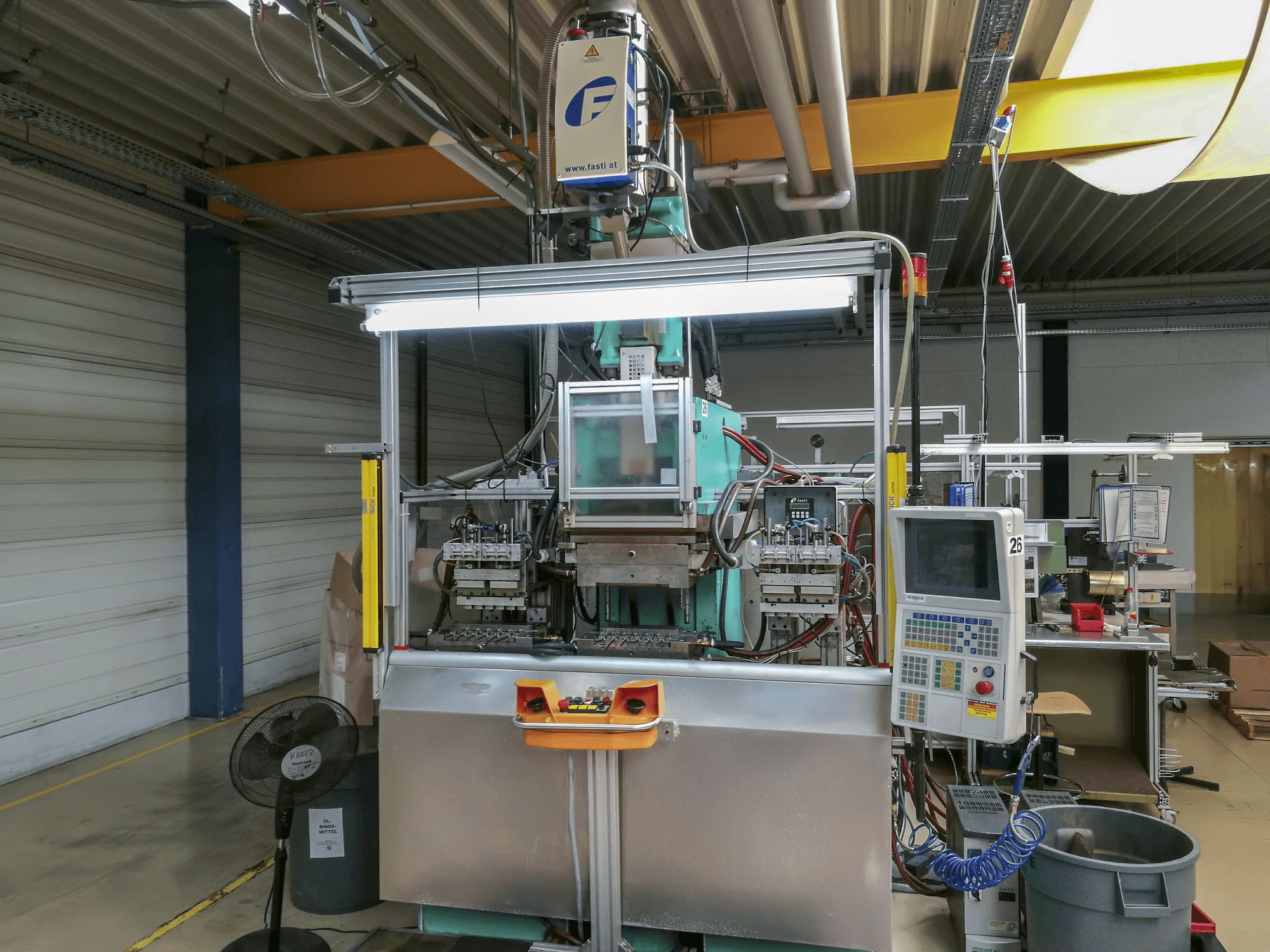

Front view of Arburg 270C 400-100 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg 270C 400-100

Photo Gallery

Arburg - 270C 400-100DE-INJ-ARB-2002-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Arburg 270C 400-100 Injection Moulding Machine

Show in original language

This Arburg 270C 400-100 Injection Moulding Machine, built 2002 in Germany, is equipped with a SELOGICA Control unit. This model stands out due to its hydraulic core pull cylinder.

Overview

brand: Arburg
year: 2002
MODEL: 270C 400-100
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg 270C 400-100

General Data

Measurements width: 2656 mm
Measurements depth: 1475 mm
Measurements height: 1850 mm
Machine weight: 2180 kg

Injection Unit

Screw diameter: 20/25/30 mm
Shot weight: 45 g/PS
Stroke volume: 49 cm³
Injection pressure: 2500/2000/1390 bar
Screw speed: 28/35/42 1/min
Heating capacity: 4.9 kW
Adjustable heating zones: 5
Nozzle pressure: 50 kN

Clamping unit

Clamping force: 400 kN
Opening stroke: 350 mm
Max open daylight: 550 mm
Distance between bars: 270x270 mm
Mould height min: 200 mm
Size of mold platens: 446x446 mm
Ejector stroke: 125 mm
Ejector force for / back: 130 kN

Media

Main electronic connection: 400 V
Oil tank: 165 L
Oil water separator: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
