➤ Used AMADA Vipros 2510C - Turret Punching Machine

Show in original language

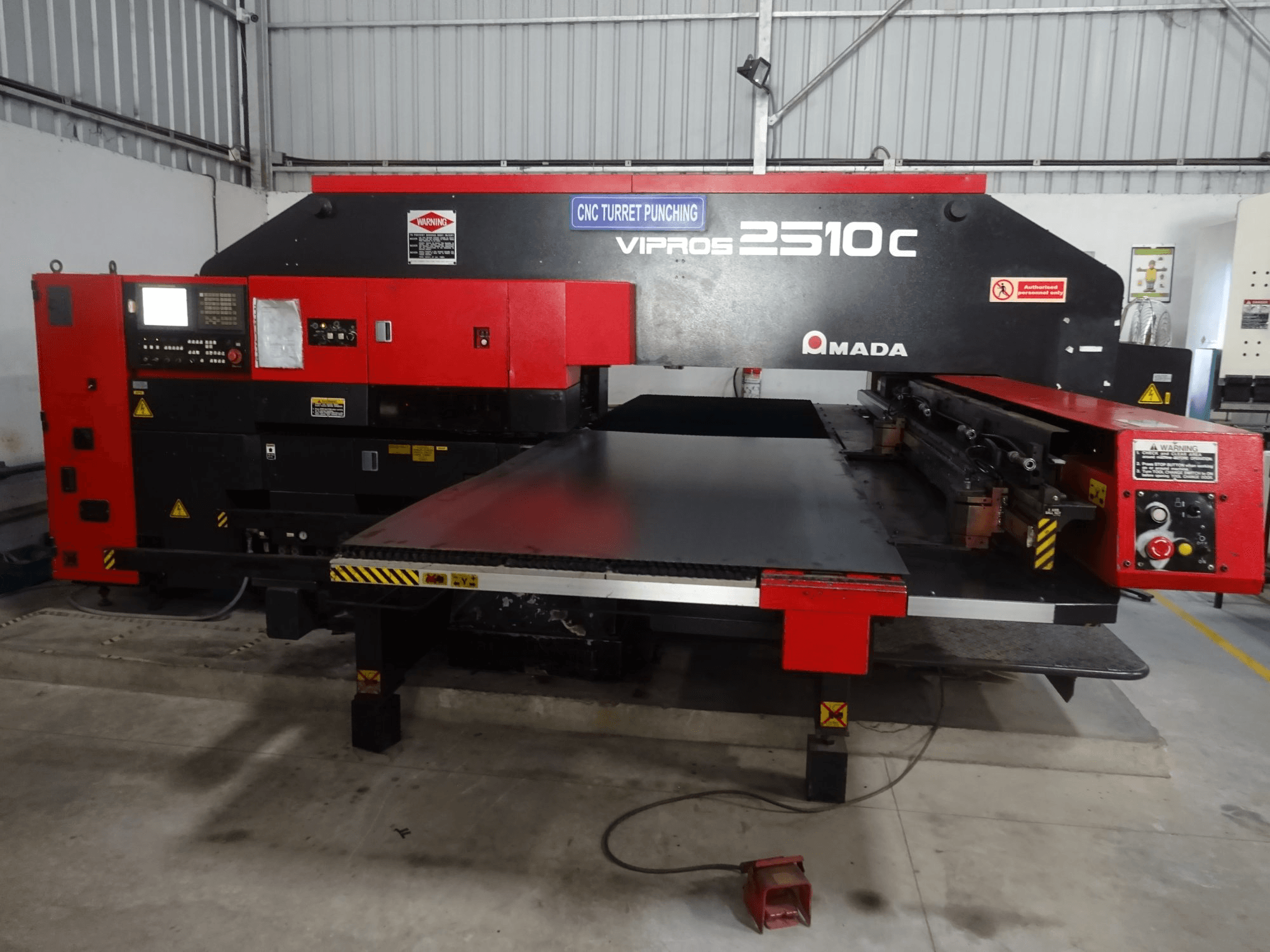

This AMADA Vipros 2510C Turret Punching Machine was fabricated in 2006 in Japan and has a working record of approximately 18000 production hours. Equipped with a FANUC Series 18i-PB Control unit, this reliable machine has mainly worked with 4 mm steel sheets during the past and incorporated a software bundle.

Overview

brand: AMADA
year: 2006
MODEL: Vipros 2510C
production hours: 18000
application type: Punching
Location: India
machine type: CNC Punch Press
availability: Sold

Technical Information - AMADA Vipros 2510C

General Data

Measurements width: 4900 mm
Measurements depth: 5250 mm
Measurements height: 2200 mm
Machine weight: 11000 kg

Control Unit

Brand: Fanuc
Model: Series 18i-PB
Interface: CF Card

Main drive

Punching force: 200 kN
Maximum sheet thickness: 4 mm

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm

Tools

Number of index: 2
Number of stations: 31
Max tool diameter: 88.9 mm

Max Material thickness

Steel: 6 mm
Stainless steel: 3 mm
Aluminum: 6 mm

Media

Main electronic connection: 220 V
Power consumption: 30 kVA
Air pressure: 6 bar
Lubrication tank: 1 L
Oil tank: 150 L

Additional equipment

- Software Bundle

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
