Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
AMADA - VELA II 355IN-PUN-AMA-1984-00001
Do you have further questions? Contact us.

Alessandro Martini
+49 162 585 84 48
a.martini@gindumac.com

- GINDUMAC
- Products
- Sheet Metal Machinery

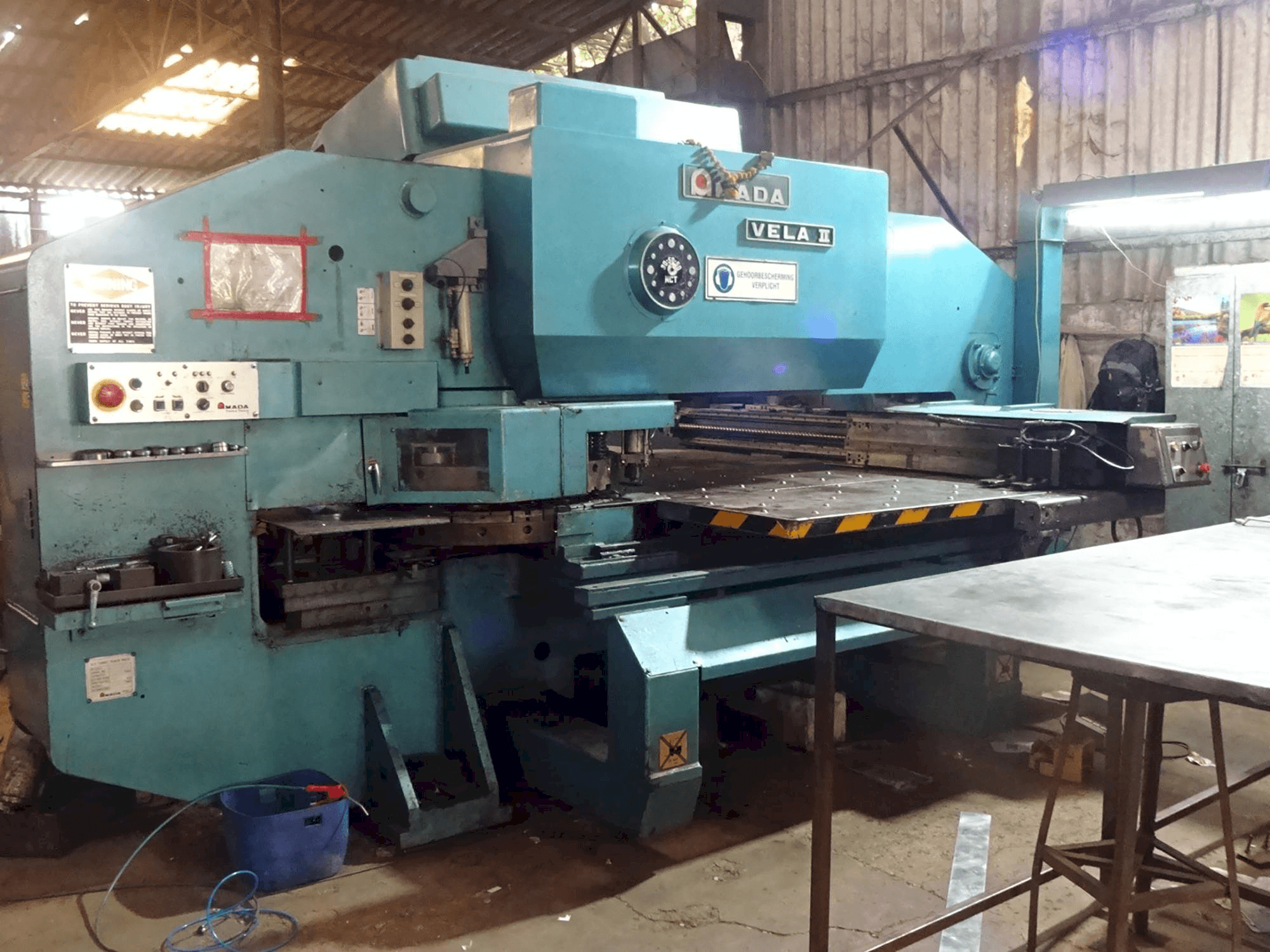

- AMADA VELA II 355 Turret Punching Machine
This AMADA VELA II 355 Turret Punching Machine was made in 1984 in Japan and has been operative for 65000 hours. Operated through a FANUC 6M Control unit, this machine incorporates a punching force of 300 kN.
Overview
- brand: AMADA
- year: 1984
- MODEL: VELA II 355
- production hours: 65000
- application type: Punching
- Location: India
- machine type: Turret Punch Press
- availability: Sold
- control unit brand: FANUC
Technical Information - AMADA VELA II 355
General Data
- Measurements width: 2800 mm
- Measurements depth: 4800 mm
- Measurements height: 2000 mm
- Machine weight: 16000 kg
Control Unit
- Model: 6M
- CNC main language: English
- CNC language customizable: Yes
- Brand: FANUC
Main drive
- Punching force: 300 kN
- Maximum sheet thickness: 3 mm
Movement
- X-AXIS Movement: 1250 mm
- Y-AXIS Movement: 1250 mm
Tools
- Number of index: 2
- Number of stations: 44
Max Material thickness
- Steel: 3 mm
- Stainless steel: 1 mm
- Aluminum: 2 mm
Media
- Main electronic connection: 400 V
- Power consumption: 20 kVA
Additional equipment
- - Tools
- - Software
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Alessandro Martini
Payment Terms
Payment in advance
Asset Financing
