Automation system manufactured in 2021. This AMADA Jupiter System features a PLC controlled micro resistance welding technology with a workspace of 624 × 550 mm and a maximum welding area of 540 × 450 mm. It includes advanced capabilities such as welding automation, vision inspection, and data connectivity. If you are looking to get high-quality battery pack welding capabilities, consider the AMADA Jupiter System we have for sale. Contact us for further details.
Overview
- brand: AMADA
- year: 2021
- MODEL: Jupiter System
- application type: Other Automation Equipment
- Location: Germany
- machine type: Automation System
Technical Information - AMADA Jupiter System
Dimensions
- Machine Height: 2300 mm
- Machine Length: 1200 mm
- Machine Width: 1200 mm
Additional Information
40x units of Jupiter systems available (considered as a whole): welding automation includes the XYZ portal control system, welding control, welding monitoring, vision system, and data connectivity. Cooling units are not included.

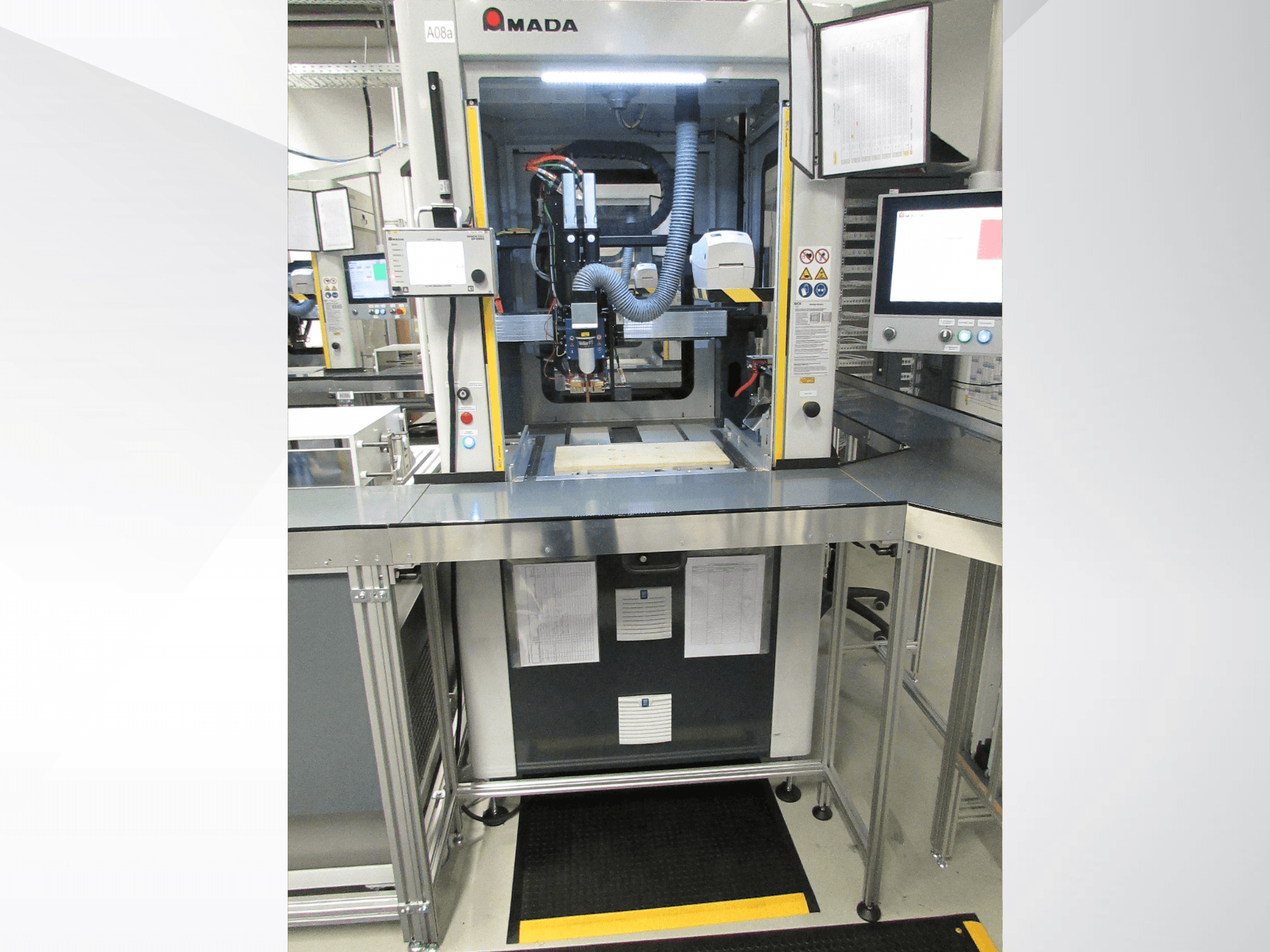

AMADA Jupiter Advanced Battery Pack Welder (2021)
General
Model: Jupiter Advanced Battery Pack Welder
Condition: Very Good / Well Maintained
Machine Dimensions: 1,200 × 1,200 × 2,300 mm
PLC Controlled System
ISQ / MNC Welding Controller
Machine Type
Automated Micro Resistance Welding System
Battery Pack / Battery Module Welding System
Welding Technology
Micro Resistance Welding
Frequency: 10 kHz
Working Area
Workspace: 624 × 550 mm
Welding Area (max.): 540 × 450 mm
Vision Area (max.): 540 × 450 mm
Performance
Welding Cycle Time: 1.8 sec (weld point to weld point)
Vision Inspection Time: 1.2 sec (vision point to vision point)
Operating Hours: range of 5,000–40,000 h
Electrical Data
Power Supply: 400 VAC
Main Fuse: 40 A
Power Consumption: 2 kVA
Pneumatics
Compressed Air Requirement: 6 bar clean dry air
Optional Equipment, not included
Robot Loading System
Vision System
SQL Database Traceability
Electrode Holders
Spare Electrodes
Optional Robot Loading System
General
Application: Automatic Loading / Unloading of Battery Packs
Integration: AMADA Jupiter Welding System
Robot Loading Machine 25
Equipment
Automatic Part Handling
Integrated Vision Inspection
Integrated Welding Process

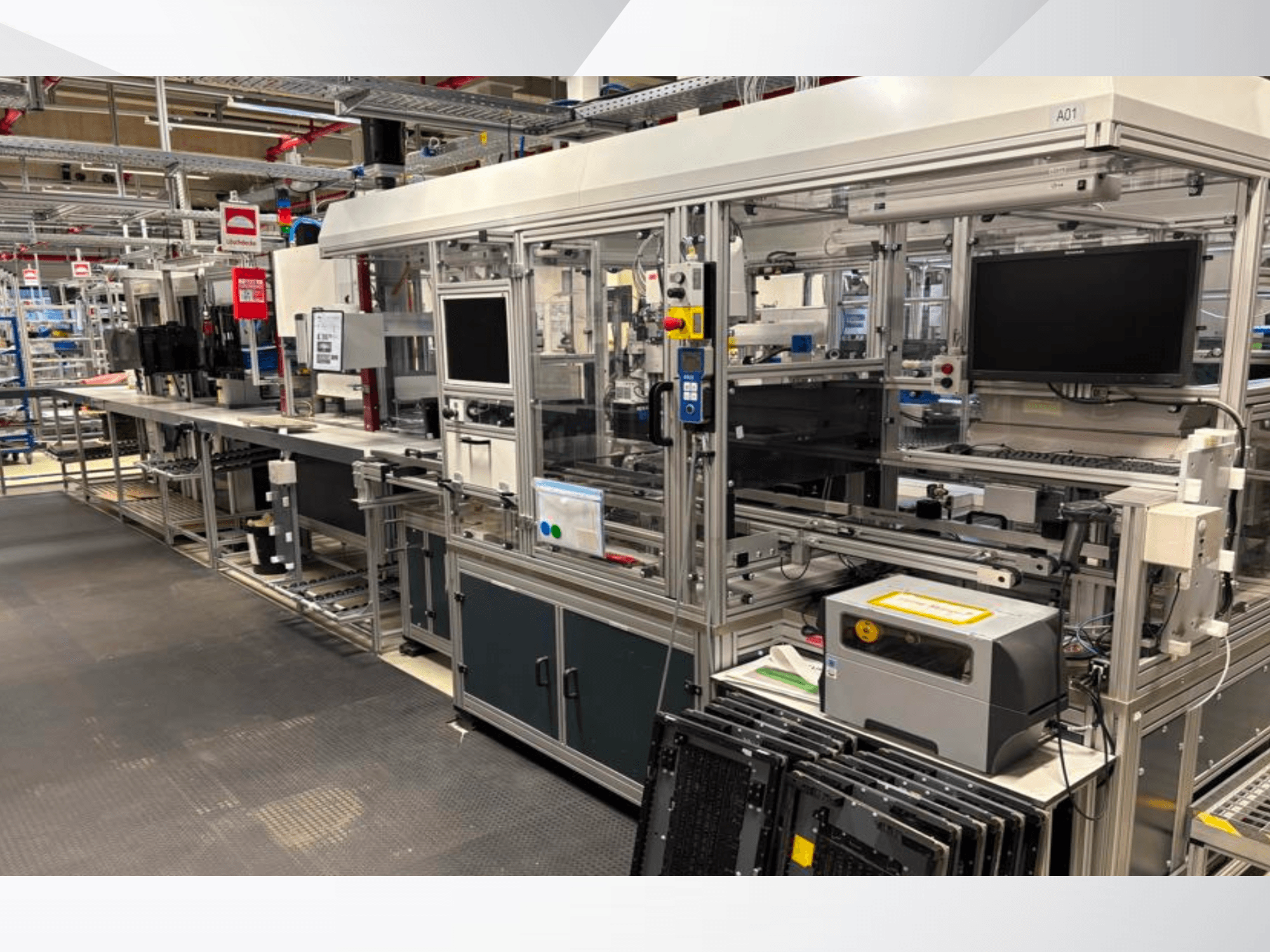

Optional: 3x ASIC Robotics Steckautomat V (2022), price on request
General
Manufacturer: ASIC Robotics AG
Application
Automatic insertion / assembly of battery cells
Suitable for 18650 cells
Suitable for 21700 cells
Compatible Cell Holder Types
Senec V2
StreetScooter V6
Ocado
Lightyear
Performance
1 × 4 cells simultaneously: approx. 1.0 sec/cell
2 × 2 cells simultaneously: approx. 1.0 sec/cell
4 × 1 cell: approx. 1.3 sec/cell
Technical efficiency: 95%
Electrical Data
Voltage: 3 × 400 / 230 VAC
Frequency: 50 Hz
Fuse Protection: 25 A
Supply Cable: 6 mm²
Pneumatics
Operating Pressure: 6–10 bar
Air Connection: Ø14 plug connection
Air Quality: Dry and oil-free
Dimensions
Machine Height ASIC Roboter incl. Signal Tower: 2,720 mm
Weight
Approx. 2,100 kg
Environmental Conditions
Ambient Temperature: +5 °C to +40 °C
Relative Humidity: 45–85% non-condensing
Noise Emission
Average Noise Level: 75 dB(A)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
