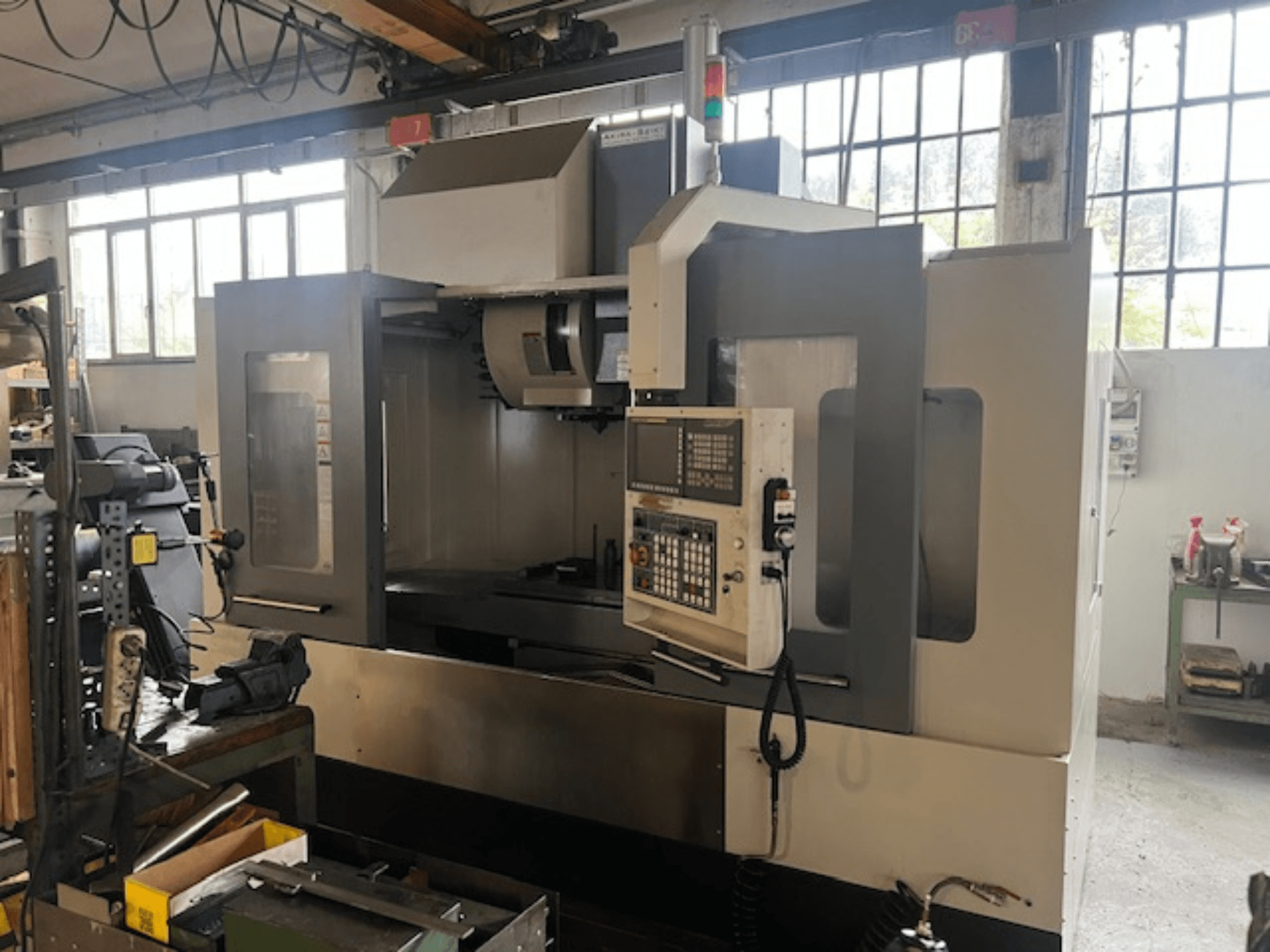

This 3-axis Akira Seiki 5.5 was manufactured in 2020. It features a robust Fanuc 0i CNC control, with travel dimensions of 1350x640x660 mm and a spindle speed of 12,000 rpm. The machine includes a 28-tool magazine and a 4th-5th axis rotary table by TJR. Ideal for precision machining with its rapid traverse rates up to 30 m/min and a high-pressure coolant system at 20 bar. Contact us for more information about this machine.
Overview
- brand: Akira Seiki
- year: 2020
- MODEL: 5.5
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - Akira Seiki 5.5
Dimensions
- Machine Depth: 3870 mm
- Machine Height: 3000 mm
- Machine Weight: 8440 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1350 mm
- Y-axis Travel: 640 mm
- Z-axis Travel: 660 mm
Technical Specification
- Max. Tool Weight: 7 kg
- Spindle Speed: 12000 RPM
- Taper Size: ISO 40
Additional Information
spindle-to-table 100–760 mm
working feed 5–10,000 mm/min
Table: 1,500 × 600 mm
Tool magazine: 28 tools, tool change 2.2 s
Coolant system: High-pressure coolant 20 bar
Other: Availability ready for delivery (subject to prior sale); warranty not provided; installation to be evaluated; transportation and insurance to be evaluated
Additional equipment
4th–5th axis rotary table: TJR
TJR control board (for rotary table)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
